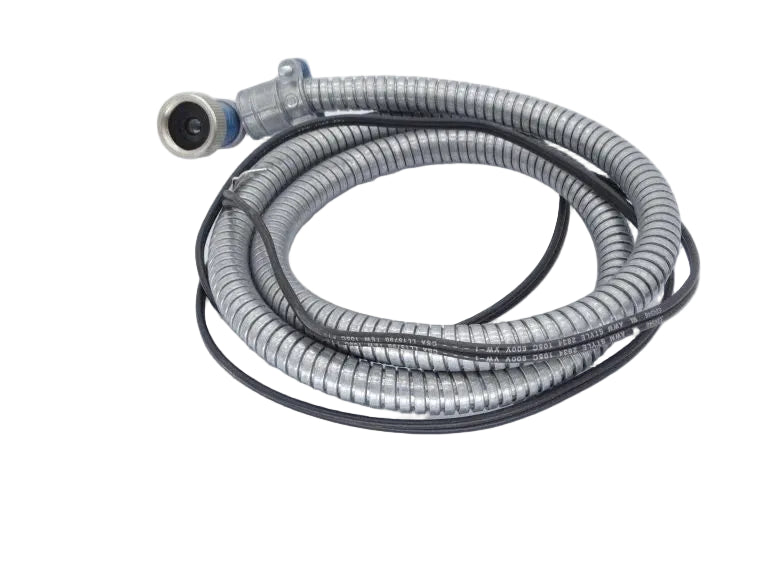

Fireye UV8A 90° UV Flame Scanner 1/2 NPT with 6 ft Lead
- Regular price
- $455.00
- Sale price
- $455.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: UV8A
Description

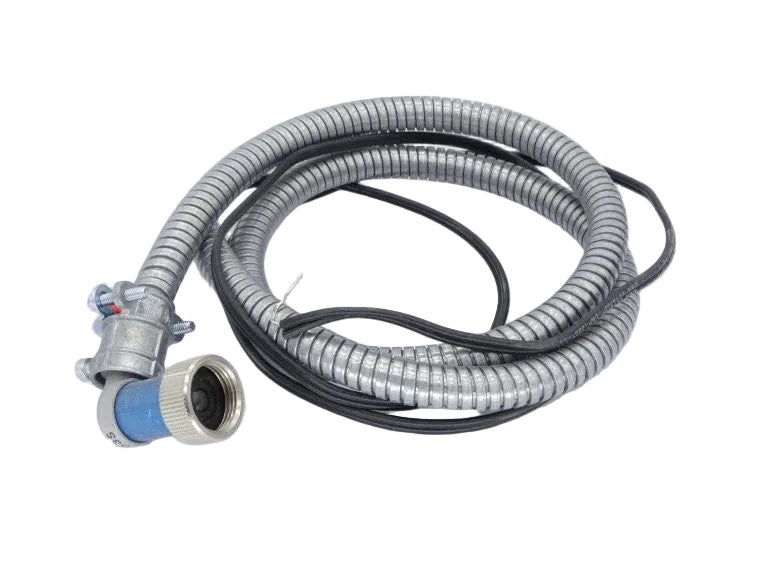

The Fireye UV8A is a 90° right-angle ultraviolet flame scanner designed for reliable flame detection in industrial and commercial burner systems. It features a 1/2-inch NPT connection and 72-inch (6-foot) unshielded lead wires for installation with compatible Fireye burner management controls. The scanner is suitable for gas, oil, and coal-fired burners.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fireye |
| Category | Control Panels, Modules |
| Part Number | UV8A |
| Subcategory | Flame Scanners |
| Detection Type | Ultraviolet (UV) |
| Head Angle | 90° Right Angle |
| Connection Type | Screwed Integral Collar |
| Connection Size | 1/2 NPT |
| Lead Type | Unshielded |
| Operating Voltage | 120 V |
| Temperature Range | -40°F to 200°F (-40°C to 94°C) |
| Compatible Controls | M-Series, M-Series II, MicroM, FlameWorx, MB-2, D-Series, FLAME-MONITOR, BurnerLogix, Nexus |
| Fuel Compatibility | Gas, Oil, Coal |
| Dimensions | 3.75 × 1.90 × 1.90 in |
| Weight | 1 lb |
Information About UV8A
The UV8A is designed for use with Fireye M-Series, M-Series II, MicroM, FlameWorx, MB-2, and D-Series controls, as well as FLAME-MONITOR, BurnerLogix, and Nexus systems. Its ultraviolet sensing technology provides flame detection for burner management and safety applications. The 90° right-angle head allows the scanner to be positioned appropriately for flame viewing in confined burner installations. The unit operates across a temperature range of -40°F to 200°F (-40°C to 94°C).
Key Features:
- Ultraviolet Detection: Uses UV sensing technology for reliable flame monitoring.
- Head Configuration: Features a 90° right-angle design for flexible installation.
- Connection Size: Uses a 1/2-inch NPT connection.
- Lead Length: Supplied with 72-inch (6-foot) unshielded lead wires.
- Burner Compatibility: Designed for gas, oil, and coal-fired burners.
- Control Compatibility: Works with multiple Fireye burner management control systems.
- Temperature Range: Rated for operation from -40°F to 200°F (-40°C to 94°C).
- Installation: Features a screwed integral collar for connection to the burner system.
The UV8A delivers the reliability and precision required for ultraviolet flame detection and burner monitoring applications.
Description
The Fireye UV8A is a 90° right-angle ultraviolet flame scanner designed for reliable flame detection in industrial and commercial burner systems. It features a 1/2-inch NPT connection and 72-inch (6-foot) unshielded lead wires for installation with compatible Fireye burner management controls. The scanner is suitable for gas, oil, and coal-fired burners.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fireye |
| Category | Control Panels, Modules |
| Part Number | UV8A |
| Subcategory | Flame Scanners |
| Detection Type | Ultraviolet (UV) |
| Head Angle | 90° Right Angle |
| Connection Type | Screwed Integral Collar |
| Connection Size | 1/2 NPT |
| Lead Type | Unshielded |
| Operating Voltage | 120 V |
| Temperature Range | -40°F to 200°F (-40°C to 94°C) |
| Compatible Controls | M-Series, M-Series II, MicroM, FlameWorx, MB-2, D-Series, FLAME-MONITOR, BurnerLogix, Nexus |
| Fuel Compatibility | Gas, Oil, Coal |
| Dimensions | 3.75 × 1.90 × 1.90 in |
| Weight | 1 lb |
Information About UV8A
The UV8A is designed for use with Fireye M-Series, M-Series II, MicroM, FlameWorx, MB-2, and D-Series controls, as well as FLAME-MONITOR, BurnerLogix, and Nexus systems. Its ultraviolet sensing technology provides flame detection for burner management and safety applications. The 90° right-angle head allows the scanner to be positioned appropriately for flame viewing in confined burner installations. The unit operates across a temperature range of -40°F to 200°F (-40°C to 94°C).
Key Features:
- Ultraviolet Detection: Uses UV sensing technology for reliable flame monitoring.
- Head Configuration: Features a 90° right-angle design for flexible installation.
- Connection Size: Uses a 1/2-inch NPT connection.
- Lead Length: Supplied with 72-inch (6-foot) unshielded lead wires.
- Burner Compatibility: Designed for gas, oil, and coal-fired burners.
- Control Compatibility: Works with multiple Fireye burner management control systems.
- Temperature Range: Rated for operation from -40°F to 200°F (-40°C to 94°C).
- Installation: Features a screwed integral collar for connection to the burner system.
The UV8A delivers the reliability and precision required for ultraviolet flame detection and burner monitoring applications.
