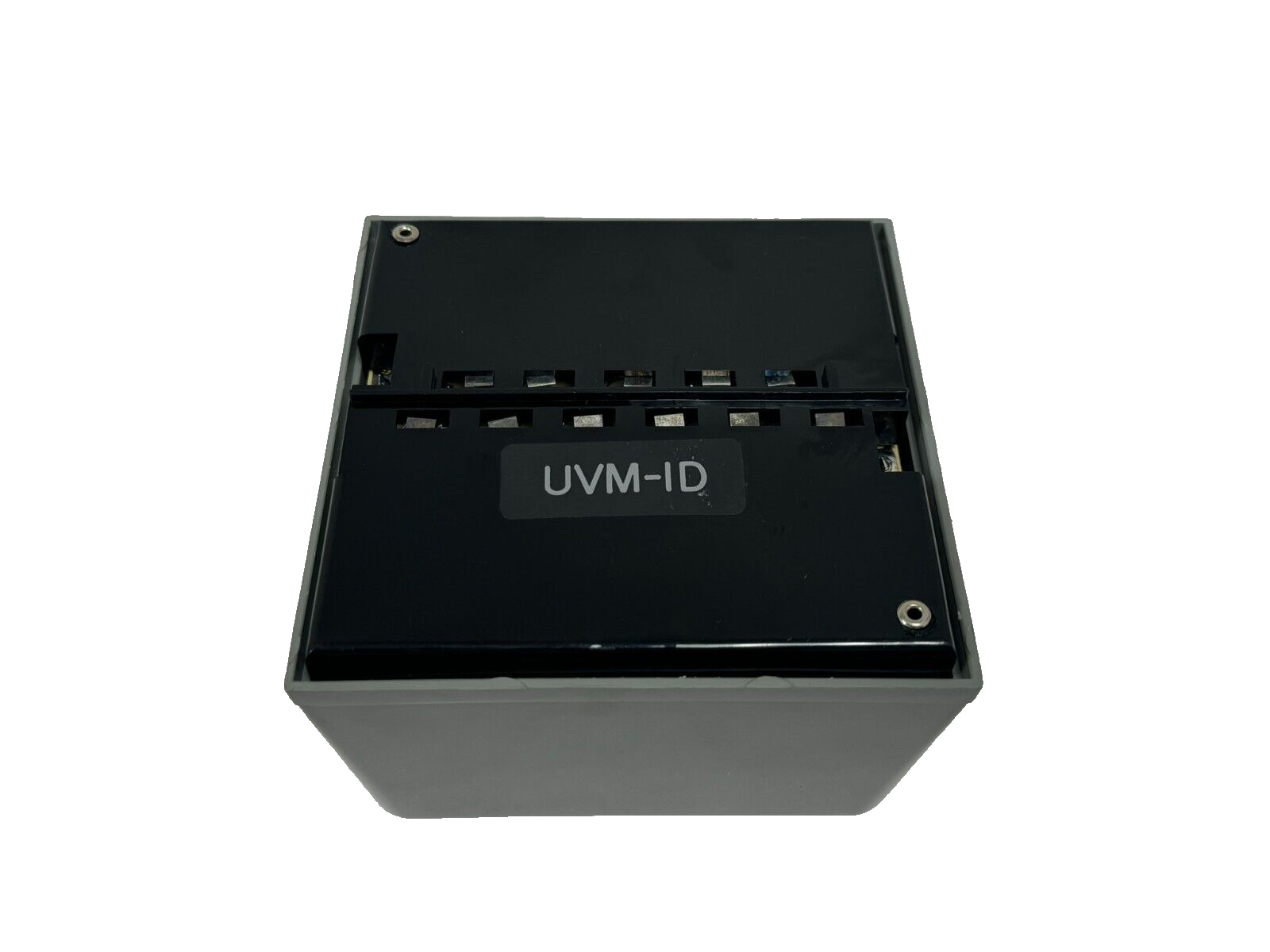

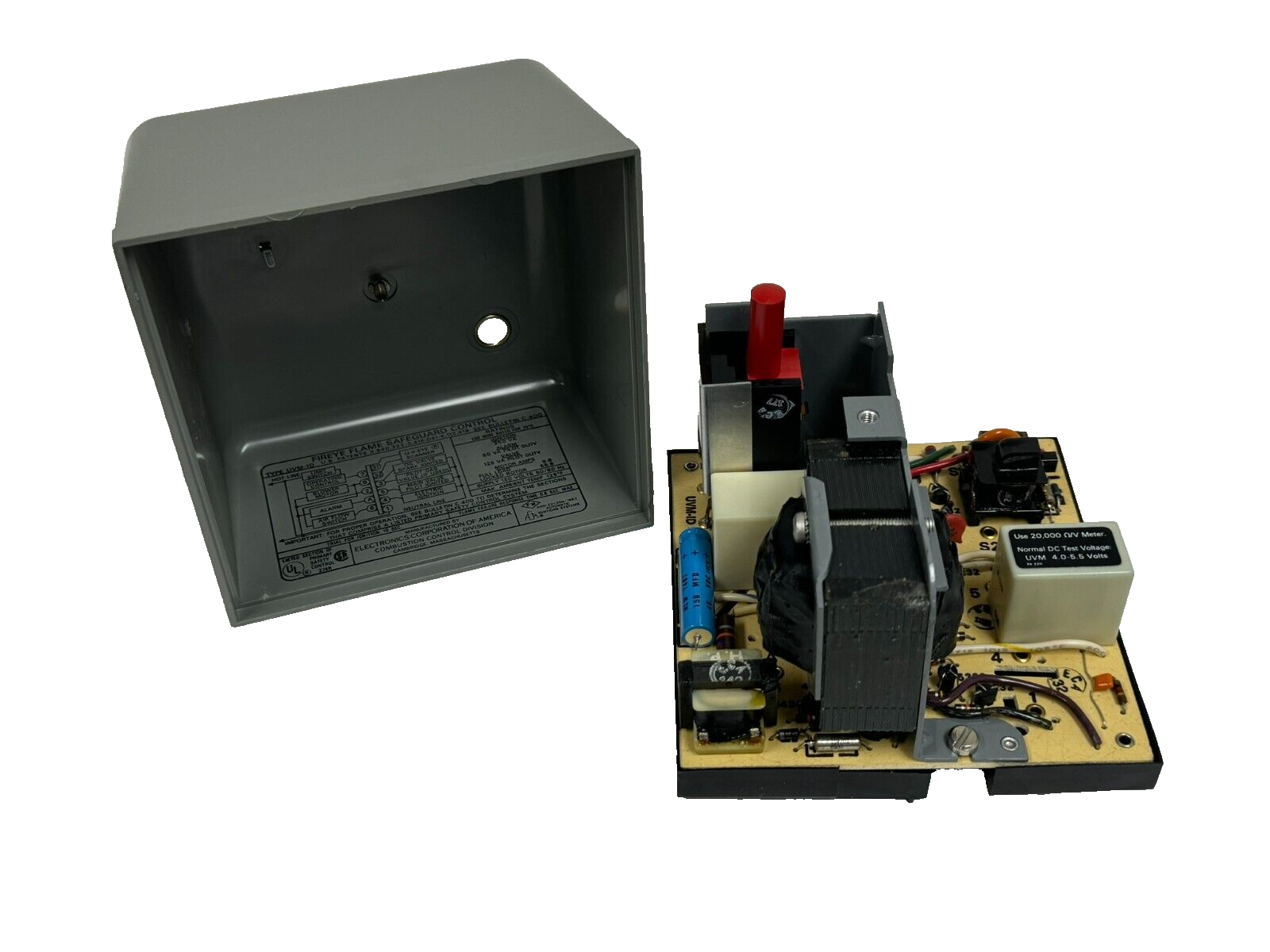

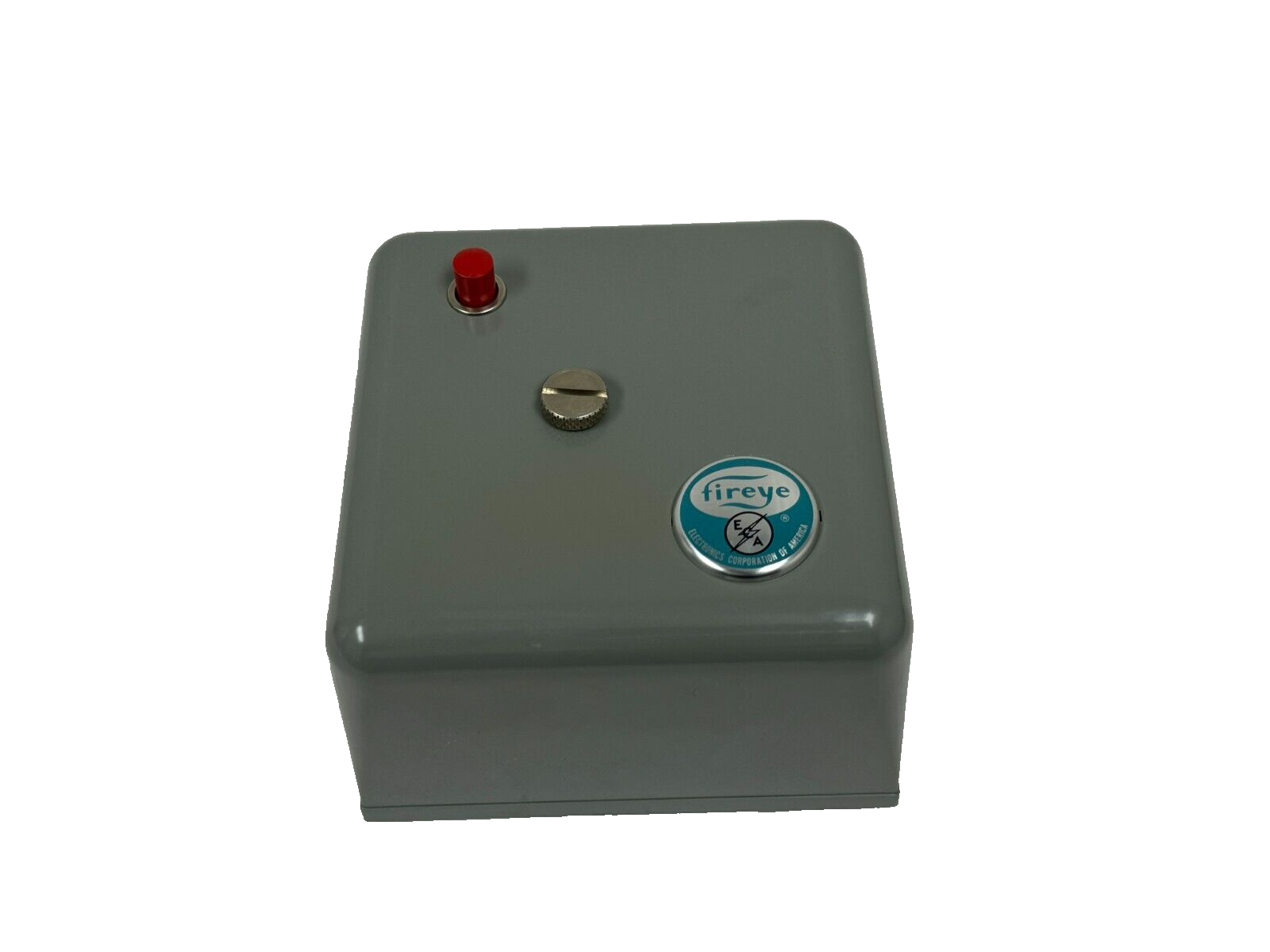

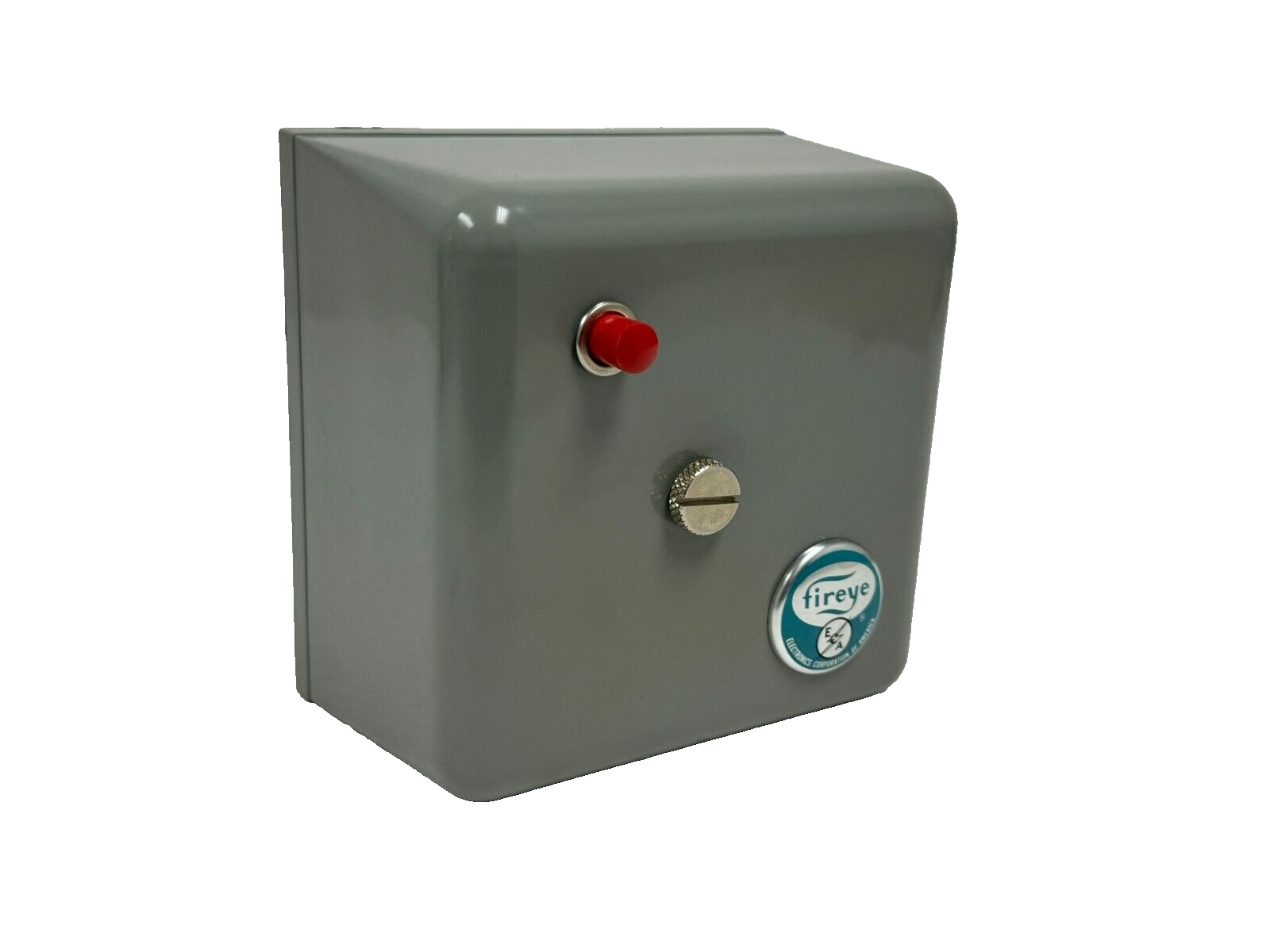

Fireye UVM-ID UVM Series 120 VAC Ultraviolet Flame Safeguard Control and Amplifier
- Regular price
- $882.00
- Sale price
- $882.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: UVM-ID
Description
The Fireye UVM-ID is a legacy ultraviolet flame safeguard control designed to supervise burner flame presence and provide automatic safety response when an acceptable flame signal is not detected. Fireye part number UVM-ID operates from a 120 VAC, 50/60 Hz supply and combines UV flame-signal amplification with burner safety control functions for industrial and commercial combustion equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fireye |
| Category | Combustion Controls |
| Part Number | UVM-ID |
| Subcategory | Flame Safeguard Controls |
| Series | Fireye UVM Series |
| Product Type | Ultraviolet Flame Safeguard Control |
| Control Technology | Solid-State Electronic |
| Flame Detection Method | Ultraviolet (UV) |
| Supply Voltage | 120 VAC |
| Supply Frequency | 50/60 Hz |
| Normal Flame Test Voltage | Approx. 4.0–5.5 VDC |
| Test Meter Requirement | 20,000 Ohms/Volt Meter |
| Primary Function | Burner Flame Supervision and Flame Failure Protection |
| Control Application | Automatic Burner Safety Control |
| Installation Type | Wiring Base / Chassis Mounted |
| Typical Equipment | Boilers, Furnaces, Ovens, Process Heaters, Industrial Burners |
| Replacement Platform | Fireye MicroM configurations available for many legacy UVM applications |
| Weight | Approx. 2 lb |
Information About UVM-ID
The UVM-ID is part of Fireye’s legacy UVM Series of ultraviolet flame safeguard controls used on automatically fired burner systems. Its solid-state electronic design processes the signal from a compatible ultraviolet flame detector and supervises burner operation through ignition, flame establishment, and normal firing conditions. The UVM-ID uses the traditional Fireye UVM/M-Series wiring-base architecture, and later Fireye MicroM configurations were developed to replace many UVM installations with little or no field rewiring. It is commonly encountered in legacy boilers, furnaces, ovens, process heaters, and packaged burner systems where maintaining compatibility with existing Fireye wiring and combustion-control equipment is important.
Key Features:
- Ultraviolet Flame Supervision: Processes signals from a compatible UV flame detector to establish burner flame presence.
- Solid-State Electronics: Uses electronic flame-signal processing rather than older electromechanical flame detection circuitry.
- 120 VAC Operation: Designed for standard 120 VAC combustion-control power systems.
- 50/60 Hz Compatibility: Supports installations operating from either 50 Hz or 60 Hz AC supplies.
- Flame Failure Protection: Initiates the configured burner safety response when an acceptable flame signal is lost.
- Burner Sequencing Support: Integrates flame verification with the associated burner ignition and fuel-control sequence.
- Flame Signal Test Capability: Provides a DC test signal that can be measured during setup and troubleshooting.
- 4.0–5.5 VDC Normal Test Range: Typical UVM test voltage for an established flame is approximately 4.0 to 5.5 VDC when measured with the specified meter.
- Legacy UVM Platform: Designed for established Fireye UVM flame safeguard installations and replacement applications.
- Wiring Base Compatibility: Uses the Fireye wiring-base arrangement later shared with various M-Series II and MicroM configurations.
- Industrial Burner Application: Suitable for compatible gas and oil combustion equipment requiring automatic flame supervision.
- Service Replacement Use: Frequently used to maintain existing legacy burner installations without completely redesigning the flame safeguard wiring.
The UVM-ID delivers the reliability and precision required for ultraviolet flame supervision and flame-failure protection in compatible legacy burner control systems.
