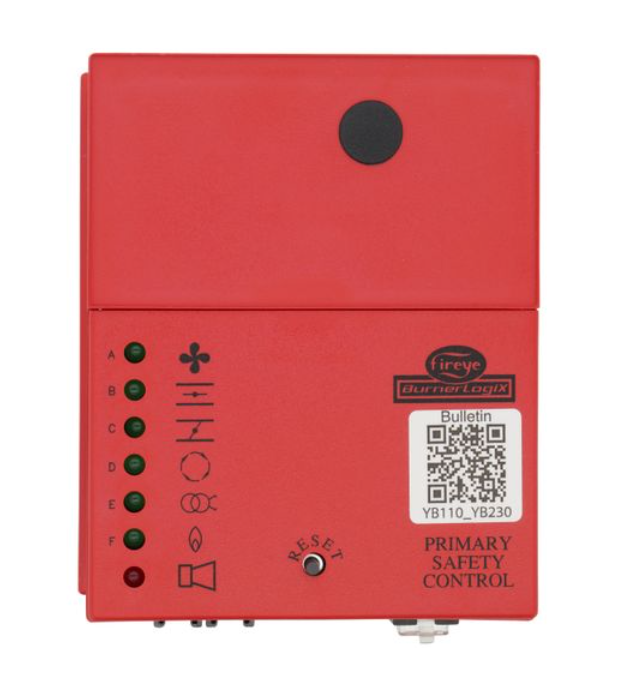

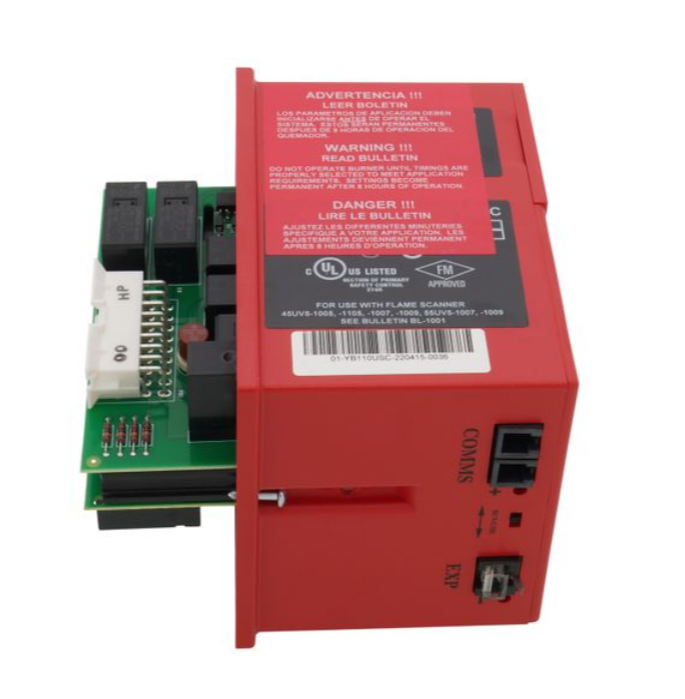

Fireye YB110UVSC BurnerLogix Ultra-Violet Self-Check Flame Amplifier Module 120V
- Regular price
- $2,399.00
- Sale price
- $2,399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: YB110UVSC
Description
The Fireye YB110UVSC is a BurnerLogix chassis and flame amplifier module designed for burner management systems requiring ultraviolet self-check flame monitoring. It operates from a 120 VAC supply and interfaces with compatible self-check UV scanners to provide continuous flame supervision for automatically fired burners.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fireye |
| Category | Burner Controls |
| Part Number | YB110UVSC |
| Subcategory | Flame Amplifier Modules |
| Product Type | Chassis / Flame Amplifier Module |
| Series | BurnerLogix Y |
| Amplifier Type | UV Self-Check |
| Input Voltage | 120 VAC |
| Frequency | 50/60 Hz |
| Power Consumption | 25 VA |
| Flame Detection Type | Ultraviolet |
| Scanner Type | Self-Check UV |
| Compatible Scanner Series | Fireye 55UV5 Self-Check UV |
| Operating Temperature | -40°F to 140°F (-40°C to 60°C) |
| Protection Category | NEMA 1 / IP01 control |
| Approvals | UL/cUL, FM |
| Dimensions | 4.00 × 5.00 × 2.12 in |
| Weight | 3.2 lb |
Information About YB110UVSC

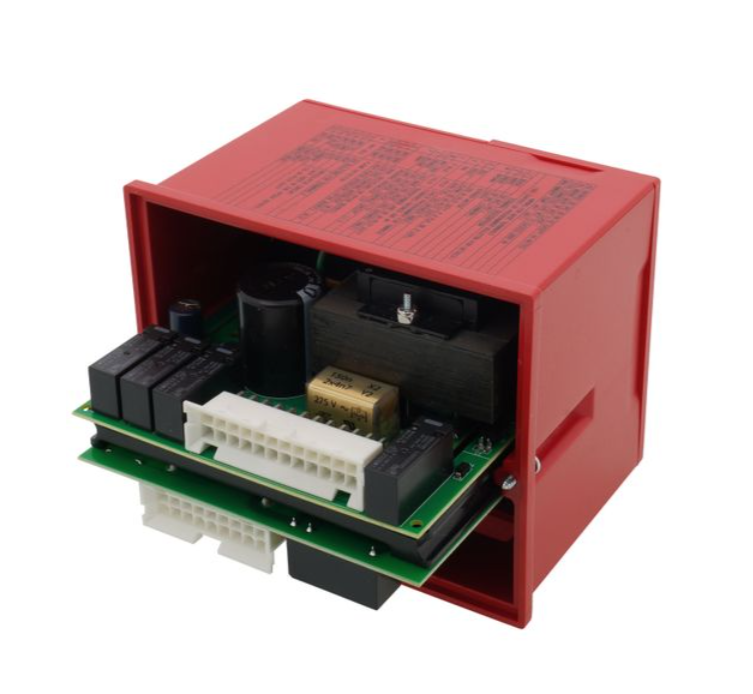

The YB110UVSC is a BurnerLogix Y-series chassis/flame amplifier module incorporating a UV self-check amplifier for combustion safety applications. It forms part of Fireye’s microprocessor-based BurnerLogix burner management platform and accepts interchangeable programmer and display modules for application-specific control functions. The module is designed for use with compatible Fireye self-check ultraviolet scanners, including the 55UV5 series. Its architecture combines burner sequencing interfaces with flame-signal processing to support supervised operation of gas, oil, and combination-fuel burner systems.
Key Features:
- UV Self-Check Amplifier: Provides flame-signal processing for compatible self-check ultraviolet scanners.
- BurnerLogix Platform: Integrates with Fireye BurnerLogix Y burner management components.
- 120 VAC Operation: Designed for a nominal 120 VAC, 50/60 Hz input supply.
- Scanner Compatibility: Supports compatible Fireye self-check UV scanners such as the 55UV5-1009.
- Modular Configuration: Accepts compatible BurnerLogix programmer and optional display modules.
- Burner Management Integration: Supports flame supervision as part of automatic burner sequencing and safety control.
- Industrial Temperature Range: BurnerLogix YB110 controls are specified for operation from -40°F to 140°F (-40°C to 60°C).
- Safety Approvals: The BurnerLogix Y platform carries applicable UL/cUL and FM approvals.
The YB110UVSC delivers the reliability and precision required for self-check ultraviolet flame monitoring and burner safety control applications.
