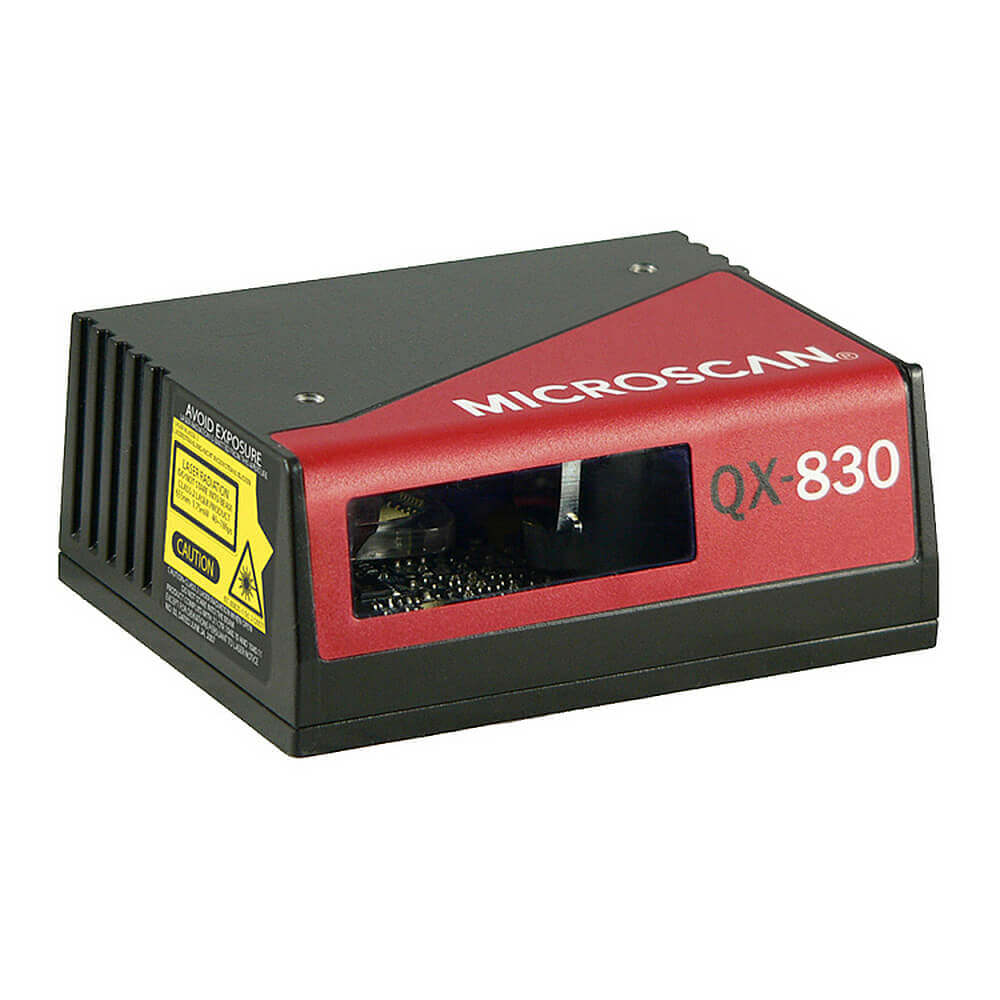

FIS-0830-1004G | Omron QX-830 Industrial Barcode Reader
- Regular price
- $2,611.00
- Sale price
- $2,611.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FIS-0830-1004G
Description
The Omron QX-830 FIS-0830-1004G is a rugged industrial barcode reader engineered for aggressive decoding performance. Featuring a raster laser scan pattern, this device excels in reading low-density linear barcodes with reliability in high-speed environments.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Omron |
| Category |
Bar Code Equipment
|
| Part Number | FIS-0830-1004G |
| Subcategory | Bar Code Scanner Industrial |
| Series | QX-830 |
| Scan Rate | 300–1400 scans/sec |
| Scan Pattern | 10-line raster |
| Read Range | Up to 30" (762 mm) |
| Resolution (min bar width) | 0.127 mm (5 mil) |
| Laser Type | Class 2, 655 nm visible laser |
| Communication Interfaces | RS-232/422/485, Ethernet (optional) |
| Input Voltage | 10–28 VDC |
| Power Consumption | 7.5 W max |
| Enclosure Rating | IP54 |
| Operating Temperature | 0°C to 50°C |
| Humidity | 10% to 90% (non-condensing) |
| Mounting Connectors | M12 12-pin |
| Certifications | CE, RoHS, EN 60825-1, IEC 60529 |
| Dimensions | 2.59" x 3.87" x 1.38" (66 x 98 x 35 mm) |
| Weight | 7.5 oz (212 g) |
Information About FIS-0830-1004G
The FIS-0830-1004G is part of the QX-830 series, designed to simplify industrial barcode reading with flexible connectivity and powerful decoding algorithms. It supports both serial and Ethernet communication, and its compact IP54-rated enclosure makes it suitable for demanding conditions. The device is capable of reading barcodes up to 30 inches (762 mm) away and supports scan rates from 300 to 1400 scans per second.
Equipped with the Quick Connect System and X-Mode Technology, the QX-830 ensures effortless setup and high-speed, accurate barcode reading even on damaged or poorly printed codes. The device includes visible performance LEDs, ESP software support, and a wide range of industrial protocol compatibility for streamlined integration.
Key Features:
- Laser Scanner with Rastered Beam: Offers 10-line raster or optional mirror image for wider coverage of low-density codes.
- Multi-Protocol Support: Includes RS-232/422/485 serial interfaces and optional embedded Ethernet TCP/IP and EtherNet/IP.
- Flexible Mounting Options: Designed with M12 connectors and compact form factor (66 mm depth), making it easy to install in tight industrial spaces.
- Industrial IP54 Sealed Enclosure: Resistant to dust and water spray, ensuring durability in rugged environments.
- High Scan Rate: Adjustable from 300 to 1400 scans/sec, ideal for fast-moving product lines.
- LED Feedback Indicators: Real-time green flash LEDs provide instant visual confirmation of good reads.
- Wide Voltage Support: Operates on 10–28 VDC input, drawing a maximum of 7.5W.
- Application Versatility: Compatible with packaging systems, conveyors, electronics production, and embedded machinery.
The FIS-0830-1004G delivers exceptional performance in barcode reading across low-density, fast-paced industrial applications. The combination of Ethernet communication, high decoding speed, and rugged build makes it a dependable tool for automation.
