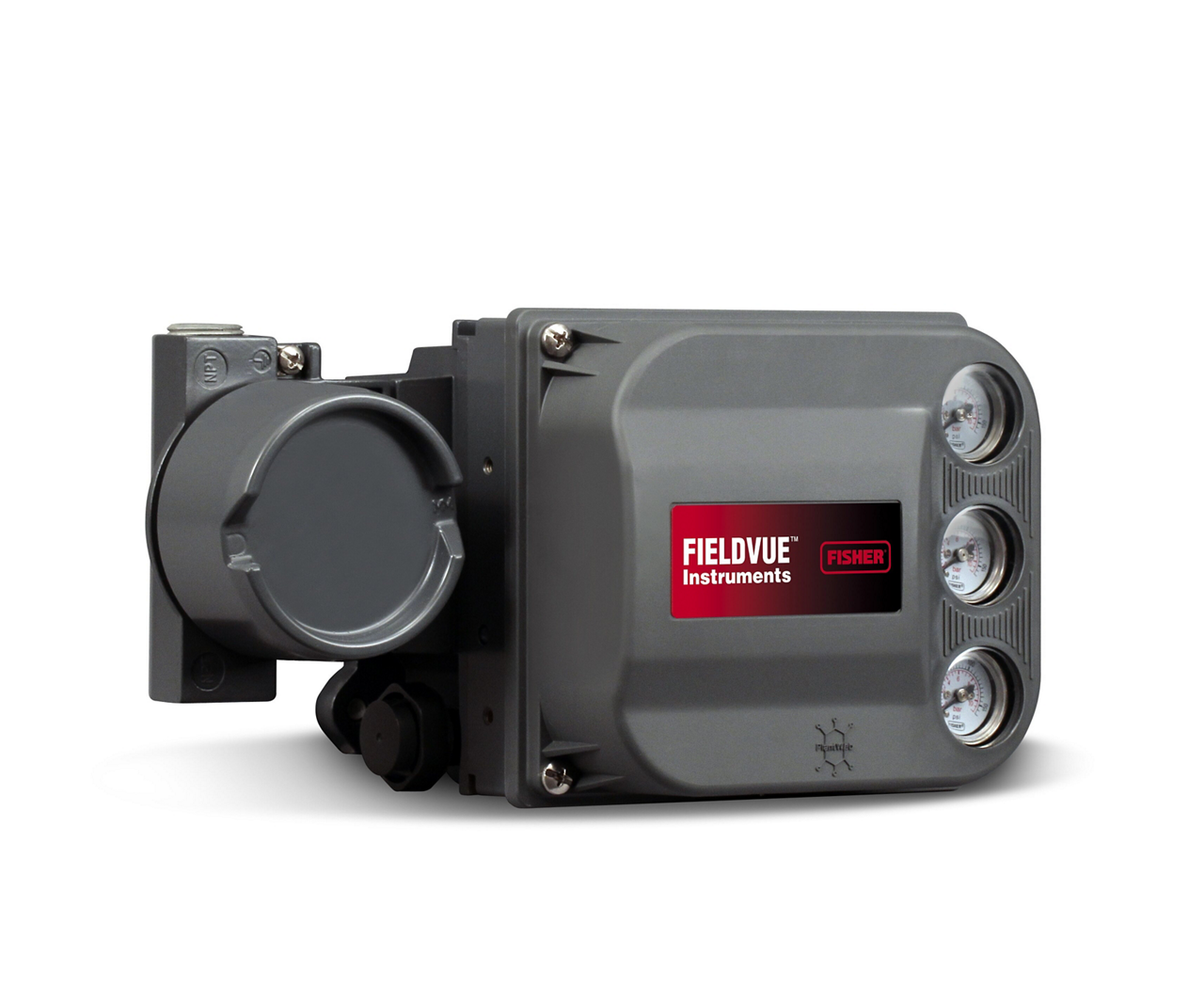

Fisher DVC6200 FIELDVUE Digital Valve Controller with HART Communication
- Regular price
- $799.00
- Sale price
- $799.00
- Regular price
-
Couldn't load pickup availability

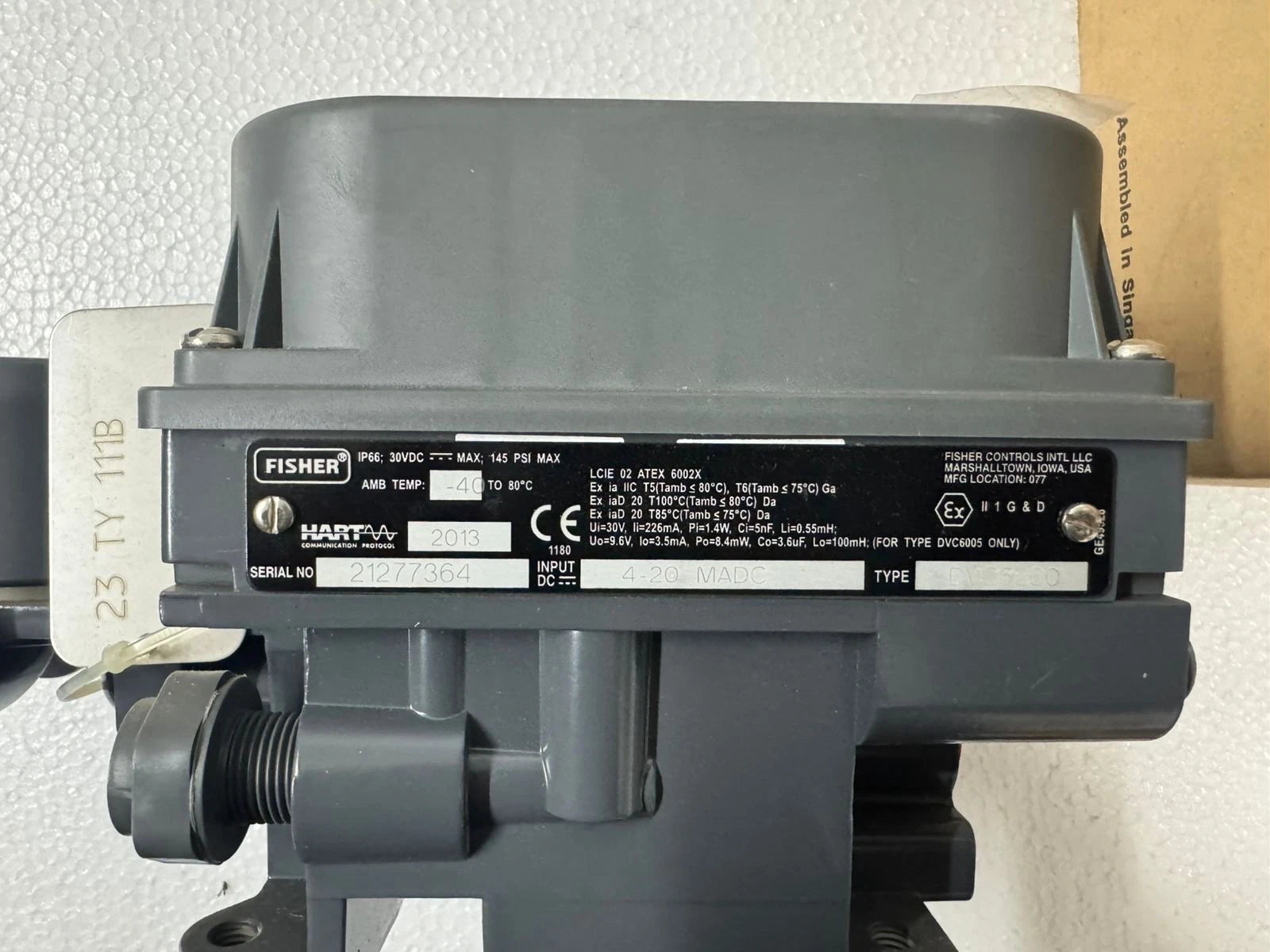

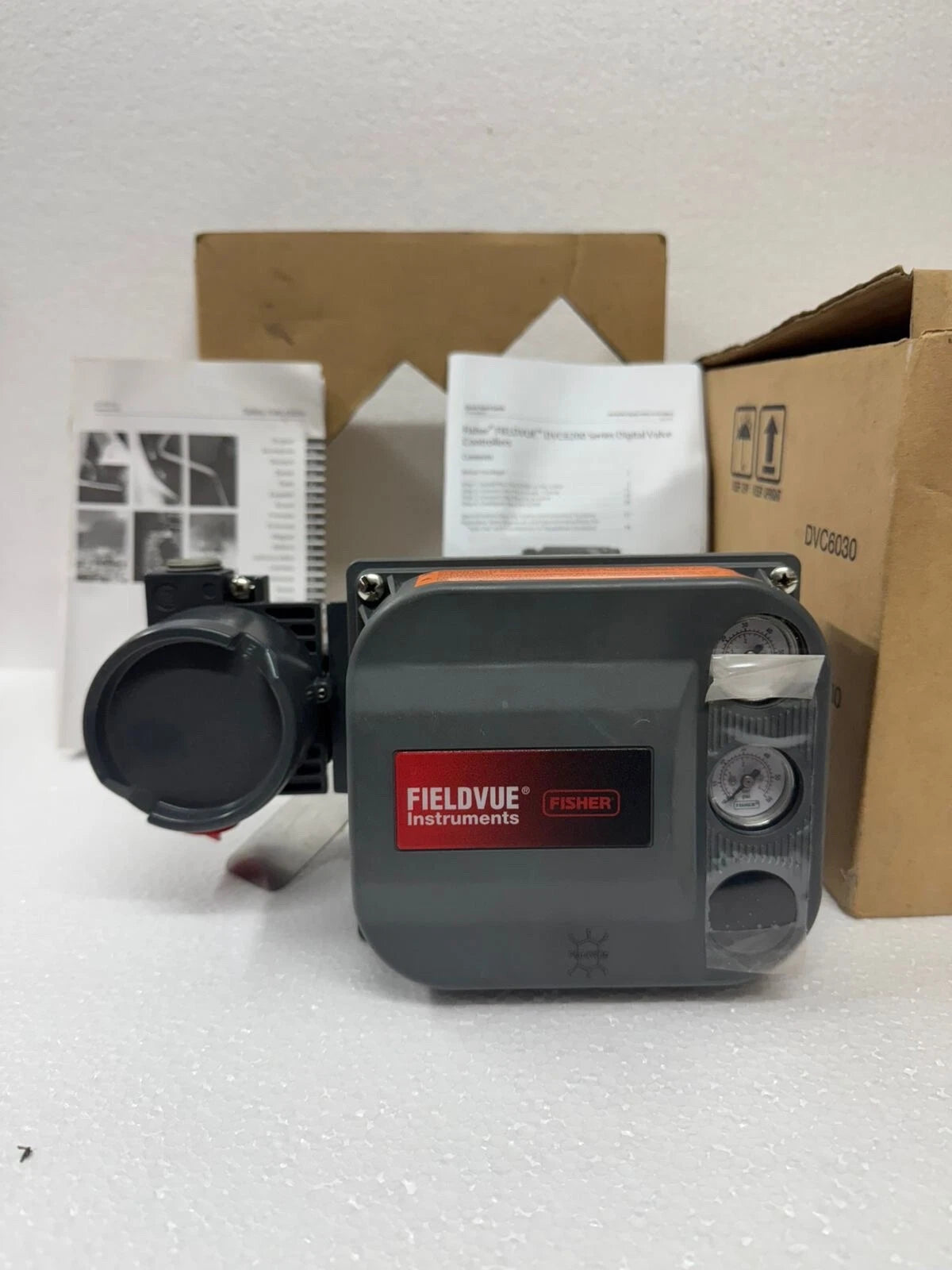

Product Description P/N: DVC6200
Description
The Fisher DVC6200 Digital Valve Controller is a microprocessor-based valve positioner designed to provide accurate control of pneumatic control valves in industrial process applications. The Fisher DVC6200 combines HART communication, advanced diagnostics, and precise valve positioning to improve process stability, equipment reliability, and maintenance efficiency. It is widely used in oil and gas, chemical, power generation, water treatment, and other continuous process industries.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fisher |
| Category | Valves |
| Part Number | DVC6200 |
| Subcategory | Digital Valve Controller |
| Product Family | FIELDVUE™ |
| Product Type | Digital Valve Controller |
| Communication Protocol | 4–20 mA HART |
| Input Signal | Electric |
| Data Interface | Wired |
| Diagnostics | Integrated Valve Performance Diagnostics |
| Maximum Outlet Pressure | 145 psig |
| Mounting Type | Integral Mounted |
| Position Control | Throttling Control and On/Off Control |
| Supply Media | Air, Natural Gas, Nitrogen |
| Operating Temperature | Standard Temperature and High Temperature Configurations |
| Area Classifications | Explosion Proof, Intrinsically Safe, FISCO, Type N, Flame Proof, Non-incendive |
| Major Certifications | CSA, FM, ATEX, IECEx, CUTR, INMETRO, NEPSI, TIIS, KGS, PESO, Natural Gas Certified |
| Marine Approvals | Lloyd's Register, Bureau Veritas, DNV, ABS |
| Weight | Approximately 3.0 kg |
Information About DVC6200
The DVC6200 is part of the Fisher FIELDVUE™ family of digital valve controllers developed by Emerson for intelligent process control systems. It converts a standard 4–20 mA control signal into a proportional pneumatic output while continuously monitoring valve travel, actuator performance, and operating conditions using a linkage-less feedback system. The controller supports HART communication for remote configuration, diagnostics, calibration, and predictive maintenance through ValveLink™ software, AMS Device Manager, or compatible control systems. Its rugged encapsulated electronics, modular construction, and extensive hazardous area certifications make it suitable for severe industrial environments and safety-critical applications.
Key Features:
- Linkage-Less Feedback System: Eliminates mechanical contact to reduce wear and extend service life.
- HART Communication: Supports remote configuration, diagnostics, calibration, and asset management.
- Advanced Valve Diagnostics: Continuously monitors valve condition and identifies performance issues before failure.
- Modular Construction: Allows critical components to be replaced without disconnecting field wiring or pneumatic tubing.
- Encapsulated Electronics: Resists vibration, moisture, temperature changes, and corrosive industrial environments.
- Precise Position Control: Delivers rapid response to large setpoint changes while maintaining excellent accuracy for fine adjustments.
- Broad Hazardous Area Certifications: Certified for multiple international hazardous location standards and marine applications.
- Flexible Process Compatibility: Supports flow, pressure, temperature, and level control applications using air, nitrogen, or natural gas supply media.
The DVC6200 delivers the reliability and precision required for demanding industrial control valve positioning and process automation applications.
Description
The Fisher DVC6200 Digital Valve Controller is a microprocessor-based valve positioner designed to provide accurate control of pneumatic control valves in industrial process applications. The Fisher DVC6200 combines HART communication, advanced diagnostics, and precise valve positioning to improve process stability, equipment reliability, and maintenance efficiency. It is widely used in oil and gas, chemical, power generation, water treatment, and other continuous process industries.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fisher |
| Category | Valves |
| Part Number | DVC6200 |
| Subcategory | Digital Valve Controller |
| Product Family | FIELDVUE™ |
| Product Type | Digital Valve Controller |
| Communication Protocol | 4–20 mA HART |
| Input Signal | Electric |
| Data Interface | Wired |
| Diagnostics | Integrated Valve Performance Diagnostics |
| Maximum Outlet Pressure | 145 psig |
| Mounting Type | Integral Mounted |
| Position Control | Throttling Control and On/Off Control |
| Supply Media | Air, Natural Gas, Nitrogen |
| Operating Temperature | Standard Temperature and High Temperature Configurations |
| Area Classifications | Explosion Proof, Intrinsically Safe, FISCO, Type N, Flame Proof, Non-incendive |
| Major Certifications | CSA, FM, ATEX, IECEx, CUTR, INMETRO, NEPSI, TIIS, KGS, PESO, Natural Gas Certified |
| Marine Approvals | Lloyd's Register, Bureau Veritas, DNV, ABS |
| Weight | Approximately 3.0 kg |
Information About DVC6200
The DVC6200 is part of the Fisher FIELDVUE™ family of digital valve controllers developed by Emerson for intelligent process control systems. It converts a standard 4–20 mA control signal into a proportional pneumatic output while continuously monitoring valve travel, actuator performance, and operating conditions using a linkage-less feedback system. The controller supports HART communication for remote configuration, diagnostics, calibration, and predictive maintenance through ValveLink™ software, AMS Device Manager, or compatible control systems. Its rugged encapsulated electronics, modular construction, and extensive hazardous area certifications make it suitable for severe industrial environments and safety-critical applications.
Key Features:
- Linkage-Less Feedback System: Eliminates mechanical contact to reduce wear and extend service life.
- HART Communication: Supports remote configuration, diagnostics, calibration, and asset management.
- Advanced Valve Diagnostics: Continuously monitors valve condition and identifies performance issues before failure.
- Modular Construction: Allows critical components to be replaced without disconnecting field wiring or pneumatic tubing.
- Encapsulated Electronics: Resists vibration, moisture, temperature changes, and corrosive industrial environments.
- Precise Position Control: Delivers rapid response to large setpoint changes while maintaining excellent accuracy for fine adjustments.
- Broad Hazardous Area Certifications: Certified for multiple international hazardous location standards and marine applications.
- Flexible Process Compatibility: Supports flow, pressure, temperature, and level control applications using air, nitrogen, or natural gas supply media.
The DVC6200 delivers the reliability and precision required for demanding industrial control valve positioning and process automation applications.
