Product Description P/N: FM221
Description

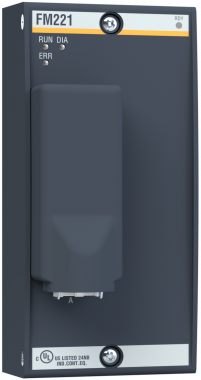

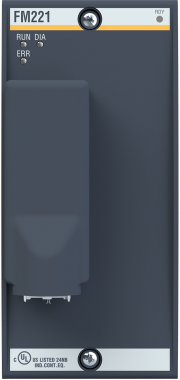

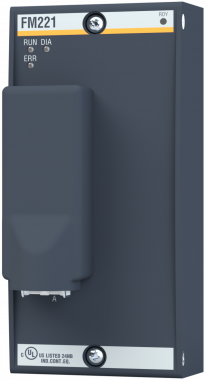

The Bachmann FM221 is a FASTBUS master module with fiber optic connectivity, enabling reliable long-distance communication (up to 2000 meters) in industrial automation systems. It features an LC connector for stable data transmission.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Bachmann |
| Category | Control Devices |
| Part Number | FM221 |
| Subcategory |
Control Units
|
| Weight | 0.675 kgs |
| Dimensions | 110 x 119 x 61 mm |
| Fiber Optic Port | 1x FO-port, 50/62.5 µm multi-mode fiber |
| Maximum Distance | Up to 2000 meters |
| Connector | LC connector |
| Power Supply | 18-34 VDC |
Information About FM221
The Bachmann FM221 is a FASTBUS master module designed to facilitate the distribution of substations over long distances with minimal signal delay. It features a single fiber optic port compatible with 50/62.5 µm multimode fiber, supporting communication distances of up to 2000 meters. The module utilizes an LC connector for reliable connections.
Key Features:
- FASTBUS Master Module: Enables efficient communication between distributed substations.
- Fiber Optic Connectivity: Equipped with one fiber optic port for high-speed data transmission.
- Long-Distance Communication: Supports distances up to 2000 meters via multimode fiber.
- Robust Connector: Utilizes an LC connector for secure and stable connections.
- Power Supply: Operates on a 18-34 VDC power supply.
- Dimensions: Measures 110 x 119 x 61 mm.
- Weight: Weighs 675 g.
