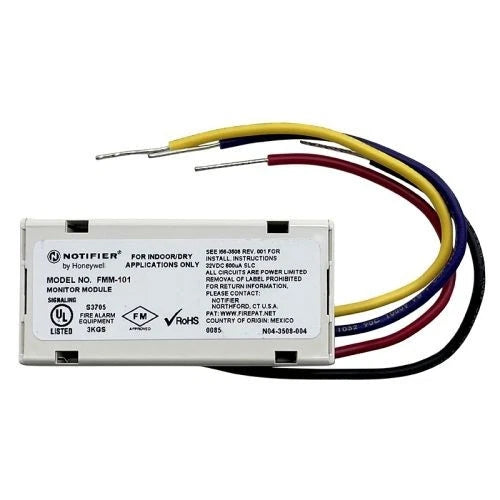

FMM-101 | Notifier FlashScan Addressable Mini Monitor Module, Dry-Contact Supervision
- Regular price
- $142.00
- Sale price
- $142.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: FMM-101
Description
The Notifier FMM-101 is a compact addressable monitor module designed for intelligent fire alarm systems. It supervises a Class B initiating circuit of normally open dry-contact devices and reports status changes to the control panel. With its miniature form factor, the FMM-101 is well-suited for installations requiring discreet or space-saving monitoring.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Notifier |
| Category | Data Control System |
| Part Number | FMM-101 |
| Subcategory | Monitor/Control |
| Device Type | Addressable Mini Monitor Module |
| Operating Voltage | 15–32 VDC |
| Standby Current | 350–375 µA (typical) |
| Alarm Current | Up to 600 µA |
| End-of-Line Resistor | 47K ohms |
| Max SLC Loop Resistance | 40 ohms |
| Max IDC Resistance | 1,500 ohms |
| Max IDC Voltage | 11 VDC |
| Max IDC Current | 450 µA |
| Temperature Range | 32°F to 120°F (0°C to 49°C) |
| Humidity Range | 10%–93% RH, non-condensing |
| Dimensions | 1.3 in H × 2.75 in W × 0.65 in D |
| Wire Leads | 6 in minimum |
| LED Indicators | Green (normal), Red (alarm) |
| Mounting | Single-gang junction box |
| Standards/Approvals | UL Listed, FM Approved, NFPA 72 Compliant |
| Weight | 0.13 lbs |
Information About FMM-101
The FMM-101 is part of Notifier’s FlashScan addressable device family, engineered to provide reliable supervision of initiating devices such as pull stations, waterflow switches, or security contacts. Its electronic addressing is set via rotary switches, enabling unique system identification. The module includes an integral bi-color LED for status indication, flashing during normal operation and steady red in alarm. Built to UL and NFPA standards, the FMM-101 integrates easily into compatible Notifier control panels, providing robust performance and straightforward installation inside a standard single-gang box.
Key Features:
- Compact Mini Module: Small footprint (1.3” × 2.75” × 0.65”) for discreet installation.
- Dry-Contact Supervision: Monitors a Class B IDC of normally open contact devices.
- Rotary Addressing: Unique electronic addressing via built-in rotary switches.
- LED Status Indication: Bi-color LED flashes during normal and latches red in alarm.
- Flexible Compatibility: Works with compatible Notifier intelligent fire alarm control panels.
- Reliable Operation: Continuously supervises wiring integrity and initiating devices.
- UL/FM/NFPA Compliant: Approved for use in commercial and institutional fire systems.
- Easy Installation: Fits directly in a standard single-gang junction box.
The FMM-101 delivers the accuracy, reliability, and compliance needed for professional fire alarm monitoring applications.
