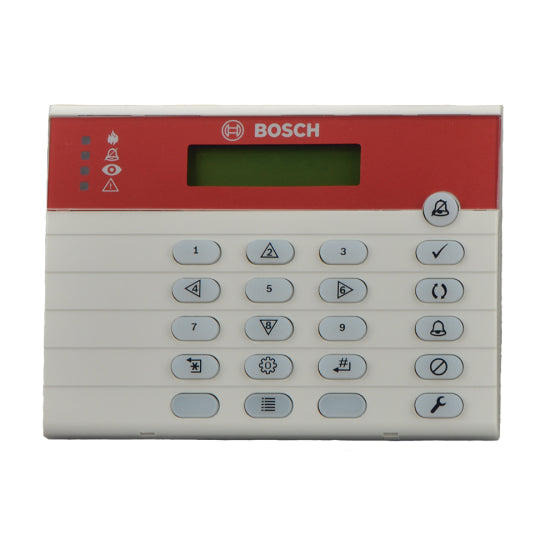

FMR-7033 | Bosch LCD Remote Annunciator/Controller for FPD-7024 Fire Alarm Panels
- Regular price
- $655.00
- Sale price
- $655.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FMR-7033
Description
The Bosch FMR-7033 is an LCD remote annunciator and controller designed for use with FPD-7024 fire alarm control panels. It mirrors the functionality of the panel’s built-in user interface and supports up to four connected keypads per system. The FMR-7033 enables remote system control, programming access, and event log viewing for enhanced fire system management.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Bosch Security System |
| Category | Controls & Indicators |
| Part Number | FMR-7033 |
| Subcategory | Indicator/Display |
| Current Consumption | 80–100 mA |
| Dimensions (H × W × D) | 120 × 160 × 30 mm |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 0–95% non-condensing |
| Display Type | LCD interface |
| Compatibility | FPD-7024 Fire Alarm Control Panels |
| Max Keypads per Panel | Up to 4 |
| Access Control | Passcode-protected operation |
| Application | Remote annunciation and system control |
Information About FMR-7033
The FMR-7033 is a remote keypad module engineered to provide annunciation and operational control for fire alarm systems using the Bosch FPD-7024 panel. Its LCD interface replicates the primary panel display, allowing users to perform local tests, initiate system commands, and access programming when authorized. The keypad includes passcode-protected functionality, making it suitable for public or semi-restricted areas where secure interaction is required. Typical applications include commercial buildings, schools, and industrial facilities that require distributed system access points for monitoring and control.
Key Features
- Full-function remote annunciator: Duplicates the built-in interface of the FPD-7024 panel.
- LCD display: Provides clear system status, events, and programming options.
- Multi-keypad support: Up to four FMR-7033 units can be connected to a single FACP.
- Secure access: Passcode protection restricts system control to authorized users.
- Event log access: Allows remote viewing of stored alarm and system events.
- System control functions: Supports programming, testing, and control operations.
- Suitable for public installation: Designed for secure deployment in accessible areas.
- Compact form factor: Provides easy mounting and integration into fire system installations.
The FMR-7033 delivers the reliability and precision required for remote annunciation and control in FPD-7024-based fire alarm systems.
Description
The Bosch FMR-7033 is an LCD remote annunciator and controller designed for use with FPD-7024 fire alarm control panels. It mirrors the functionality of the panel’s built-in user interface and supports up to four connected keypads per system. The FMR-7033 enables remote system control, programming access, and event log viewing for enhanced fire system management.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Bosch Security System |
| Category | Controls & Indicators |
| Part Number | FMR-7033 |
| Subcategory | Indicator/Display |
| Current Consumption | 80–100 mA |
| Dimensions (H × W × D) | 120 × 160 × 30 mm |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 0–95% non-condensing |
| Display Type | LCD interface |
| Compatibility | FPD-7024 Fire Alarm Control Panels |
| Max Keypads per Panel | Up to 4 |
| Access Control | Passcode-protected operation |
| Application | Remote annunciation and system control |
Information About FMR-7033
The FMR-7033 is a remote keypad module engineered to provide annunciation and operational control for fire alarm systems using the Bosch FPD-7024 panel. Its LCD interface replicates the primary panel display, allowing users to perform local tests, initiate system commands, and access programming when authorized. The keypad includes passcode-protected functionality, making it suitable for public or semi-restricted areas where secure interaction is required. Typical applications include commercial buildings, schools, and industrial facilities that require distributed system access points for monitoring and control.
Key Features
- Full-function remote annunciator: Duplicates the built-in interface of the FPD-7024 panel.
- LCD display: Provides clear system status, events, and programming options.
- Multi-keypad support: Up to four FMR-7033 units can be connected to a single FACP.
- Secure access: Passcode protection restricts system control to authorized users.
- Event log access: Allows remote viewing of stored alarm and system events.
- System control functions: Supports programming, testing, and control operations.
- Suitable for public installation: Designed for secure deployment in accessible areas.
- Compact form factor: Provides easy mounting and integration into fire system installations.
The FMR-7033 delivers the reliability and precision required for remote annunciation and control in FPD-7024-based fire alarm systems.
