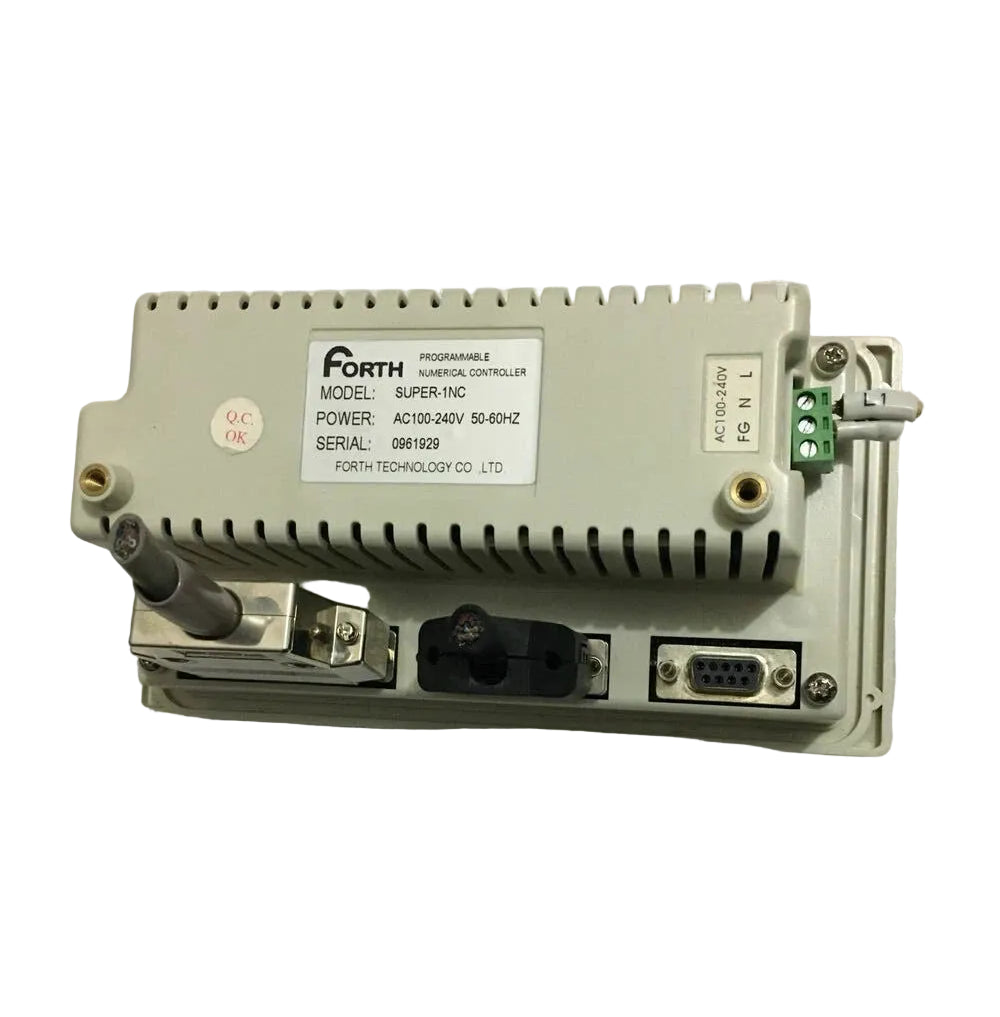

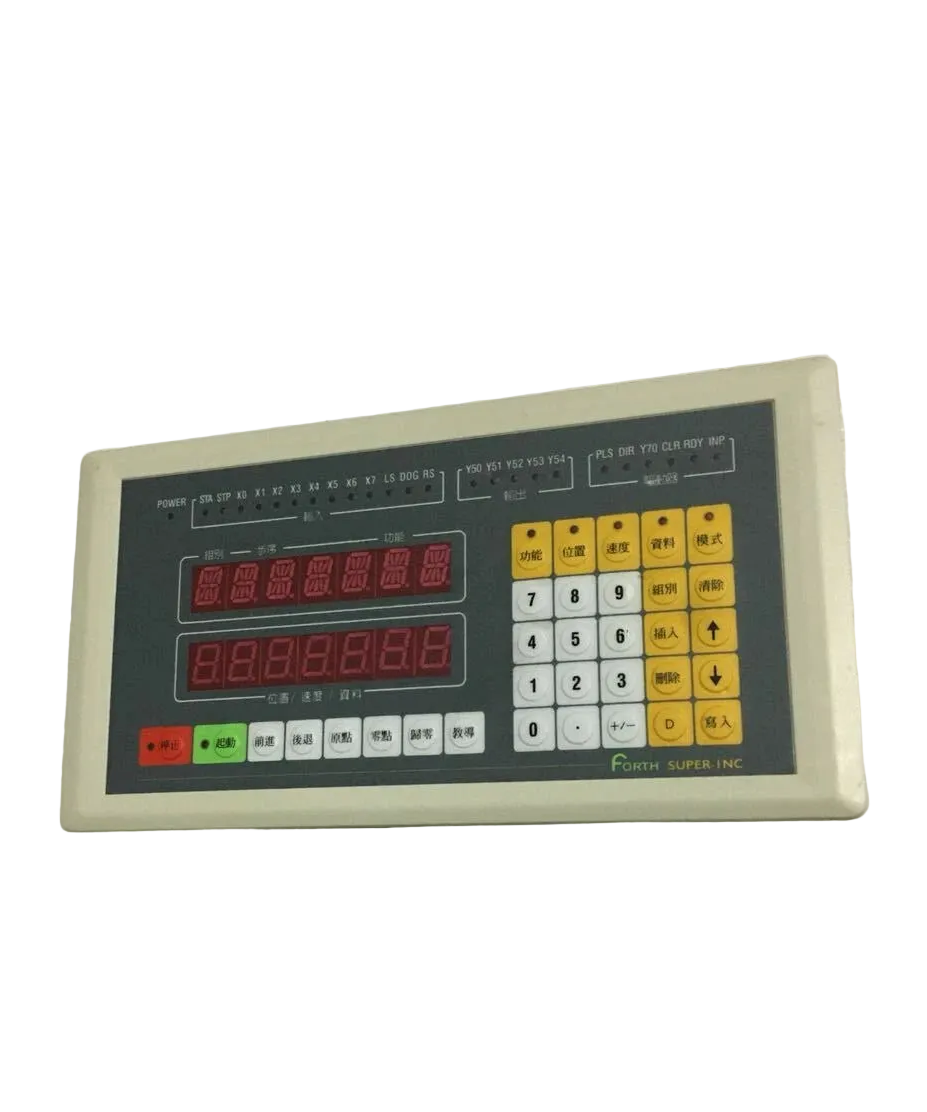

Forth SUPER-1NC Servo Stepper Motion Controller 400kpps Single-Axis CNC Panel Unit
- Regular price
- $3,099.00
- Sale price
- $3,099.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SUPER-1NC
Description
The Forth SUPER-1NC is a standalone servo and stepper controller designed for precise motion control in CNC and automated machinery. With a pulse output frequency of up to 400 kpps, it supports accurate positioning, flexible programming, and direct machine operation across a wide range of industrial applications. The controller is suited for equipment requiring reliable single-axis control, manual teaching, and easy PLC integration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Forth |
| Category | Industrial Automation |
| Part Number | SUPER-1NC |
| Subcategory | Motion Controllers |
| Controller Type | Servo / Stepper Controller |
| Control Axis | 1 axis |
| Maximum Pulse Output | 400 kpps |
| Display Type | 7-segment LED display |
| Program Capacity | Total of 400 steps |
| Programming Structure | 1 × 400 steps or 10 × 40 steps |
| Digital Inputs | 15 IN |
| Digital Outputs | 8 OUT |
| Motion Planning I/O | 8 IN / 5 OUT free motion planning |
| Command Modes | Absolute position, relative position, equal division |
| Manual Input | Jog knob 1x, 10x, and 100x |
| Communication Interface | RS-422 |
| Noise Resistance | Over 2800 V |
| Installation | Panel embedding, opening size 175 × 92 mm |
| Weight | Approx. 1.2 kg |
Information About SUPER-1NC
The SUPER-1NC is a motion controller from Forth developed for servo, stepper, and micro-stepper motor applications in industrial automation systems. It combines the programming encoder and control panel in one unit, allowing operators to enter, edit, and execute motion programs without additional external programming hardware. Built for machine tools, packaging systems, cutting machines, labeling equipment, and other production machinery, it provides practical position control with manual jog, teach, and locking functions. Its design also supports PLC communication through RS-422 or I/O interfacing, making it suitable for both independent operation and coordinated control environments.
Key Features:
- High-Speed Pulse Output: Provides output frequency up to 400 kpps for accurate and responsive motion control.
- Servo and Stepper Compatibility: Supports servo motors, stepper motors, and micro-stepper motor systems.
- Integrated Control Panel: Combines the operator panel and program encoder in one controller for direct local programming.
- Teach Function: Allows forward and backward jog teaching and writing of current coordinates into data registers.
- Manual Jog Knob Support: Supports 1x, 10x, and 100x MPG manual jog operation for setup and adjustment.
- Program Capacity: Stores up to 400 steps with support for one or multiple motion program sets.
- Flexible Key Locking: Includes full or selective key locking to prevent unauthorized operation or parameter changes.
- Digital I/O Configuration: Provides 15 inputs and 8 outputs for machine interface and motion-related functions.
- RS-422 Communication: Supports serial communication for PLC or man-machine interface connection.
- Single-Axis Control: Designed for one-axis positioning control in standalone or integrated systems.
- Dual LED Display: Uses 7-segment LED displays for command, message, and position or speed indication.
- Noise Resistance: Rated for over 2800 V noise resistance in industrial electrical environments.
- Panel Mount Design: Intended for embedded panel installation with a 175 × 92 mm opening size.
The SUPER-1NC delivers the reliability and precision required for single-axis CNC positioning, automated machine sequencing, and industrial motion control applications
