FPA-1000-V2 | Bosch Analog Addressable Fire Alarm Control Panel with Networking
- Regular price
- $1,245.00
- Sale price
- $1,245.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FPA-1000-V2
Description

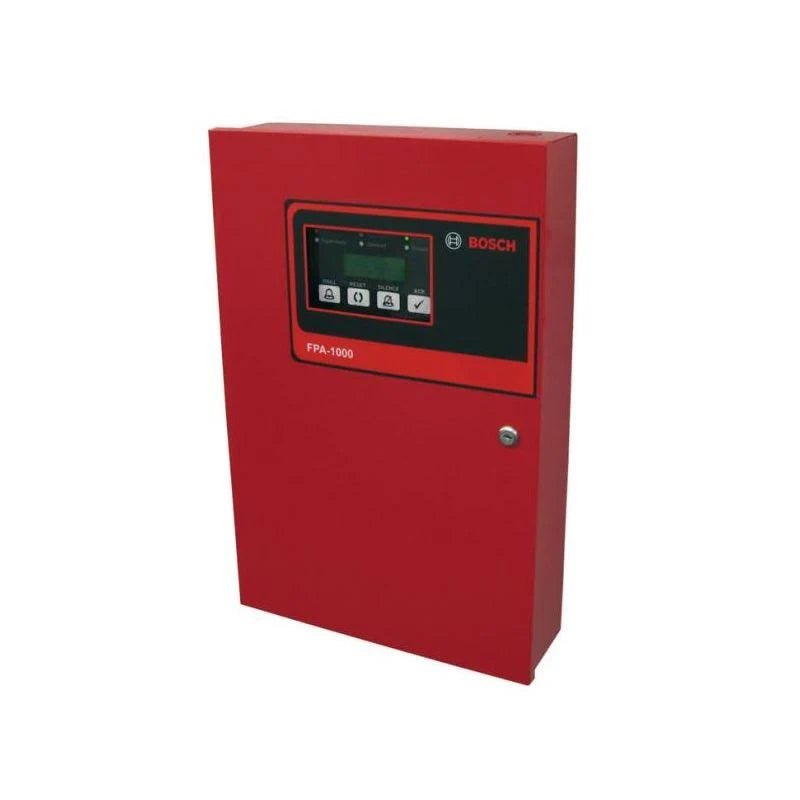

The Bosch FPA-1000-V2 is an analog addressable fire alarm control panel that integrates signaling line circuits, notification appliance circuits, relays, and power supply into one system. Designed for scalability, it supports up to 508 addressable points and includes Ethernet connectivity, dual-line DACT, and peer-to-peer networking for up to eight panels.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Bosch |
| Category | Fire Alarm Systems |
| Part Number | FPA-1000-V2 |
| Subcategory | Fire Alarm Control Panels |
| Panel Type | Analog Addressable |
| Addressable Points | 254 points standard, expandable to 508 with FPE-1000-SLC module |
| Maximum Zones Supported | 508 |
| Notification Appliance Circuits | Two on-board NACs, expandable with NAC boosters |
| Communication Options | Ethernet, dual-line PSTN DACT, Conettix Alarm-over-IP |
| Networking | Peer-to-peer networking for up to 8 panels (2,000 points total) |
| Display | 4-line x 20-character alphanumeric LCD |
| Control Interface | Built-in keypad with functions: Drill, Reset, Silence, Acknowledge |
| Indicators | 6 LEDs (Fire, CO Alarm, Power, Supervisory, Silenced, Trouble) |
| Compatibility | Bosch 440 Series Multi-Criteria Detectors |
| Input Voltage | 120 VAC / 230 VAC / 24 VDC |
| Enclosure | Metal casing, red, keyed lock, dead-front door |
| Mounting Options | Surface or semi-flush |
| Dimensions | 22.7" W x 14.5" H x 4.3" D (576.58 x 368.3 x 109.22 mm) |
| Weight | 18.1 lbs (8.21 kg) |
| Certifications | UL, FM, CSFM, FDNY-CoA |
Information About FPA-1000-V2
The Bosch FPA-1000-V2 is a flexible addressable fire alarm control panel built for both standalone and networked system installations. It supports one SLC loop with 254 points and can be expanded to 508 points using the FPE-1000-SLC plug-in module, allowing for broad coverage in medium to large facilities. The panel integrates an Ethernet port for programming via web browser and Conettix Alarm-over-IP communication, as well as a dual-line PSTN DACT for reliable alarm transmission. With support for up to eight peer-to-peer networked panels, the system can scale to 2,000 addressable points, making it suitable for multi-building or campus-wide applications.
Key Features:
- Scalable Addressable Capacity: Supports 254 points standard, expandable to 508 with SLC module.
- Integrated Communication: Includes Ethernet port, Conettix IP alarm reporting, and dual-line PSTN DACT.
- Networking Capability: Peer-to-peer networking supports up to 8 panels for 2,000 total addressable points.
- Dual NAC Outputs: Two built-in NACs, expandable with addressable NAC boosters, programmable with activation patterns.
- User-Friendly Interface: Features a 4x20 LCD display, built-in keypad, and dedicated control buttons for drill, reset, silence, and acknowledge.
- Front Panel Indicators: Six LEDs show system status for Fire, CO Alarm, Supervisory, Trouble, Silenced, and Power.

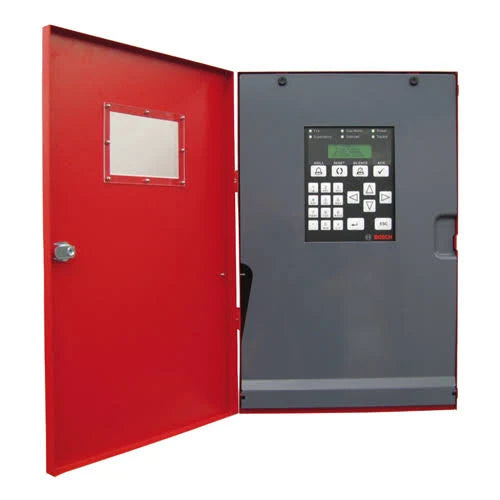

- Secure and Durable Enclosure: Compact red metal housing with keyed lock and dead-front door for protection.
- Flexible Mounting Options: Supports both surface and semi-flush mounting for versatile installations.
- Detector Compatibility: Designed to work with Bosch 440 Series Multi-Criteria Detectors.
- Certified for Compliance: UL, FM, CSFM, and FDNY-CoA approvals for fire alarm system safety and performance.
The FPA-1000-V2 delivers the reliability and precision required for scalable fire alarm installations in commercial, institutional, and industrial environments.
Description
The Bosch FPA-1000-V2 is an analog addressable fire alarm control panel that integrates signaling line circuits, notification appliance circuits, relays, and power supply into one system. Designed for scalability, it supports up to 508 addressable points and includes Ethernet connectivity, dual-line DACT, and peer-to-peer networking for up to eight panels.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Bosch |
| Category | Fire Alarm Systems |
| Part Number | FPA-1000-V2 |
| Subcategory | Fire Alarm Control Panels |
| Panel Type | Analog Addressable |
| Addressable Points | 254 points standard, expandable to 508 with FPE-1000-SLC module |
| Maximum Zones Supported | 508 |
| Notification Appliance Circuits | Two on-board NACs, expandable with NAC boosters |
| Communication Options | Ethernet, dual-line PSTN DACT, Conettix Alarm-over-IP |
| Networking | Peer-to-peer networking for up to 8 panels (2,000 points total) |
| Display | 4-line x 20-character alphanumeric LCD |
| Control Interface | Built-in keypad with functions: Drill, Reset, Silence, Acknowledge |
| Indicators | 6 LEDs (Fire, CO Alarm, Power, Supervisory, Silenced, Trouble) |
| Compatibility | Bosch 440 Series Multi-Criteria Detectors |
| Input Voltage | 120 VAC / 230 VAC / 24 VDC |
| Enclosure | Metal casing, red, keyed lock, dead-front door |
| Mounting Options | Surface or semi-flush |
| Dimensions | 22.7" W x 14.5" H x 4.3" D (576.58 x 368.3 x 109.22 mm) |
| Weight | 18.1 lbs (8.21 kg) |
| Certifications | UL, FM, CSFM, FDNY-CoA |
Information About FPA-1000-V2
The Bosch FPA-1000-V2 is a flexible addressable fire alarm control panel built for both standalone and networked system installations. It supports one SLC loop with 254 points and can be expanded to 508 points using the FPE-1000-SLC plug-in module, allowing for broad coverage in medium to large facilities. The panel integrates an Ethernet port for programming via web browser and Conettix Alarm-over-IP communication, as well as a dual-line PSTN DACT for reliable alarm transmission. With support for up to eight peer-to-peer networked panels, the system can scale to 2,000 addressable points, making it suitable for multi-building or campus-wide applications.
Key Features:
- Scalable Addressable Capacity: Supports 254 points standard, expandable to 508 with SLC module.
- Integrated Communication: Includes Ethernet port, Conettix IP alarm reporting, and dual-line PSTN DACT.
- Networking Capability: Peer-to-peer networking supports up to 8 panels for 2,000 total addressable points.
- Dual NAC Outputs: Two built-in NACs, expandable with addressable NAC boosters, programmable with activation patterns.
- User-Friendly Interface: Features a 4x20 LCD display, built-in keypad, and dedicated control buttons for drill, reset, silence, and acknowledge.
- Front Panel Indicators: Six LEDs show system status for Fire, CO Alarm, Supervisory, Trouble, Silenced, and Power.
- Secure and Durable Enclosure: Compact red metal housing with keyed lock and dead-front door for protection.
- Flexible Mounting Options: Supports both surface and semi-flush mounting for versatile installations.
- Detector Compatibility: Designed to work with Bosch 440 Series Multi-Criteria Detectors.
- Certified for Compliance: UL, FM, CSFM, and FDNY-CoA approvals for fire alarm system safety and performance.
The FPA-1000-V2 delivers the reliability and precision required for scalable fire alarm installations in commercial, institutional, and industrial environments.
