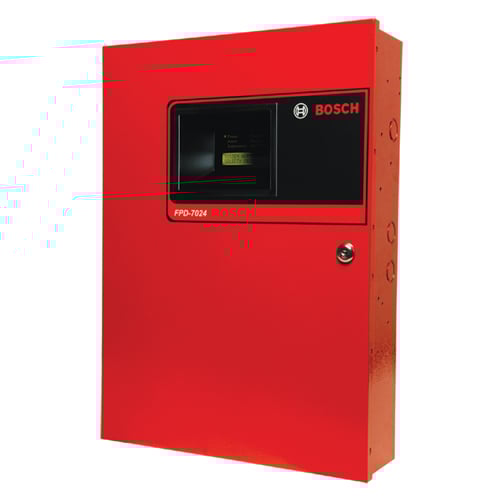

FPD-7024 | Bosch 4-Zone Expandable Fire Alarm Control Panel with NAC Power and DACT
- Regular price
- $724.00
- Sale price
- $724.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: FPD-7024
Description
The Bosch FPD-7024 Fire Alarm Control Panel is a versatile four-zone conventional panel that can be expanded to eight zones and upgraded to addressable operation with a MUX module. It provides built-in digital alarm communication, powerful NAC outputs, and flexible programming for diverse commercial applications. With UL listings and extensive compatibility, the FPD-7024 is a scalable solution for reliable fire detection and notification.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Bosch Security |
| Category | Fire Safety |
| Part Number | FPD-7024 |
| Subcategory | Fire Alarm Control Panels |
| Series | FPD-7024 Series |
| Panel Type | Conventional (expandable, MUX-upgradeable to addressable) |
| Initiating Zones | 4 Class A/B standard; expandable to 8 with FPC-7034 |
| Zone Capacity | Up to 20 two-wire detectors per zone |
| Notification Appliance Circuits (NACs) | 2 × Class A or Class B; 4.0 A shared regulated output |
| Notification Patterns | Temporal (ANSI), March Time, Steady, Pulsed, synchronized (Wheelock, Gentex, System Sensor) |
| Expansion Module | D7039 MUX expansion: 247 addressable points, 499-event history, 100 users, 59 programmable relays |
| History Buffer | 99 events standard; 499 with MUX |
| User Interface | LCD/keypad with LED indicators; multilingual (English, Spanish, Portuguese) |
| Central Station Reporting | Dual phone lines/IP addresses via DACT; BFSK, SIA, Contact ID, Modem IIIa2, 4/2, 3/1 formats |
| Relays (Onboard) | 3 Form C (alarm, trouble, supervisory), 5 A @ 28 VDC |
| Optional Relays | 8 Form C per D7035 remote relay module (max 2 modules) |
| Auxiliary Power Outputs | Resettable: 20.4–28.2 VDC, 1 A; Non-resettable: 17–31 VRMS, 1 A; Option bus: 12 VDC, 500 mA |
| Primary Power | 120 VAC, 60 Hz, 1.4 A or 230/240 VAC, 50 Hz, 0.7 A |
| Standby Batteries | 2 × 12 V, 7–40 Ah; supports BATB-40/80 enclosures for larger batteries |
| Certifications | UL 864 10th Edition, FM, CSFM, FDNY, FCC |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Relative Humidity | Up to 93%, non-condensing |
| Enclosure Size | 4.30 × 15.00 × 20.80 in |
| Weight | 16 lbs |
| Color | Red |
| Production Status | Active |
Information About FPD-7024
The FPD-7024 is part of the Bosch FPD-7024 Series, designed for commercial, retail, and institutional fire safety systems. Out of the box, it supports four Class A/B initiating device circuits (IDCs), expandable to eight with the FPC-7034 expander, and accommodates up to 20 two-wire detectors per zone. Two NACs provide synchronized notification for Wheelock, Gentex, or System Sensor appliances, powered by a 4 A supply. Adding the D7039 MUX expansion module transforms the panel into a hybrid addressable system supporting up to 247 points, expanded event history, and enhanced programming capabilities. A large LCD display with keypad, remote annunciators, and programming software ensure flexible operation and system management.
Key Features:
- Expandable Detection: Four initiating zones standard, expandable to eight with FPC-7034.
- MUX Upgradeable: Supports D7039 MUX expansion for up to 247 addressable points.
- Integrated Communicator: Built-in DACT reports to two phone numbers and/or IP addresses.
- Strong NAC Power: Two NACs with 4 A shared output; Class A or B wiring supported.
- Event History: Stores 99 events (expandable to 499 with MUX module).
- Multilingual Interface: LCD/keypad supports English, Spanish, and Portuguese.
- Flexible Notification: Configurable patterns including Temporal, March, Steady, and Synchronized outputs.
- Dirty Detector Monitoring: Continuous chamber supervision with CleanMe and out-of-range alerts.
The FPD-7024 delivers the reliability and precision required for scalable commercial fire alarm and life safety installations.
