FPT-GATE-3-R | Gamewell-FCI FocalPoint Gateway-3 with Red Enclosure for E3 Network Systems
- Regular price
- $2,605.00
- Sale price
- $2,605.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FPT-GATE-3-R
Description

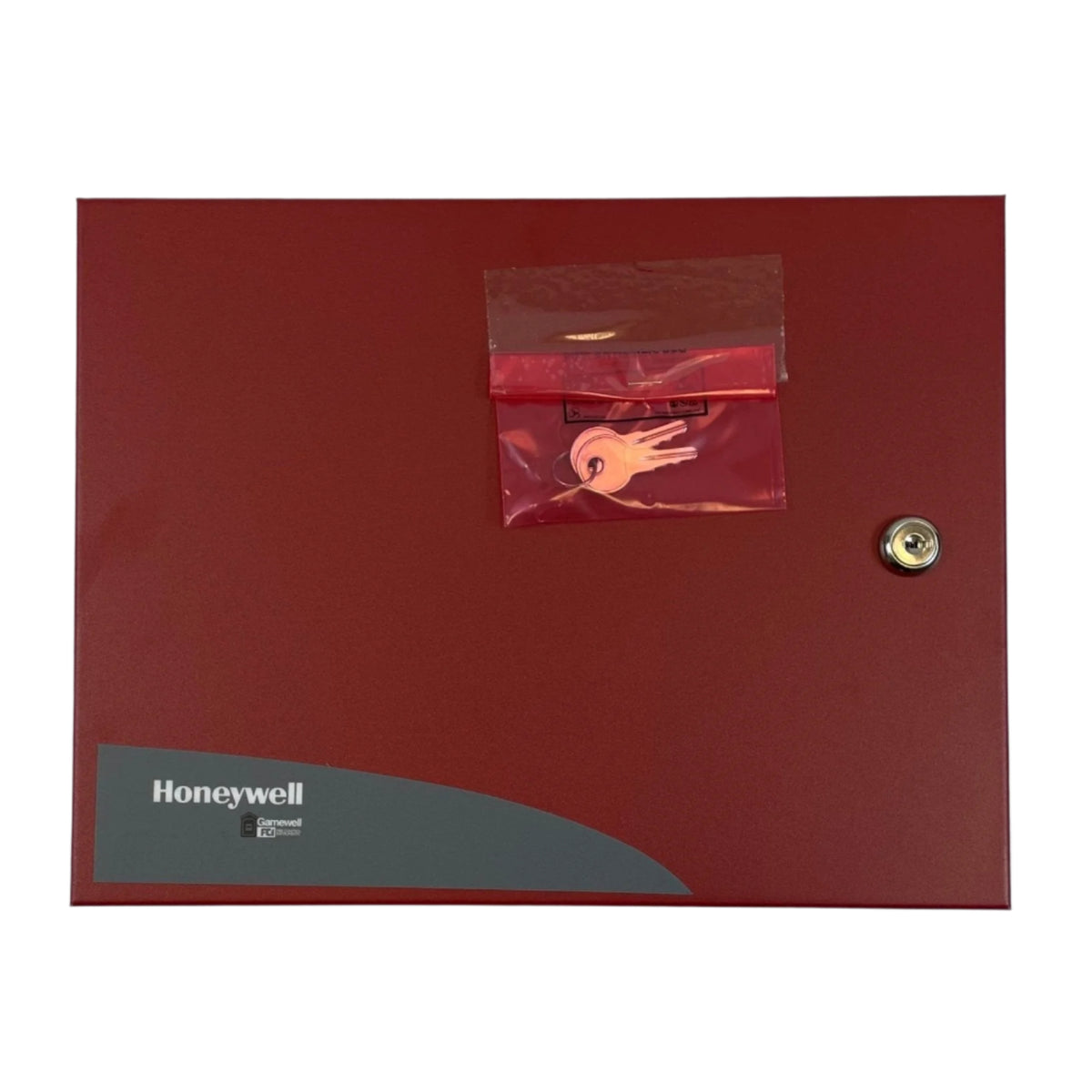

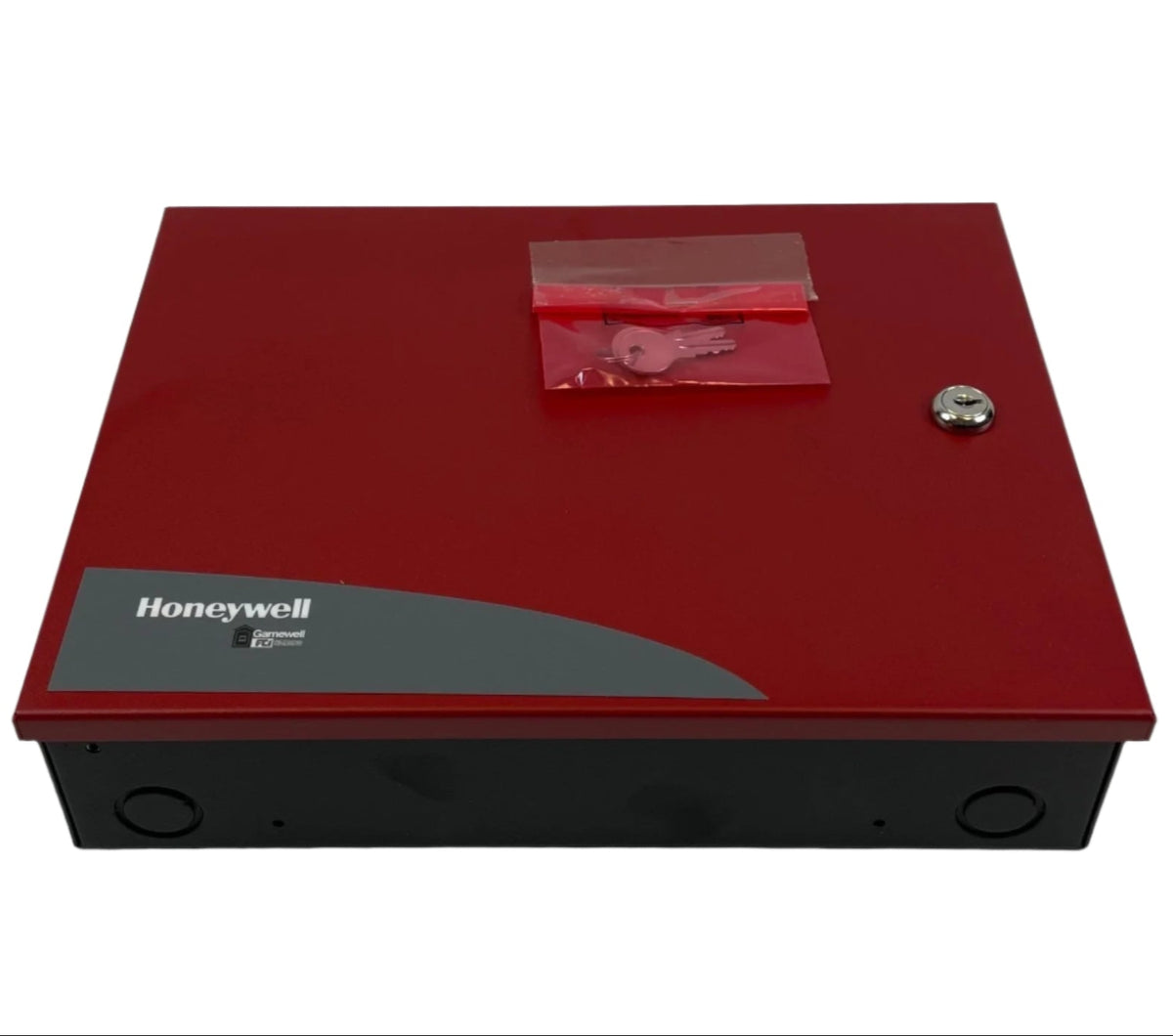

The Gamewell-FCI FPT-GATE-3-R FocalPoint Gateway-3 with Enclosure is a network interface module that serves as the communication link between Gamewell-FCI fire alarm control panels and the FocalPoint graphical workstation. Housed in a durable red enclosure, it provides real-time system data exchange, event reporting, and monitoring capability across networked fire systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Gamewell-FCI |
| Category | Fire Alarm Equipment |
| Part Number | FPT-GATE-3-R |
| Subcategory | Network Gateway Module |
| System Compatibility | Gamewell-FCI FocalPoint and E3 Series systems |
| Communication Interface | Ethernet (TCP/IP), RS-485 |
| Network Function | Fire alarm panel-to-workstation data gateway |
| Power Input | 24 VDC nominal |
| Mounting Type | Wall-mounted enclosure |
| Enclosure Color | Red |
| Enclosure Material | Steel, powder-coated finish |
| Indicators | LED indicators for power, communication, and status |
| Supported Protocols | Gamewell-FCI proprietary network and FocalPoint data format |
| Operating Temperature Range | 32°F to 120°F (0°C to 49°C) |
| Humidity Range | Up to 93% RH, non-condensing |
| Compliance | UL Listed; NFPA 72 compliant |
| Dimensions | Approx. 20" H × 14" W × 4.5" D |
| Weight | 13 lb (5.9 kg) |
Information About FPT-GATE-3-R
The FPT-GATE-3-R is a third-generation FocalPoint gateway developed by Gamewell-FCI for integration with its E3 Series and other compatible fire alarm networks. It translates and transmits event and system information to the FocalPoint workstation, enabling centralized monitoring and control of multiple panels. Featuring advanced data processing, the FPT-GATE-3-R supports Ethernet connectivity, redundant network communication, and encrypted protocol transmission for system reliability. The included steel enclosure provides physical protection and simplified installation in command centers or control rooms. Designed to meet UL and NFPA communication standards, this gateway is an essential component for large-scale fire alarm management systems.
Key Features:
- Advanced Gateway Module: Provides network communication between Gamewell-FCI fire systems and FocalPoint workstations.
- High-Speed Ethernet Interface: Enables fast and secure data exchange across networked panels.
- Real-Time System Monitoring: Transmits alarm, supervisory, and trouble conditions instantly to the graphical interface.
- Integrated Enclosure: Red metal housing protects the gateway electronics and simplifies wall-mount installation.
- Redundant Communication Support: Ensures reliability through dual network connectivity options.
- UL/NFPA Compliant: Meets standards for fire alarm network communication and supervision.
- User-Friendly Configuration: Compatible with Gamewell-FCI software tools for system setup and diagnostics.
- Legacy and Current Support: Interfaces with both existing and modern Gamewell-FCI E3 Series systems.
The FPT-GATE-3-R delivers the reliability and precision required for centralized monitoring and control in advanced fire alarm network applications.
