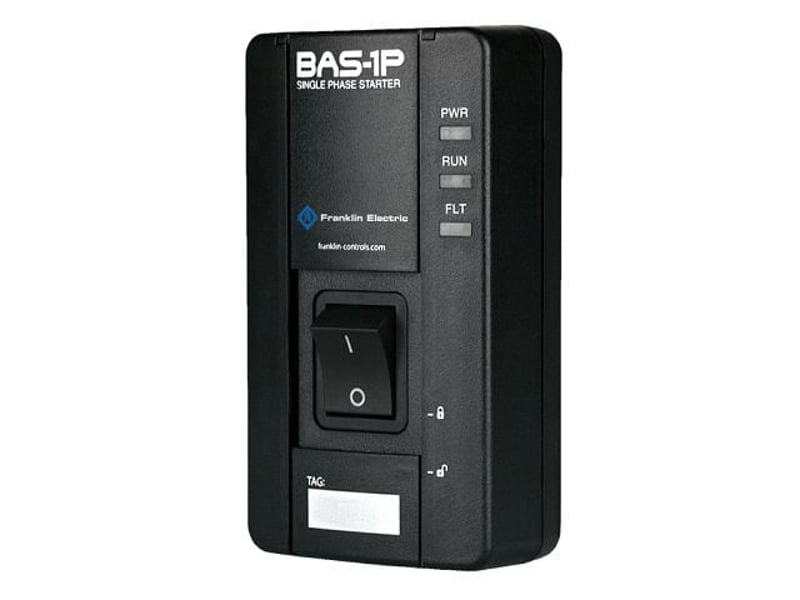

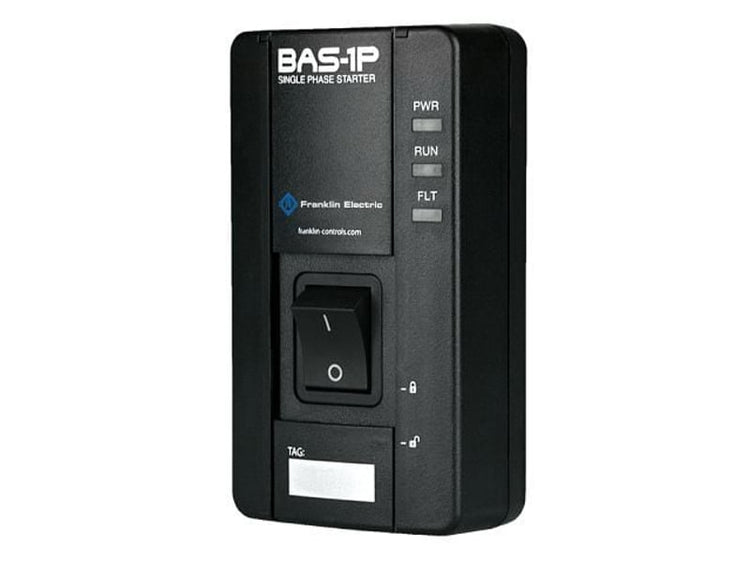

Franklin Electric BAS-1P Manual Single-Phase Building Automation Motor Starter
- Regular price
- $312.00
- Sale price
- $312.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BAS-1P
Description
The Franklin Electric BAS-1P is a manual single-phase building automation starter designed for dependable motor control in HVAC equipment such as fans, pumps, and air handlers. Featuring integrated overload protection, Power/Run/Fault LED indicators, and manual or automatic operating modes, it provides reliable motor starting and monitoring for commercial building automation systems. Its compact NEMA 1 enclosure allows straightforward installation in new or retrofit applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Franklin Electric |
| Category | Contactors & Starters |
| Part Number | BAS-1P |
| Subcategory | Starter |
| Product Type | Manual Building Automation Starter |
| Motor Rating | 0.1–1 HP |
| Phase | Single Phase |
| Supply Voltage | 120–240 VAC |
| Frequency | 50/60 Hz |
| Enclosure Rating | NEMA 1 |
| Overload Protection | Adjustable Electronic Class 10 |
| Overload Adjustment Range | 1–16 A |
| Status Indicators | Power, Run, Fault LEDs |
| Control Modes | Hand, Auto, Reset |
| Auto Run Inputs | Voltage Input and Dry Contact Input |
| Mounting | Standard Single-Gang Junction Box |
| Operating Temperature | -20°C to 40°C (-5°F to 104°F) |
| Weight | 0.32 kgs |
Information About BAS-1P
The BAS-1P is part of the Franklin Electric Building Automation Starter series developed for single-phase motor applications in commercial HVAC systems. It combines a manual motor starter, electronic overload protection, and building automation interface into a compact NEMA 1 enclosure suitable for junction box installation. The starter supports both voltage and dry-contact auto-run commands, allowing direct integration with building automation systems without requiring interposing relays. Current-sensing technology provides run status verification while built-in protective functions improve equipment reliability and simplify maintenance.
Key Features:
- Single-Phase Motor Control: Designed for 120–240 VAC single-phase motors from 0.1 to 1 HP.
- Electronic Overload Protection: Adjustable Class 10 overload protection with a 1–16 A setting range.
- LED Status Indicators: Power, Run, and Fault LEDs provide clear operating and diagnostic information.
- Manual and Automatic Modes: Supports Hand, Auto, and Reset operating selections for flexible control.
- Building Automation Compatibility: Accepts voltage or dry-contact run commands directly from BAS controllers.
- Lockable Disconnect Switch: Integrated motor-rated ON/OFF disconnect enhances service safety.
- Run Status Verification: Built-in current sensing confirms actual motor operation for system monitoring.
- Compact NEMA 1 Design: Surface or flush mounting on a standard single-gang junction box simplifies installation.
The BAS-1P delivers the reliability and precision required for commercial HVAC motor starting and building automation control applications.
