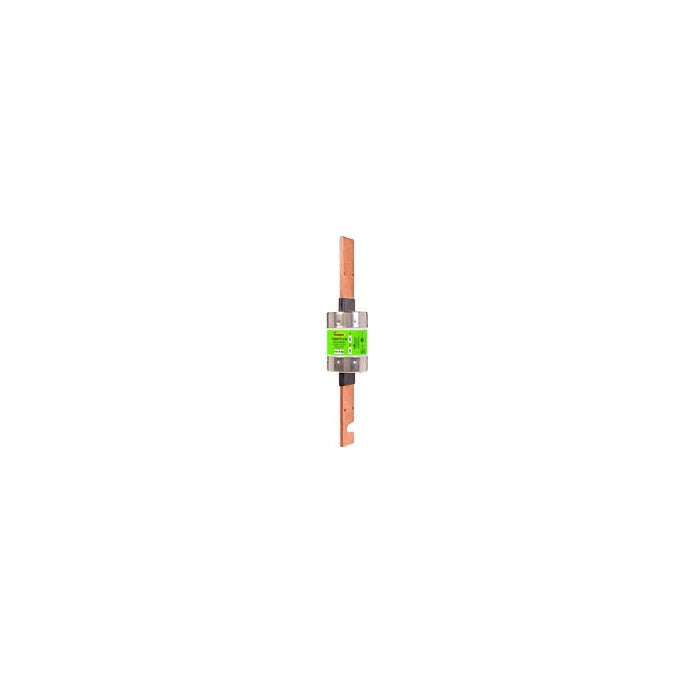

Product Description P/N: FRS-R-600
Description
Eaton Bussmann series FRS-R fuse, 600 A, Dual, Class RK5, Non-indicating, Blade end x blade end, 10 sec at 500%, 20 kAIC at 300 Vdc,200 kAIC at 600 V, Standard, 600 V, 300 Vdc.
Technical Specifications
| Brand | Eaton |
| Category | Panel Accessories |
| Part Number | FRS-R-600 |
| Subcategory | Fuse |
| Amperage | 600 Amp |
| Applications | Combination Starters, Motor Control Centers, Machinery Disconnects, Power Panelboards |
| Connection Type | Blade |
| Element | Dual |
| End Type | Blade |
| Fuse Class | Class RK5 |
| Interrupt Rating | 20 kAIC |
| Response Time | 10 sec at 500% |
| Size | 2.88 In Diameter X 13.38 In Length |
| Standard | CE,CSA,UL 248-12 |
| TC Connection | Blade end x blade end |
| Voltage | 300 Volt |
Information About FRS-R-600
The FRS-R-600 by Eaton is a robust time-delay fuse designed for reliable electrical protection in various applications. With an amperage rating of 600A, it is suitable for combination starters, motor control centers, machinery disconnects, and power panelboards.
Featuring a blade-type connection, the FRS-R-600 ensures secure installation and reliable electrical connection. Its dual-element design enhances performance and reliability, providing effective protection against overloads and short circuits.
This fuse belongs to Class RK5, offering a high interrupt rating of 20kAIC, ensuring reliable circuit protection in case of faults. With a response time of 10 seconds at 500% overload, it provides a balance between safety and operational flexibility.
Measuring 2.88 inches in diameter and 13.38 inches in length, the FRS-R-600 fuse is compact yet capable of handling high-current applications. It conforms to CE, CSA, and UL 248-12 standards, ensuring compliance with safety and performance requirements.
With a voltage rating of 300 volts, the FRS-R-600 fuse provides effective protection for electrical circuits in various voltage configurations. Overall, it offers dependable performance, robust construction, and broad compatibility, making it an essential component for ensuring electrical safety and reliability.
Manufacturer information
Eaton Corporation is a multinational power management company offering a diverse range of electrical, hydraulic, and aerospace solutions. Known for innovation, Eaton serves customers in various industries worldwide.
