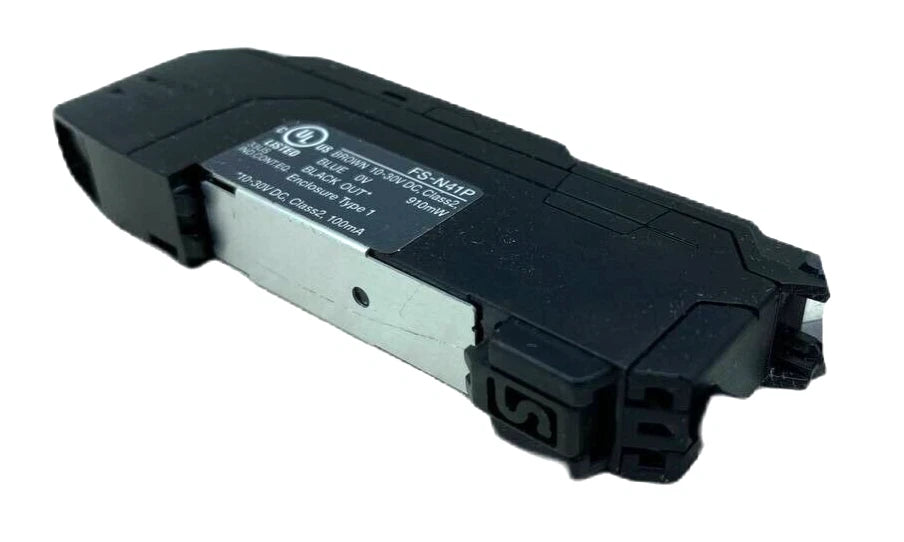

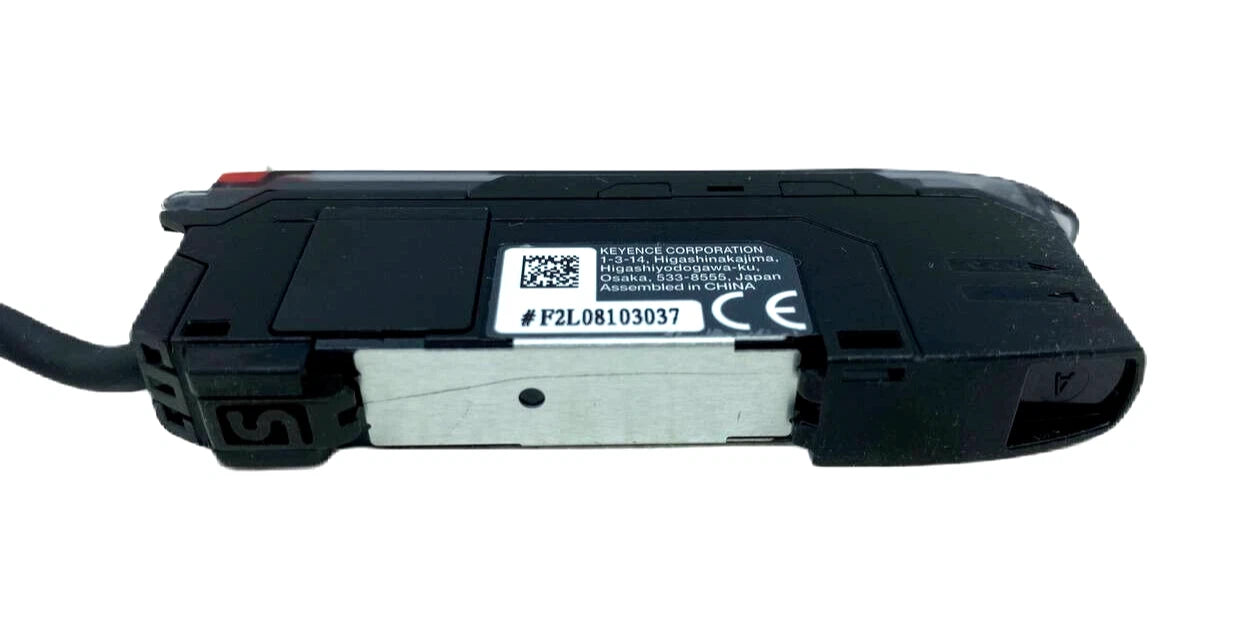

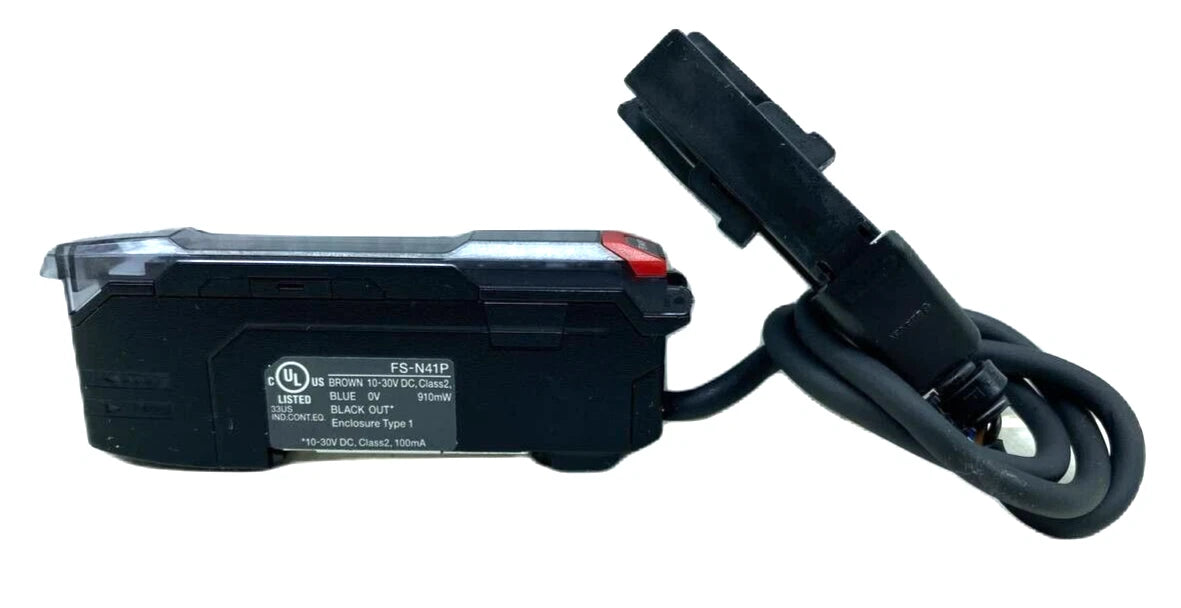

FS-N41P | Keyence Amplifier Units Cable Type Main Unit PNP
- Regular price
- $209.00
- Sale price
- $209.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FS-N41P
Description
The FS-N41P Amplifier Unit Cable Type Main Unit, configured with PNP technology, features open-collector outputs capable of handling up to 30V or less and 100mA or less per output. When used independently, it supports a total current of 100mA or less across its two outputs. As an expansion unit, it operates with a reduced current capability of 20mA or less. The residual voltage measures 1.6V or less at output currents up to 10mA and 2.2V or less at currents ranging from 10 to 100mA
Technical Specifications
|
Part # |
FS-N41P |
|
Category |
Sensors & Switches |
|
Subcategory |
Sensor Amplifier ZERO LINE |
|
Voltage Range |
10 to 30 VDC |
|
Indicator |
Red Four-Element LED |
|
Lamp Type |
Incandescent Lamp |
|
Case Material |
Polycarbonate |
|
Ambient Temperature |
-20 °C to +55 °C |
|
Replaces |
FS-V21RP |
Information About FS-N41P
The FS-N41P Amplifier Unit, designated as Cable Type Main Unit with PNP configuration, operates with open-collector outputs capable of handling voltages up to 30 V DC and currents not exceeding 100 mA per output channel. When operating independently, the total current for both outputs does not exceed 100 mA. However, in expansion unit mode, the current per output is restricted to 20 mA.
In terms of residual voltage, the amplifier unit maintains levels of 1.6 V or lower when the output current is 10 mA or less. For higher output currents ranging from 10 to 100 mA, the residual voltage remains below 2.2 V.
The FS-N41P is designed with robust specifications suitable for various industrial applications, offering reliable performance in challenging environments. Its design features include a red four-element LED indicator for visual status indication and an incandescent lamp type for supplementary signaling.
Manufacturer information
Keyence Corporation, founded in 1974, is a global leader in automation and inspection technology. Specializing in sensors, vision systems, lasers, and more, Keyence provides innovative solutions for manufacturing and research across various industries worldwide.
