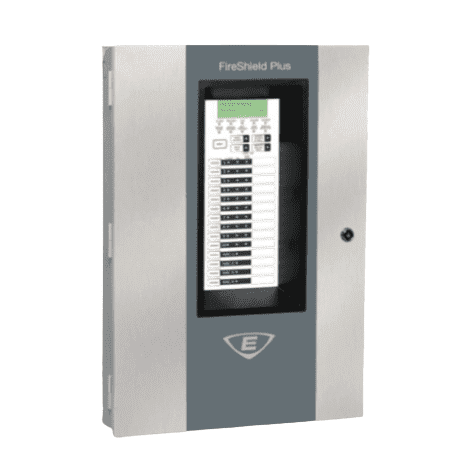

FSP1004GD | Edwards EST FireShield Plus 10-Zone Conventional Fire Alarm Control Panel with Communicator
- Regular price
- $810.00
- Sale price
- $810.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FSP1004GD
Description
The Edwards EST FSP1004GD FireShield Plus is a 10-zone conventional fire alarm control panel equipped with an integrated digital communicator for remote monitoring. It features 10 Class B initiating circuits, 4 Class B notification appliance circuits, and flexible Class A configuration options for versatile system design.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards EST |
| Category | Fire Alarm Control Panels |
| Part Number | FSP1004GD |
| Subcategory | Conventional Fire Alarm Control Panel |
| System Type | FireShield Plus Conventional FACP |
| Zones | 10 Class B IDCs (Configurable to 5 Class A IDCs) |
| Notification Circuits | 4 Class B NACs (Configurable to 2 Class A NACs) |
| Power Input | 120 VAC, 60 Hz |
| Power Supply | Expandable (10 IDC Model) |
| Communication | Integrated DACT/Dialer (PC-Programmable) |
| Display | LCD Display with LED Status Indicators |
| Programming | Front Panel Menu-Driven Configuration |
| Supported Detectors | Edwards 2M, EC, 6200, 400, 500 and 700 Series; CleanMe®-Compatible |
| CleanMe® Function | Remote Maintenance Alert and Drift Compensation |
| Built-In Relays | Alarm, Supervisory and Trouble |
| Mounting | Surface or Semi-Flush (Trim Ring Available) |
| Sync Protocols | Genesis Audible Silence and Synchronization |
| Testing | One-Person Walk Test (Audible or Silent) |
| Optional Modules | Serial Relay Modules and Remote Annunciators |
| Compliance | UL Listed, ULC Listed, NFPA 72 Compliant |
| Dimensions | 3.75 × 15.0 × 30 in |
| Weight | 16 lbs |
Information About FSP1004GD
The FSP1004GD belongs to the Edwards FireShield Plus family of conventional fire alarm control panels, offering dependable fire protection and flexible configuration options for small and medium facilities. The system supports ten initiating device circuits (IDCs) and four notification appliance circuits (NACs), both convertible to Class A configurations for enhanced survivability. It includes an integrated DACT/dialer that provides direct communication with central monitoring stations, reducing the need for external hardware. FireShield Plus panels feature front-panel programmability, built-in alarm relays, and CleanMe® detector support, which enables remote maintenance alerts and automatic drift compensation to minimize false alarms. Its modular, microprocessor-based architecture ensures reliability, scalability, and compliance with modern life-safety standards.
Key Features:
- Ten Zone Conventional Panel: Provides 10 Class B IDCs or 5 Class A IDCs for comprehensive fire detection coverage.
- Four NAC Outputs: Includes 4 Class B or 2 Class A circuits for horns, strobes, or other notification appliances.
- Integrated Communicator: Built-in DACT supports both Contact ID and SIA formats for central station reporting.
- CleanMe® Technology: Monitors smoke detector drift and alerts maintenance staff to reduce false alarms.
- Programmable Operation: Front-panel programming enables easy setup, customization, and system testing.
- Flexible Synchronization: Supports Genesis sync and temporal output modes for coordinated signaling.
- On-Board Relays: Dedicated relays for Alarm, Supervisory, and Trouble enhance system integration.
- Maintenance and Testing Tools: One-person walk test, signal silence options, and configurable alarm verification.
The FSP1004GD delivers the reliability and precision required for versatile, code-compliant fire detection and communication in commercial and institutional environments.
