FSPNLCDS6AQ | Hubbell Fiber Optic Patch Panel
- Regular price
- $157.00
- Sale price
- $157.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FSPNLCDS6AQ
Description
The Hubbell FSPNLCDS6AQ is a 12-fiber optic panel adapter designed for efficient interconnect applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand |
Hubbell |
| Category | Fiber Optic Connectivity |
| Part Number | FSPNLCDS6AQ |
| Subcategory | Fiber Optic Patch Panel / Adapter Panel |
| Mounting Type | Snap-In |
| Temperature Rating |
-40 to 85°C
|
| Material | Ceramic Zirconium |
| Number of Ports |
6
|
| Type | 6-Fiber |
| Environmental Conditions | Indoor |
| Color | Yellow |
| Height | 1-1/2 Inch |
| Width | 1.200 in |
| Length | 5.2 Inch |
| Weight | 0.5 lbs |
Information About FSPNLCDS6AQ

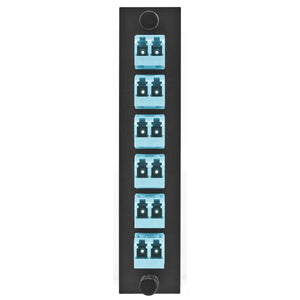

The Hubbell FSPNLCDS6AQ is a fiber optic adapter panel designed to facilitate efficient interconnections in fiber optic networks. It features six LC duplex adapters, accommodating up to 12 fibers, and is equipped with zirconia ceramic sleeves to ensure optimal performance.
Key Features:
- Adapter Type: LC Duplex
- Number of Ports: 6 (12 fibers)
- Adapter Sleeves: Zirconia Ceramic
- Color: Aqua
- Insertion Loss: Typical 0.20 dB; Maximum 0.30 dB
- Repeatability: 0.1 dB for Singlemode; 0.2 dB for Multimode
- Service Life: Up to 500 matings
- Operating Temperature: 0 °C to +75 °C
- Compliance: TIA-568-C.3 and TIA-604-FOCIS standards
The panel's aqua color aligns with industry standards for OM3/OM4 multimode fiber applications, ensuring easy identification and compatibility. Its snap-in design allows for quick and secure installation in compatible enclosures, such as Hubbell's N-Series Fiber Panels.
This adapter panel is suitable for both singlemode and multimode fiber types, making it versatile for various networking requirements. Its high-quality construction and compliance with industry standards ensure reliable performance in demanding environments.
Description
The Hubbell FSPNLCDS6AQ is a 12-fiber optic panel adapter designed for efficient interconnect applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand |
Hubbell |
| Category | Fiber Optic Connectivity |
| Part Number | FSPNLCDS6AQ |
| Subcategory | Fiber Optic Patch Panel / Adapter Panel |
| Mounting Type | Snap-In |
| Temperature Rating |
-40 to 85°C
|
| Material | Ceramic Zirconium |
| Number of Ports |
6
|
| Type | 6-Fiber |
| Environmental Conditions | Indoor |
| Color | Yellow |
| Height | 1-1/2 Inch |
| Width | 1.200 in |
| Length | 5.2 Inch |
| Weight | 0.5 lbs |
Information About FSPNLCDS6AQ
The Hubbell FSPNLCDS6AQ is a fiber optic adapter panel designed to facilitate efficient interconnections in fiber optic networks. It features six LC duplex adapters, accommodating up to 12 fibers, and is equipped with zirconia ceramic sleeves to ensure optimal performance.
Key Features:
- Adapter Type: LC Duplex
- Number of Ports: 6 (12 fibers)
- Adapter Sleeves: Zirconia Ceramic
- Color: Aqua
- Insertion Loss: Typical 0.20 dB; Maximum 0.30 dB
- Repeatability: 0.1 dB for Singlemode; 0.2 dB for Multimode
- Service Life: Up to 500 matings
- Operating Temperature: 0 °C to +75 °C
- Compliance: TIA-568-C.3 and TIA-604-FOCIS standards
The panel's aqua color aligns with industry standards for OM3/OM4 multimode fiber applications, ensuring easy identification and compatibility. Its snap-in design allows for quick and secure installation in compatible enclosures, such as Hubbell's N-Series Fiber Panels.
This adapter panel is suitable for both singlemode and multimode fiber types, making it versatile for various networking requirements. Its high-quality construction and compliance with industry standards ensure reliable performance in demanding environments.
