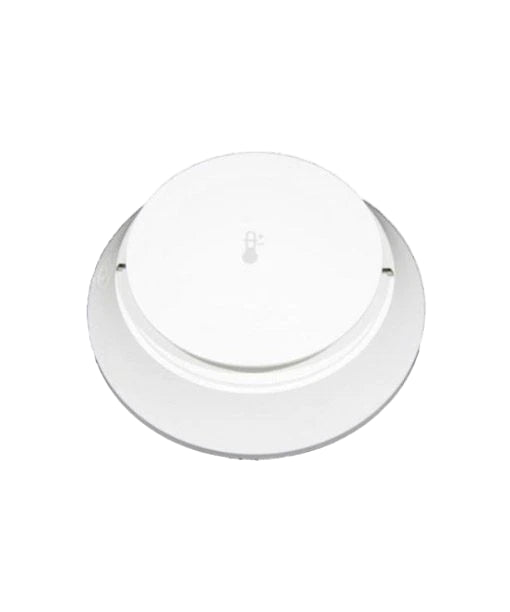

FST-951-BP | Notifier Intelligent Addressable Heat Detector for ONYX Fire Alarm Systems
- Regular price
- $739.00
- Sale price
- $739.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FST-951-BP
Description
The Notifier FST-951-BP Heat Detector is a high-sensitivity thermal detection device engineered for commercial and industrial fire alarm systems. This intelligent addressable detector monitors temperature changes to provide rapid response to fire conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Notifier |
| Category | Fire Alarm Equipment |
| Part Number | FST-951-BP |
| Subcategory | Heat Detector |
| Detector Type | Intelligent addressable heat detector |
| Detection Method | Fixed temperature and rate-of-rise sensing |
| Operating Voltage | 15–32 VDC |
| Standby Current | 300 µA (average) |
| Alarm Current | 6.5 mA (LED on) |
| Alarm Temperature | 135°F (57°C) nominal |
| Communication Protocol | Notifier FlashScan® intelligent protocol |
| Mounting Base | B210LP or equivalent plug-in base |
| LED Indicators | Dual color (green for normal, red for alarm) |
| Operating Environment | 32°F to 100°F (0°C to 38°C); up to 95% RH non-condensing |
| Housing Material | Fire-resistant plastic |
| Dimensions | 2.1" (5.3 cm) height × 6.1" (15.5 cm) diameter (with base) |
| Weight | 0.3 lb (0.14 kg) |
Information About FST-951-BP
The FST-951-BP is an intelligent addressable heat detector from Notifier’s ONYX series, designed for use with compatible Notifier control panels. It employs advanced thermal sensing technology to detect fixed-temperature and rate-of-rise conditions, ensuring early fire detection in a wide range of environments. The detector communicates with the control panel via a digital protocol, providing accurate status feedback and diagnostic data. With a sleek low-profile housing and plug-in base design, the FST-951-BP simplifies installation and maintenance while maintaining compliance with UL and NFPA fire protection standards.
Key Features:
- Intelligent Addressable Design: Communicates directly with Notifier ONYX control panels for accurate system integration.
- Fixed and Rate-of-Rise Detection: Monitors both sudden temperature increases and threshold exceedance for comprehensive coverage.
- Advanced Thermal Sensor: Ensures fast, precise detection in high-risk fire environments.
- Low-Profile Housing: Compact design blends seamlessly into modern building aesthetics.
- Plug-In Mounting Base: Allows easy installation, replacement, and service without rewiring.
- Environmental Compensation: Maintains stability and accuracy across varying temperature ranges.
- LED Status Indicator: Provides visual confirmation of power, alarm, and fault conditions.
- UL/NFPA Certified: Fully compliant with recognized safety and fire protection standards.
The FST-951-BP delivers the reliability and precision required for intelligent heat detection in commercial and industrial fire protection systems.
