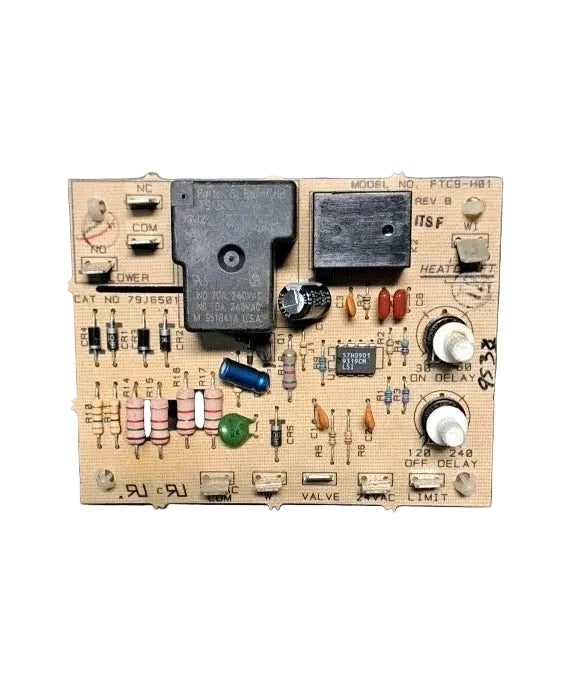

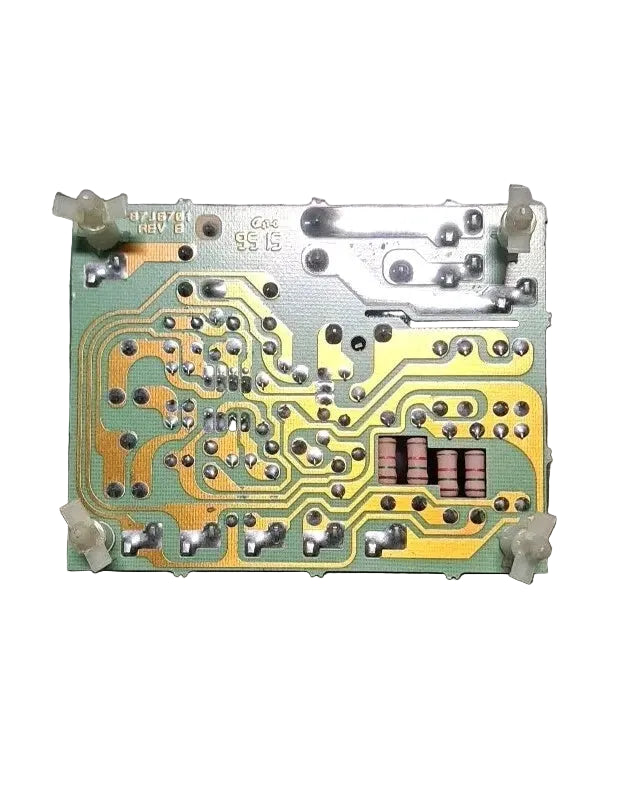

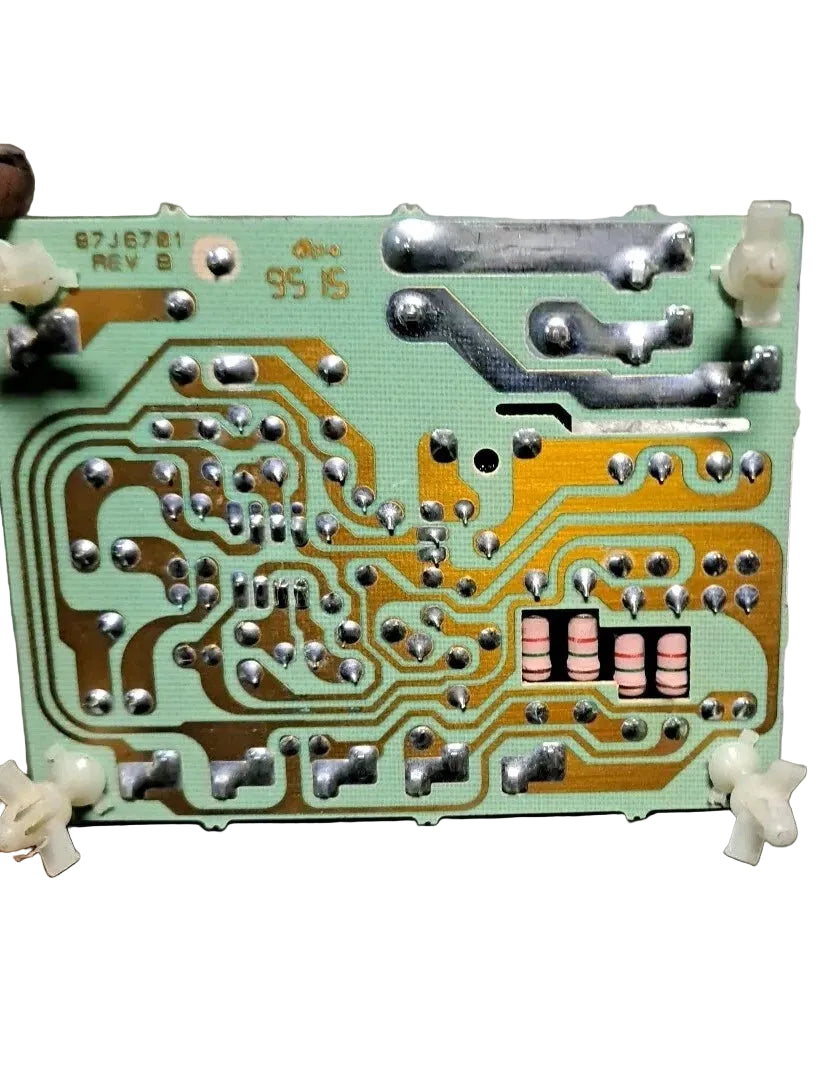

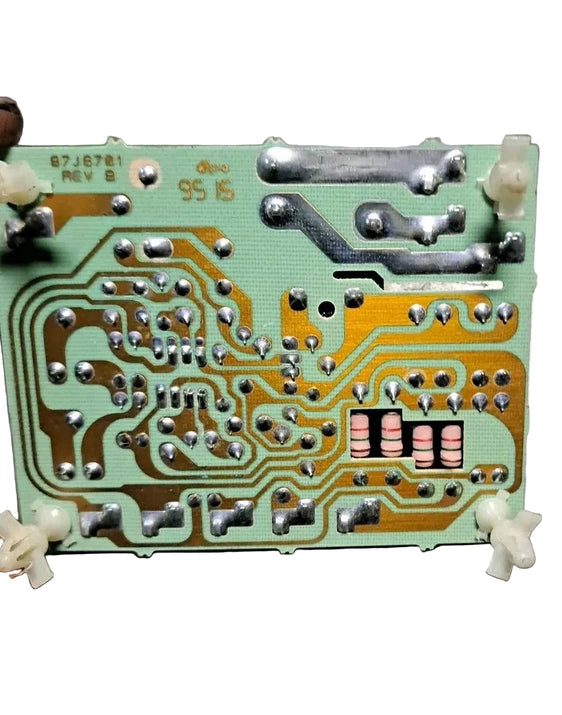

FTC9-H01 | Heatcraft Fan Timer Control Module for Lennox HVAC Systems
- Regular price
- $369.00
- Sale price
- $369.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FTC9-H01
Description
The Heatcraft FTC9-H01 is a fan timer control module designed to manage blower delay functions in Lennox HVAC systems. It regulates fan on-delay and off-delay timing to ensure proper airflow and efficient heat exchange. The FTC9-H01 is used as a replacement fan timer in compatible residential and light commercial heating equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Heatcraft |
| Category | HVAC Control Boards |
| Part Number | FTC9-H01 |
| Subcategory | Fan Timer Controls |
| Device Type | Fan Timer Control Module |
| Control Voltage | 24 V |
| Function | Blower Fan On/Off Delay |
| Application | Heating and Cooling Systems |
| Compatible Brand | Lennox |
| Mounting Type | Internal HVAC Control Mount |
| Operating Environment | Residential and Light Commercial HVAC |
| Construction | Electronic Control Module |
| Duty Cycle | Continuous Operation |
| Weight | Approx. 0.5 lb (0.23 kg) |
Information About FTC9-H01
The FTC9-H01 is a fan timer board used in Heatcraft-manufactured and Lennox-compatible HVAC systems to control blower operation during heating and cooling cycles. It is engineered to improve system efficiency and comfort by maintaining correct airflow timing after burner shutdown or startup. The module integrates directly into existing low-voltage control circuits, allowing reliable fan sequencing without complex configuration. Its compact electronic design supports long-term operation in HVAC control compartments.
Key Features:
- Fan Timer Control Module: Regulates blower on-delay and off-delay timing functions.
- Lennox System Compatibility: Designed for use in select Lennox HVAC systems.
- Heatcraft HVAC Application: Commonly used in Heatcraft-supported heating equipment.
- Improved Airflow Control: Ensures proper heat transfer and system efficiency.
- 24V Control Circuit Operation: Compatible with standard low-voltage HVAC controls.
- Accurate Timing Performance: Provides consistent and repeatable fan sequencing.
- Compact Control Board Design: Fits easily into standard furnace control enclosures.
- Durable Electronic Construction: Built to withstand electrical and thermal stresses.
- Service Replacement Component: Ideal for restoring proper fan operation and comfort control.
The FTC9-H01 delivers the reliability and precision required for blower fan timing and HVAC airflow management applications.
