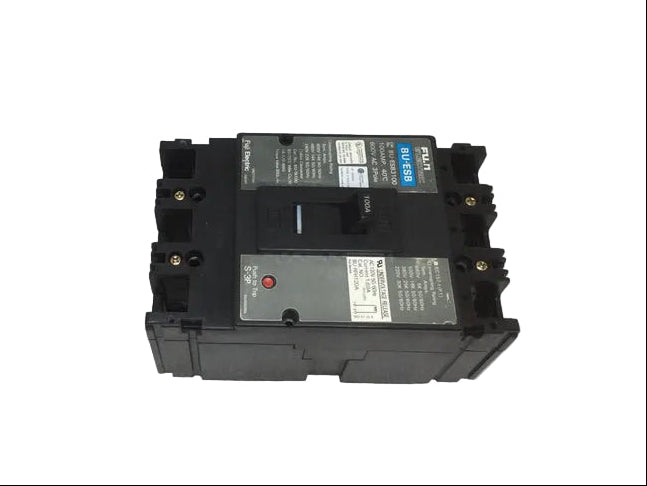

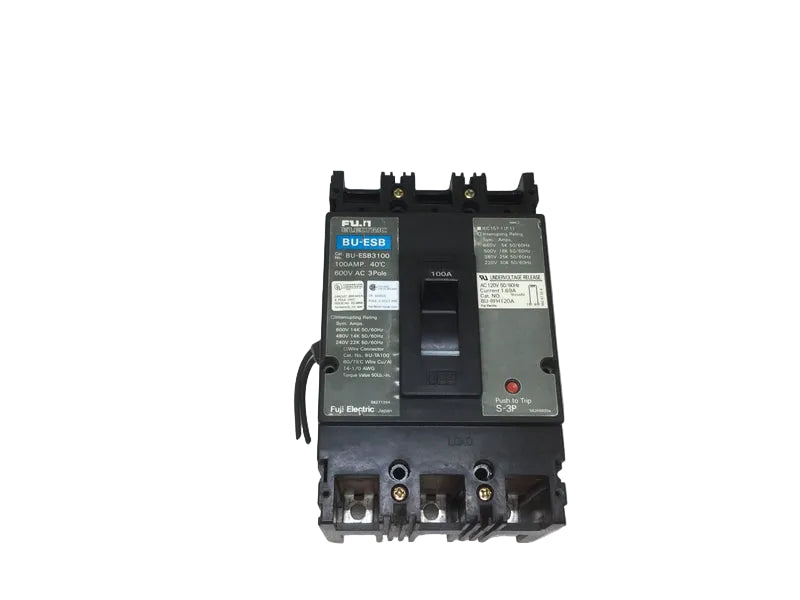

Fuji BU-ESB3100 100A 3-Pole 600V Molded Case Circuit Breaker

Description

The Fuji BU-ESB3100 is a 100 Amp, 3-pole molded case circuit breaker designed for branch circuit protection. It provides reliable overload and short-circuit protection in 600 VAC electrical systems. This breaker includes an undervoltage release rated at 120 VAC, 50/60 Hz, making it suitable for industrial and commercial applications.

Technical Specifications

Information About BU-ESB3100

The BU-ESB3100 is part of Fuji’s BU-ESB series of molded case circuit breakers, engineered for high-reliability circuit protection. It features a thermal-magnetic trip mechanism to safeguard circuits from both overloads and short circuits. The breaker has a frame size of 100AF and a 14kA interrupting capacity at 480V. It is designed for three-phase branch circuits and incorporates an undervoltage release for enhanced operational safety.

Key Features:

• Series: BU-ESB Series molded case circuit breaker for industrial use.
• Poles: 3-pole configuration for three-phase systems.
• Current Rating: 100 Amp continuous current handling.
• Voltage Rating: Rated for 600 VAC operation.
• Trip Type: Thermal-magnetic for overload and short-circuit protection.
• Interrupting Capacity: 14kA at 480V.
• Frame Size: 100AF frame for standard panel compatibility.
• Undervoltage Release: 120 VAC, 50/60 Hz, 1.69A.

The BU-ESB3100 delivers the reliability and precision required for branch circuit protection in industrial and commercial installations.
