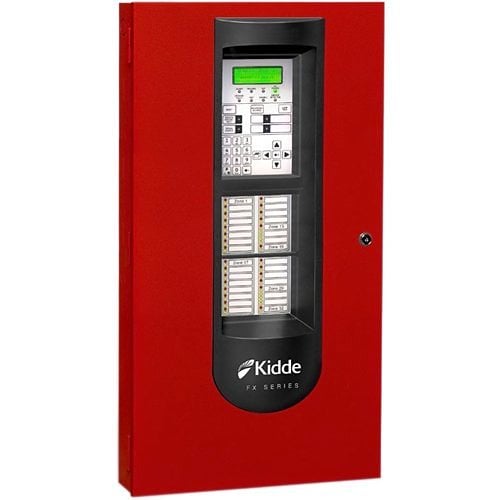

FX-1000 | Kidde 4-Loop Intelligent Addressable Fire Alarm Control Panel
- Regular price
- $1,167.00
- Sale price
- $1,167.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FX-1000
Description
The Kidde FX-1000 is an intelligent addressable fire alarm control panel with a base capacity of 250 points on one loop, expandable to 1,000 points with additional loop controller cards. It features four NACs with 6 A total output, Class A/B wiring flexibility, and support for optional dual-line dialer communication.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Kidde |
| Category | Fire Alarm Systems |
| Part Number | FX-1000 |
| Subcategory | Addressable Fire Alarm Control Panel |
| Type | Intelligent Addressable FACP |
| Point Capacity | 250 (125 detectors + 125 modules), expandable to 1,000 |
| SLC Loops | 1 loop installed, expandable to 4 with cards |
| NAC Circuits | 4 Class B or 2 Class A, 2.5 A each, 6 A total |
| Primary Power | 120 VAC, 60 Hz, 2.0 A max |
| Accessory Power | 27.4 VDC, 2.5 A power-limited |
| Battery Support | Two 18 Ah internal batteries, 26 Ah charging capacity |
| Communicator | Optional SA-DACT dual-line dialer/modem (Contact ID) |
| Programming Features | Auto-programming, rotary addressing, adjustable detector sensitivity |
| System Features | Ground fault detection by module, retrofit wiring support |
| Operation | Standalone or networked |
| Enclosure | Surface mount, red |
| Dimensions | 15.75 in W × 3.85 in D × 28.00 in H |
| Weight | 16 lbs |
Information About FX-1000
The FX-1000 is a Kidde FX-Series addressable fire alarm control panel designed for scalable system installations. Out of the box, it supports 250 addressable points on one loop and can expand to 1,000 points through additional loop cards. The panel provides four NAC outputs with a total of 6 amps, configurable as either Class A or Class B, and delivers 27.4 VDC regulated accessory power for system peripherals. With features such as auto-programming, rotary addressing, adjustable detector sensitivity, and ground fault detection by module, the FX-1000 simplifies commissioning while maintaining high reliability.
Key Features:
- Scalable Capacity: Supports 250 addressable points per loop, expandable to 1,000 with four SLC loops.
- Flexible NAC Outputs: Includes four NACs, configurable as four Class B or two Class A, rated at 6 amps total.
- Easy Installation: Auto-programming and rotary addressing reduce setup time and simplify configuration.
- Reliable Communication: Supports optional SA-DACT dual-line dialer for central station reporting.
- System Compatibility: Works with detectors, modules, and peripherals across the FX-Series.
- Power Support: Provides 27.4 VDC regulated accessory power and battery charging up to 26 Ah.
- Retrofit-Friendly: Designed to use existing wiring in many upgrade applications.
- Advanced Detection: Offers adjustable detector sensitivity and module-based ground fault detection.
- Standalone Operation: Functions independently or as part of larger integrated fire alarm networks.
- Durable Enclosure: Housed in a red surface-mounted cabinet for secure and accessible installation.
The FX-1000 delivers the reliability and precision required for large-scale addressable fire alarm systems in commercial and institutional facilities.
