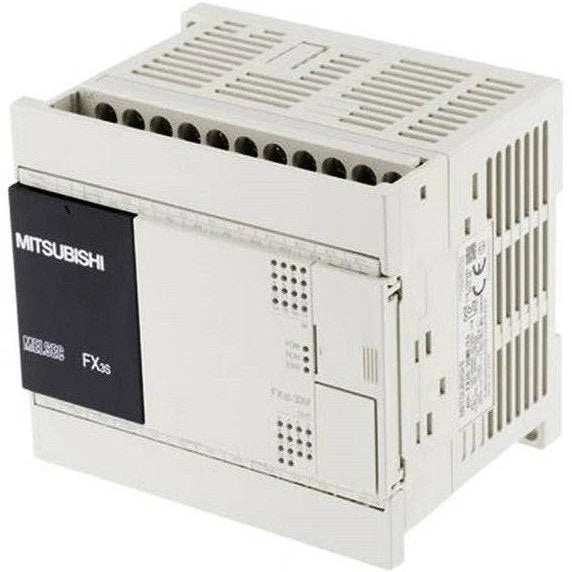

FX3S-20MR/ES | Mitsubishi CPU Units
- Regular price
- $512.00
- Sale price
- $512.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FX3S-20MR/ES
Description
The FX3S-20MR/ES is a programmable logic controller (PLC) unit belonging to the FX3S series. It serves as a base unit and operates within a power supply voltage range of 100-240 VAC at 50-60 Hz frequency. Additionally, it supports a 24VDC input. The unit features 8 relay outputs and accommodates 12 inputs.
Technical Specifications
|
Part # |
FX3S-20MR/ES |
|
Category |
PLCs/Machine Control |
|
Subcategory |
PLC Module/Rack Type |
|
Power Supply (V) |
100-240 |
|
Current Type |
AC |
|
Program Memory |
16K STEPS |
|
Program Memory Unit |
EEPROM |
|
Integrated Digital Inputs |
12 |
|
Integrated Digital Outputs |
8 |
|
Output Type |
RELAY |
|
Local I/O Points |
30 |
|
Local + Remote I/O Points |
30 |
|
Expandable |
NO |
|
Cycle Time LD (ns) |
210 |
|
Cycle Time MOV (ns) |
500 |
|
USB |
1 |
|
RS-422 |
1 |
|
Power Consumption (W) |
20 |
|
Buffer Battery |
NO |
|
Protection Class |
IP10 |
|
Min. Ambient Temperature (°C) |
0 |
|
Max. Ambient Temperature (°C) |
55 |
|
Series |
MELSEC-F SERIES |
Information About FX3S-20MR/ES
The FX3S-20MR/ES is a CPU unit belonging to the FX3S series of programmable logic controllers (PLCs). Designed as a base unit, it operates within a power supply range of 100-240 VAC with a frequency of 50-60 Hz. Additionally, it is compatible with 24 VDC power input.
This unit features 8 relay outputs and 12 inputs, facilitating versatile control capabilities within industrial automation applications. The relay outputs enable the control of external devices or processes, while the inputs allow for the monitoring of various signals or states within the system.
With its compact design and robust construction, the FX3S-20MR/ES offers reliability and durability in demanding environments. It is engineered to withstand operational challenges commonly encountered in industrial settings, ensuring consistent performance over extended periods.
Equipped with advanced programming functionalities, the FX3S-20MR/ES enables users to create customized logic sequences to meet specific automation requirements. Its programming interface provides intuitive tools for developing and debugging control algorithms efficiently.
The FX3S-20MR/ES adheres to industry standards and protocols, ensuring seamless integration with existing automation systems and components. It offers compatibility with common communication interfaces, facilitating connectivity with peripheral devices and networked systems.
This CPU unit is suitable for a wide range of applications across various industries, including manufacturing, process control, and facility automation. Its versatile capabilities make it a reliable choice for controlling and monitoring complex processes and machinery.
Manufacturer information
Mitsubishi Electric Corporation, established in 1921, is a leading global manufacturer of electrical and electronic products. Renowned for innovation, it specializes in automation, energy, and electronic systems, contributing to advancements across various industries worldwide.
