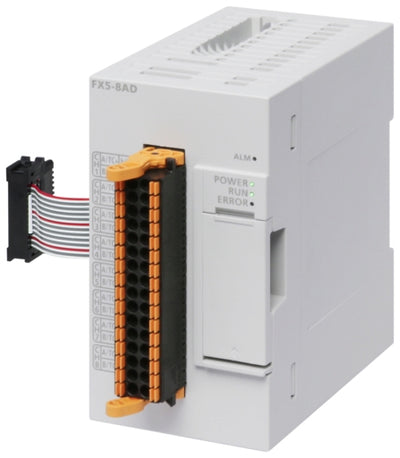

FX5-8AD | Mitsubishi Analog Input Module
- Regular price
- $584.00
- Sale price
- $584.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FX5-8AD
Description
The Mitsubishi FX5-8AD is an analog input module designed for FX5 series PLCs, providing 8 channels of high-precision analog input. It supports voltage (±10V) and current (4-20mA) signals, enabling accurate data acquisition for process control and monitoring.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Mitsubishi |
| Category |
PLCs and Accessories
|
| Part Number | FX5-8AD |
| Subcategory |
PLC Expansion Modules
|
| Weight |
0.3 kg
|
| Power Supply | 24 V |
| Current Type | DC |
| Occupied I/O Points on PLC |
8
|
| Integrated Analogue Inputs |
8
|
| Input Voltage Range |
-10-10; 0-10; 0-5; 1-5 V
|
| Input Current Range |
-20-20; 0-20; 4-20 mA
|
| Min. Ambient Temperature |
-20°C
|
| Max. Ambient Temperature | 55°C |
| Depth | 83 mm |
| Width | 50 mm |
| Height | 90 mm |
Information About FX5-8AD
The Mitsubishi FX5-8AD is an analog input module designed for the MELSEC iQ-F series PLCs, providing eight channels for precise data acquisition in industrial automation systems.
Key Specifications:
- Analog Inputs: 8 channels supporting voltage inputs (-10V to +10V, 0-10V, 0-5V, 1-5V) and current inputs (-20mA to +20mA, 0-20mA, 4-20mA).
- Resolution: 16-bit signed binary, offering high-precision measurements.
- Conversion Speed: 1 ms per channel, ensuring rapid data processing.
- Temperature Sensor Compatibility: Supports thermocouples (types K, J, T, B, R, S) and resistance temperature detectors (Pt100, Ni100) for temperature measurements.
- Power Supply: 24V DC with a current consumption of 40 mA.
- Dimensions: 50 mm (W) x 90 mm (H) x 83 mm (D); weight approximately 0.3 kg.
This module is suitable for applications requiring accurate analog signal processing, such as monitoring sensors and transducers in various industrial environments.
