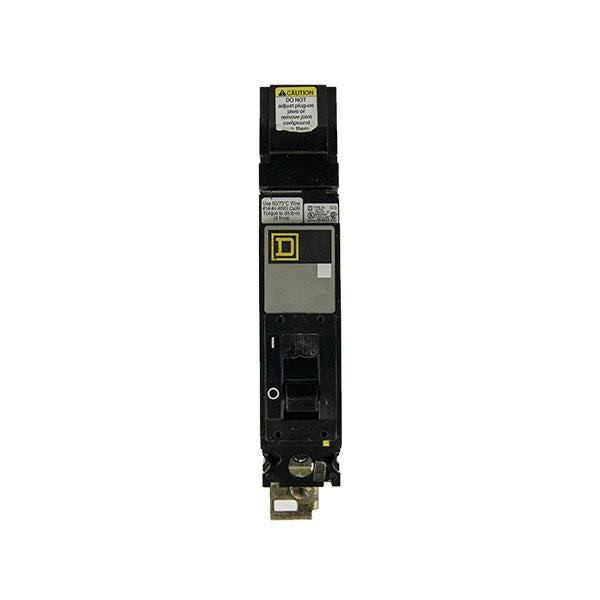

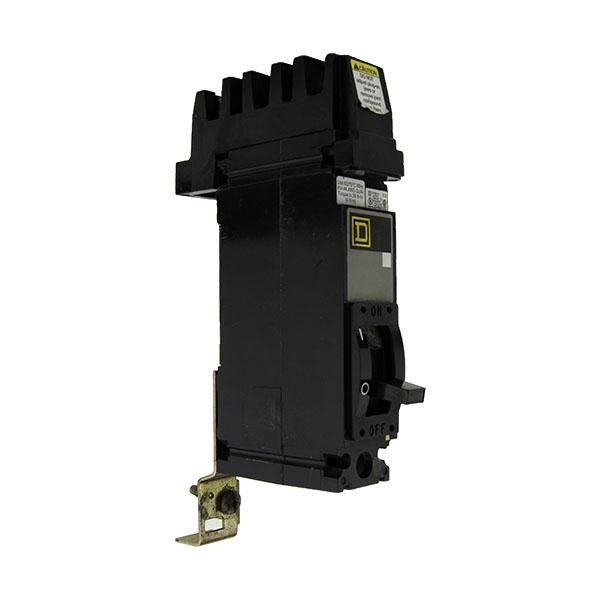

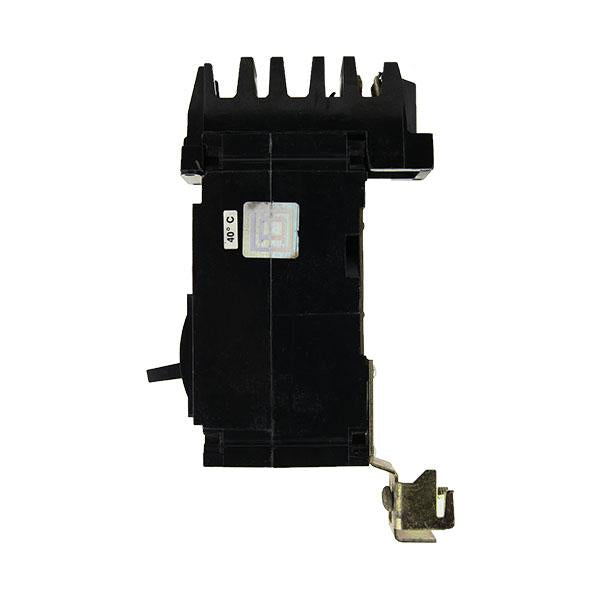

FY14015C | SQUARE D Circuit Breaker
- Regular price
- $135.00
- Sale price
- $135.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FY14015C
Description
The Square D FY14015C is a single‑pole (1 P), 15 A molded‑case circuit breaker of the I‑Line “FY” series, using thermal‑magnetic trip technology
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | SQUARE D |
| Category |
Circuit Breaker
|
| Part Number | FY14015C |
| Subcategory | Molded Case Circuit Breaker |
| Amperage | 15 Amp |
| Voltage Rating | 277 V AC |
| Interrupting Capacity (AIC) | 14 kA @ 277 VAC (also 14kA@240V) |
| Maximum Magnetic Trip | 600 Amp |
| Trip Type | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous |
| Circuit Breaker Type | MCCB (Molded Case Circuit Breaker) |
| Line Side Terminal Type | I-Line (Plug-in Style) |
| Load Side Terminal Type | Lugs |
| Frame | F Frame |
| Number of Poles | 1 Pole |
| Phase | 1 |
| Dimensions (L x W x H) | 6.4" × 1.5" × 4.13" |
| Weight | 5 lbs |
| Replacement Number |
1134919 |
Information About FY14015C
The FY14015C is part of Square D’s I-Line FY series of molded case circuit breakers (MCCBs), engineered for reliable branch protection in commercial and industrial power distribution systems. This breaker is rated for 15 amps, features a 1-pole thermal-magnetic trip mechanism, and operates at up to 277 VAC, making it ideal for lighting panels and other single-phase applications. Its I-Line plug-in construction ensures secure, tool-free mounting within I-Line panelboards, supporting faster installation and maintenance. The unit offers an interrupt rating of 14 kA at 277 VAC, suitable for medium-duty fault current environments, and is built within the robust F-frame housing format.
Key Features:
- 15 Amp Protection: Provides standard branch circuit protection for single-phase 277 V AC loads.
- Thermal-Magnetic Trip Unit: Utilizes a long-time (thermal) and instantaneous (magnetic) trip mechanism for overload and short-circuit protection.
- I-Line Plug-In Mounting: Fast and secure connection to I-Line panelboards via plug-on line terminals, reducing wiring labor and enhancing safety.
- Single-Pole Configuration: Optimized for circuits that require only one current path—ideal for lighting or branch load protection.
- 277 VAC Operation: Supports commercial lighting and equipment loads in single-phase 277V distribution systems.
- High Interrupting Capacity: Rated at 14,000 AIC @ 277V AC, enabling safe interruption of moderate fault currents.
- AL50FA Terminal Lugs: Rugged load-side lug configuration allows connection of aluminum or copper conductors.
- Compact F-Frame Size: Slim 1.5" width and 4.13" height for space-saving installations; total length is 6.4".
- UL and CSA Certified: Complies with North American electrical safety and installation standards.
The FY14015C simplifies integration into legacy I-Line panels with its compact F-frame format and plug-in mounting. Its solid interrupting capacity and thermal-magnetic protection make it a dependable choice for branch circuit protection in commercial and industrial settings where 277V single-phase systems are in use.
