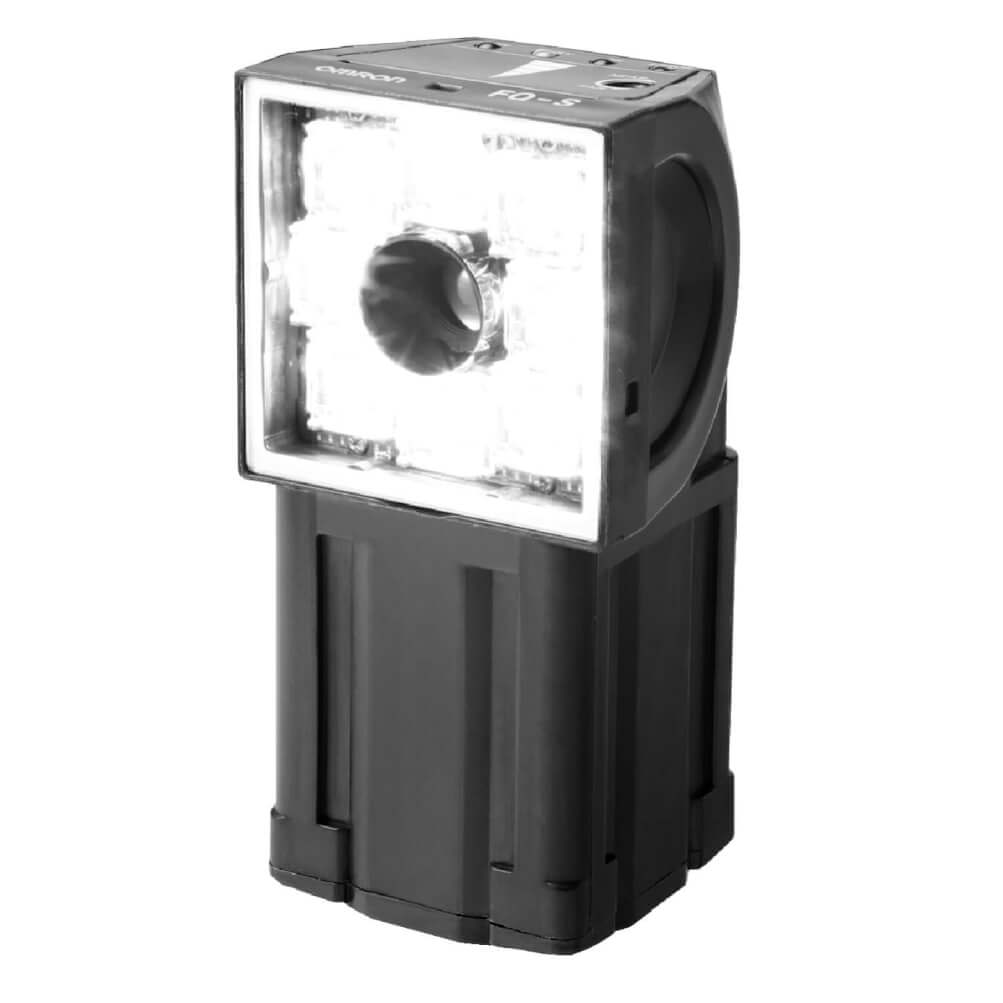

FZ-SQ100N | Omron Intelligent Compact CMOS Camera
- Regular price
- $5,217.00
- Sale price
- $5,217.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FZ-SQ100N
Description
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| BrandPart Number | Omron |
| Category |
Camera & Vision
|
| Part Number | FZ-SQ100N |
| Subcategory | Camera Accessory |
| Sensor Type | Color CMOS with Global Shutter |
| Resolution | 0.3 Megapixel (752 × 480 pixels) |
| Frame Rate | 60 Frames Per Second (FPS) |
| Focus Range (Short-Distance) | 32 to 380 mm |
| Focus Range (Wide View) | 29 to 300 mm |
| Built-in Lighting | High-Intensity LED Illumination |
| Protection Rating | IP10 |
| Mounting Type | Chassis Mount / Panel Integration |
| Typical Applications | Positioning, Inspection, Measurement |
| Compatible Systems | Omron FH / FZ Series Controllers |
| Scan Rate | 60 scans/s |
| Light Source |
External |
| Weight | 0.331 lbs |
Information About FZ-SQ100N
The Omron FZ-SQ100N is a compact intelligent CMOS vision camera designed for high-speed, short-distance imaging in industrial inspection systems. As part of Omron’s FZ and FH Series vision platforms, this camera combines a 0.3-megapixel CMOS sensor with integrated high-intensity LED lighting in a space-saving chassis. Offering short-distance and wide-view focus options, the FZ-SQ100N captures distortion-free images at up to 60 frames per second, making it ideal for positioning, measurement, and quality control tasks in constrained production environments.
Key Features:
- 0.3 Megapixel CMOS Sensor: 752 × 480 resolution with 1/3″ color CMOS and global shutter for clear, undistorted images.
- High-Speed Imaging: Operates at 60 frames per second for fast-moving production lines.
- Short-Distance Focus: Supports imaging at distances from 32 mm to 380 mm for close-up inspections.
- Wide-View Capability: Allows imaging from 29 mm to 300 mm for broader field-of-view applications.
- Integrated LED Lighting: Built-in high-power LED ensures consistent illumination and stable image quality.
- RS-485 Vision System Compatibility: Integrates seamlessly with Omron FH and FZ Series vision systems for real-time processing and control.
- IP10 Protection Rating: Suitable for clean, controlled industrial environments.
- Compact Design: Chassis-mountable unit designed for installations where space is limited.
The Omron FZ-SQ100N delivers efficient, high-speed vision inspection for automated manufacturing. Its built-in illumination, global shutter sensor, and flexible focus ranges make it an optimal solution for machine vision tasks requiring compact, integrated imaging hardware.
