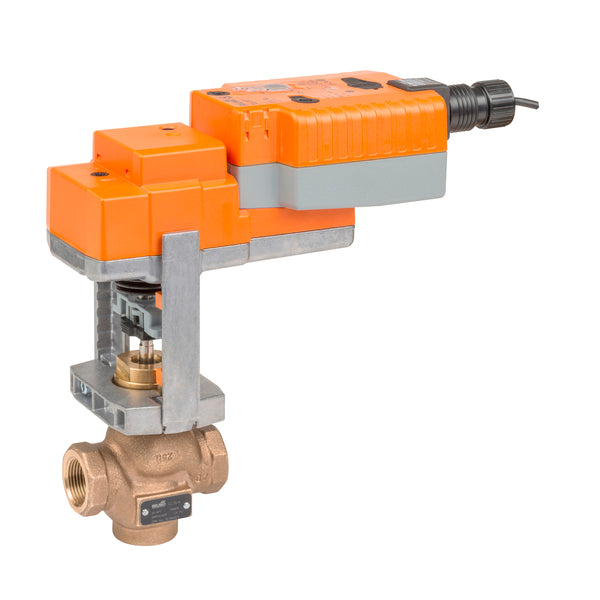

G240B-N+LVKB24-SR | Belimo 1.5 Inch Two Way Globe Control Valve With Electronic Fail Safe Actuator
- Regular price
- $1,399.00
- Sale price
- $1,399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: G240B-N+LVKB24-SR
Description
The Belimo G240B-N+LVKB24-SR is a 1.5-inch, 2-way globe control valve assembly engineered for precise modulating control in hydronic and steam systems. It combines an ANSI Class 250 bronze globe valve with an electronic fail-safe 24 V actuator for reliable flow regulation and safety positioning.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | Control Valves |
| Part Number | G240B-N+LVKB24-SR |
| Subcategory | Globe Valves |
| Valve Type | Globe Valve (GV) |
| Valve Size | 1.5 in (DN 40) |
| Flow Pattern | 2-way |
| Cv Rating | 28 |
| Flow Characteristic | Modified equal percentage |
| Rangeability | 100:1 |
| Leakage Rate | ANSI Class VI |
| Body Pressure Rating | ANSI Class 250, up to 400 psi below 150°F |
| Close-Off / Differential Pressure | Steam ΔP max 20 psi |
| Maximum Inlet Pressure (Steam) | 35 psi |
| Pipe Connection | Female NPT |
| Fluid Compatibility | Chilled or hot water (up to 60% glycol), steam |
| Fluid Temperature Range | 20…280°F (-7…138°C) |
| Valve Body Material | Bronze |
| Valve Plug | Brass |
| Stem Material | Stainless steel |
| Seat Material | Bronze |
| Actuator Type | Electronic fail-safe, modulating |
| Actuating Force | 115 lbf (500 N) |
| Stroke | 0.75 in (19 mm) |
| Nominal Voltage | AC/DC 24 V |
| Control Signal | 2…10 V (4…20 mA with resistor) |
| Power Consumption (Running) | 2.5 W |
| Power Consumption (Rest) | 1.5 W |
| Running Time | 90 s (fail-safe <35 s) |
| Degree of Protection | IP54 / NEMA 2 |
| Weight | 12.0 lb |
Information About G240B-N+LVKB24-SR

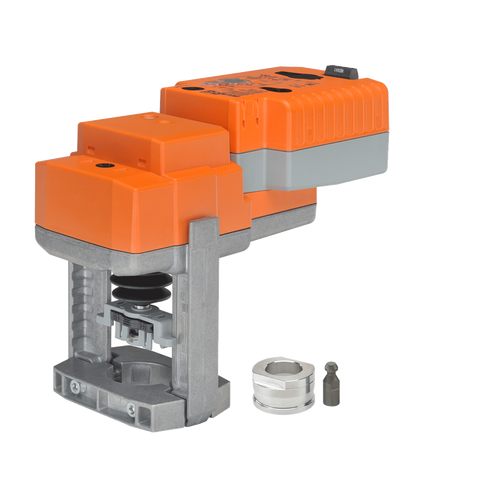

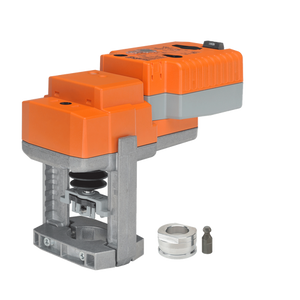

The G240B-N+LVKB24-SR belongs to Belimo’s globe valve and actuator solutions designed for applications requiring accurate modulation and secure fail-safe operation. The bronze globe valve body with stainless steel stem and ANSI Class VI shutoff ensures tight sealing and long service life under varying pressure and temperature conditions. Its factory-mounted LVKB24-SR electronic fail-safe actuator uses stored energy to drive the valve to a defined safety position during power loss, enhancing system protection. Designed for maintenance-friendly operation, repack kits are available, and the assembly supports precise control in demanding HVAC and process environments.
Key Features
- Precision Globe Valve Control: Modified equal percentage characteristic and Cv 28 rating support stable and accurate flow regulation.
- Electronic Fail-Safe Actuation: Integrated energy storage ensures automatic safety positioning during power interruptions.
- ANSI Class VI Shutoff Performance: Provides tight sealing for dependable isolation and control.
- Broad Fluid Compatibility: Suitable for chilled water, hot water with glycol mixtures, and steam applications.
- High-Quality Valve Construction: Bronze body, brass plug, and stainless steel stem enhance durability and corrosion resistance.
- Configurable Modulating Control: Supports 2…10 V modulation with optional 4…20 mA input and adjustable fail-safe direction.
- Service-Oriented Design: Manual override, mechanical position indication, and available repack kits simplify maintenance.
The G240B-N+LVKB24-SR delivers the reliability and precision required for modulating globe valve control in commercial and industrial HVAC systems.
