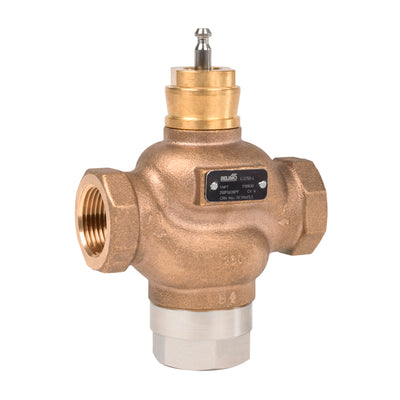

Belimo G332B-M 1-1/4 Inch 3-Way 20 Cv Bronze Globe Valve
- Regular price
- $599.00
- Sale price
- $599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: G332B-M
Description
The Belimo G332B-M is a 1-1/4 inch 3-way globe valve designed for mixing and diverting control in commercial HVAC hydronic systems. With a 20 Cv flow coefficient, bronze body, and ANSI Class 250 pressure rating, it controls chilled water, hot water, and water/glycol mixtures in applications such as air-handling units and fan coils.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | HVAC |
| Part Number | G332B-M |
| Subcategory | Globe Valves |
| Product Type | 3-Way Globe Valve |
| Valve Size | 1-1/4 in [32 mm] |
| Cv Rating | 20 |
| Flow Pattern | 3-Way Mixing/Diverting |
| Fluid | Chilled or Hot Water, Up to 60% Glycol |
| Fluid Temperature Range | 20°F to 280°F [-7°C to 138°C] |
| Body Pressure Rating | ANSI Class 250, Up to 400 psi Below 150°F |
| Flow Characteristic | Modified Equal Percentage; Linear B–AB |
| Rangeability | A-Port 100:1; B-Port 50:1 |
| Leakage Rate | ANSI Class VI |
| Pipe Connection | NPT Female Ends |
| Valve Body | Bronze |
| Valve Plug | Brass |
| Spindle | Stainless Steel |
| Spindle Seal | EPDM O-Ring |
| Seat Material | Bronze |
| Suitable Actuators | SVB(X), NF, SVKB(X) |
Information About G332B-M
The G332B-M is a Belimo 3-way globe valve constructed with a bronze body, brass plug, stainless-steel spindle, and EPDM O-ring spindle seal. It uses 1-1/4 inch NPT female connections and supports chilled or hot water containing up to 60% glycol over a fluid temperature range of 20°F to 280°F (-7°C to 138°C). The valve provides a modified equal-percentage flow characteristic through the A port and linear B-to-AB operation, with rangeability of 100:1 at the A port and 50:1 at the B port. It is designed for compatible Belimo SVB(X), NF, and SVKB(X) actuator configurations and supports both mixing and diverting HVAC applications.
Key Features:
- 3-Way Flow Control: Supports mixing and diverting configurations in hydronic HVAC piping systems.
- 20 Cv Capacity: Provides a rated flow coefficient of 20 for controlled fluid distribution.
- 1-1/4 Inch Connections: Uses NPT female pipe connections for standard threaded installation.
- ANSI Class 250 Rating: Rated for body pressures up to 400 psi at fluid temperatures below 150°F.
- Wide Fluid Temperature Range: Handles chilled or hot water from 20°F to 280°F (-7°C to 138°C).
- Glycol Compatibility: Suitable for water mixtures containing up to 60% glycol.
- ANSI Class VI Leakage: Provides a defined tight leakage classification for controlled close-off performance.
- Serviceable Construction: Repack kits are available for servicing the valve stem sealing components.
The G332B-M delivers the reliability and precision required for mixing and diverting flow control in commercial HVAC hydronic systems.
