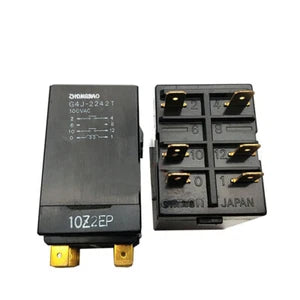

G4J-2242T | Omron G4J Series DPDT Power Relay 24VDC Coil 25A 250VAC
- Regular price
- $652.00
- Sale price
- $652.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: G4J-2242T
Description
The Omron G4J-2242T Power Relay is a high-capacity, double-pole double-throw (DPDT) relay engineered for switching AC or DC loads in industrial and commercial equipment. It operates reliably across a wide voltage range and is built to handle high inrush and resistive currents, making it suitable for power control, motor systems, and heavy-duty applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation and Controls |
| Part Number | G4J-2242T |
| Subcategory | Power Relays |
| Series | G4J |
| Type | Power Relay |
| Contact Form | DPDT (Double Pole, Double Throw) |
| Coil Voltage | 24 VDC (typical for series variant) |
| Contact Rating | Up to 25 A at 250 VAC / 30 VDC (resistive load) |
| Contact Material | Silver alloy (AgSnO₂) |
| Operating Voltage Range | 80% to 110% of rated coil voltage |
| Coil Power Consumption | Approx. 1.2 W |
| Dielectric Strength | 2000 VAC between coil and contacts for 1 minute |
| Insulation Resistance | ≥100 MΩ at 500 VDC |
| Mechanical Life | ≥10 million operations (no load) |
| Electrical Life | ≥100,000 operations (rated load) |
| Mounting Type | Plug-in or panel mount (with socket) |
| Terminal Type | Quick-connect / screw socket compatible |
| Ambient Operating Temperature | -25°C to +55°C |
| Enclosure Type | Sealed, dust-resistant housing |
| Weight | Approx. 90 g |
| Certifications | UL, CSA, CE approved |
| Country of Origin | Japan |
| Application | Power control, motor switching, HVAC, automation systems |
Information About G4J-2242T
The G4J-2242T belongs to Omron’s G4J Series of compact, high-current power relays designed for general-purpose and industrial control use. This relay features a DPDT contact configuration that allows switching of two independent circuits simultaneously, supporting both AC and DC loads. Its plug-in terminal design simplifies installation and maintenance in control panels or relay sockets. The relay’s robust construction, high insulation resistance, and dependable contact performance make it ideal for use in HVAC systems, lighting panels, industrial automation, and power distribution assemblies.
Key Features:
- High-Current Capability: Designed to switch large AC or DC loads in industrial environments.
- DPDT Contact Configuration: Controls two circuits simultaneously with independent switching.
- Compact Design: Fits easily into standard control panels and relay sockets.
- Durable Construction: Long electrical and mechanical life for continuous-duty applications.
- Plug-In Terminals: Simplifies mounting, replacement, and wiring.
- High Dielectric Strength: Provides excellent isolation between coil and contact circuits.
- Versatile Applications: Suitable for power systems, HVAC, lighting, and motor control.
- Omron Reliability: Manufactured to strict quality standards for consistent performance.
The G4J-2242T delivers the reliability and precision required for high-capacity switching in industrial and commercial power systems.
