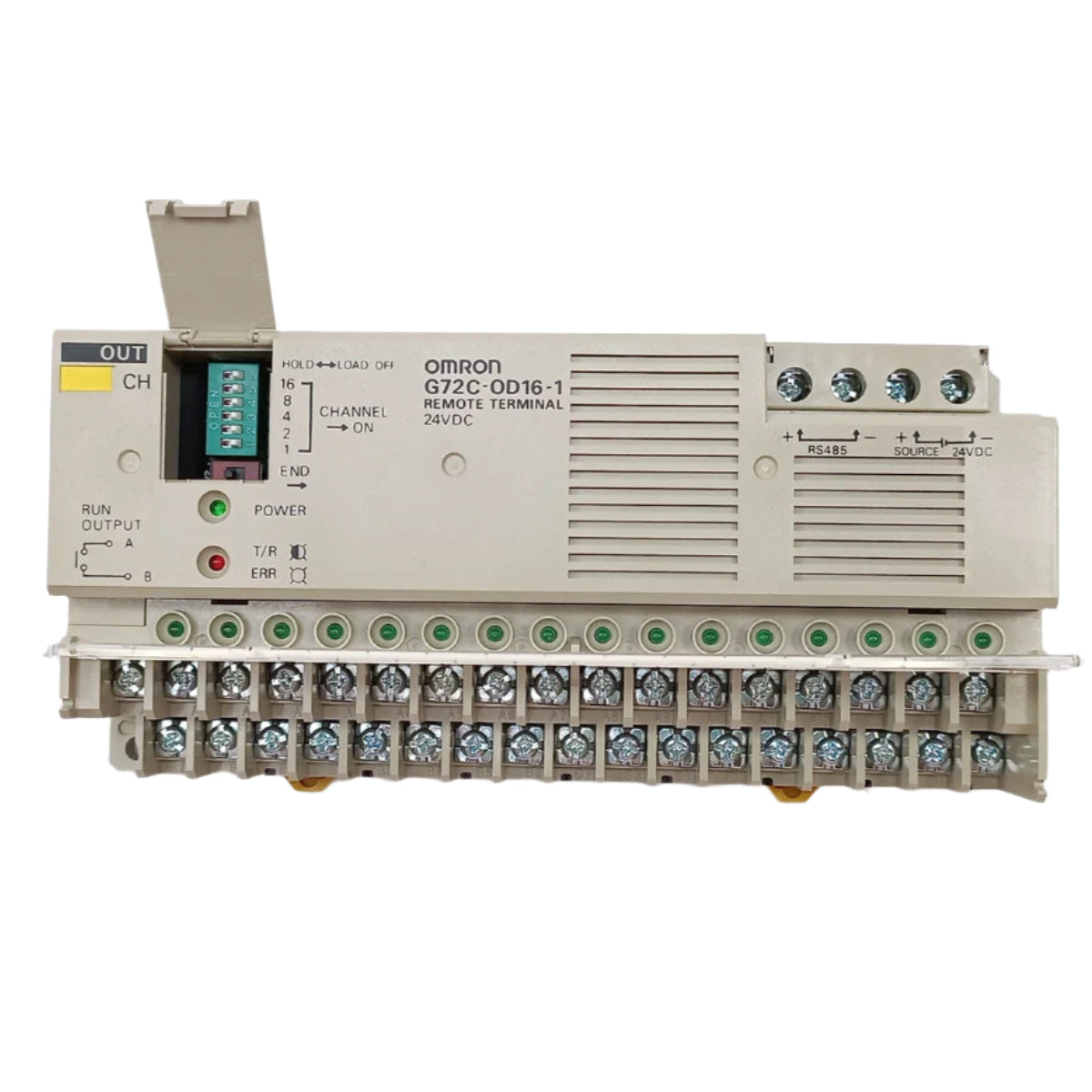

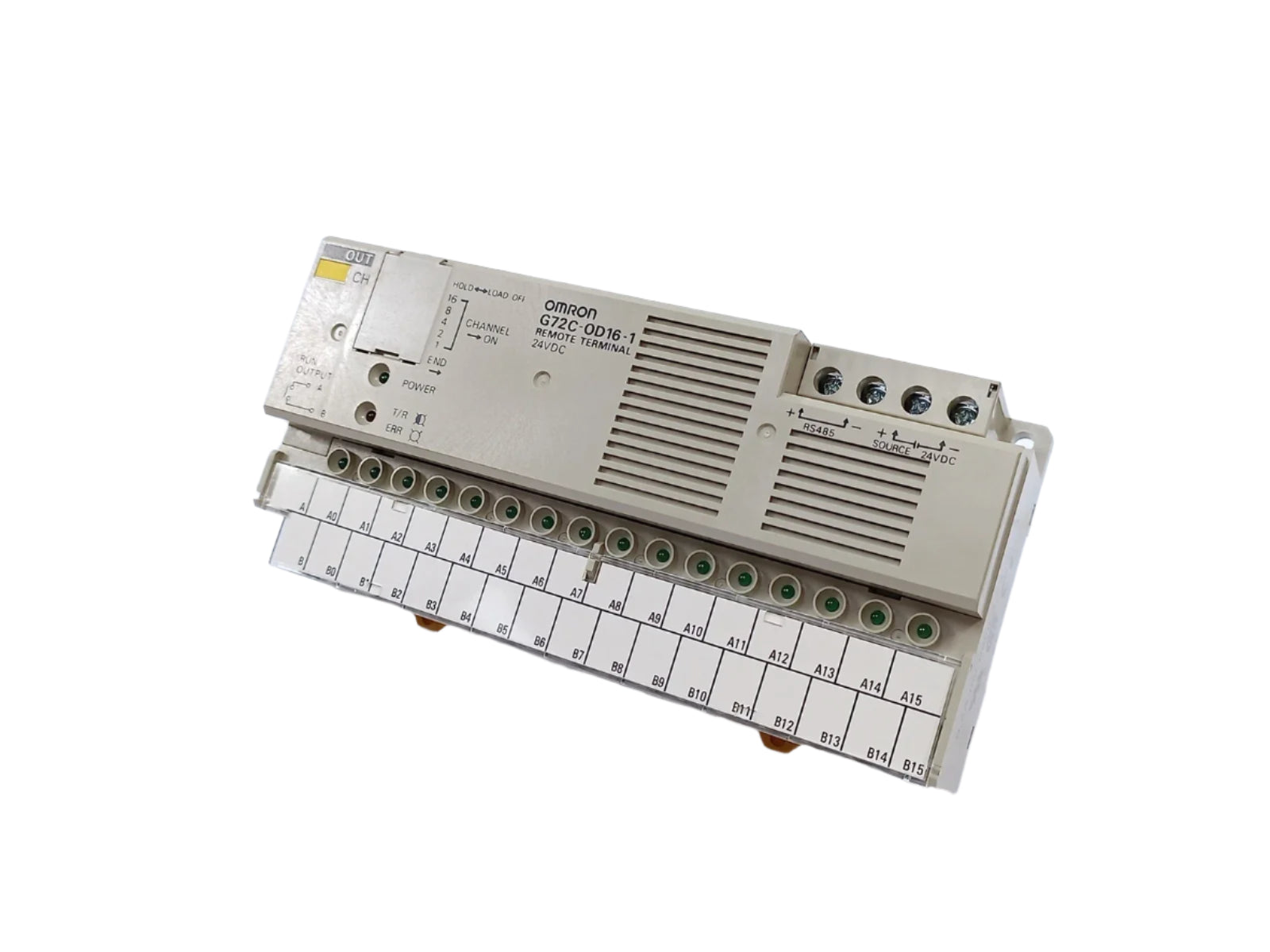

G72C-OD16-1 | Omron 16-Point 24VDC PNP Solid-State Remote Output Terminal
- Regular price
- $1,199.00
- Sale price
- $1,199.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: G72C-OD16-1
Description
The Omron G72C-OD16-1 is a 16-point remote output terminal designed for 24 VDC PNP solid-state control applications. It provides fast switching response and reliable performance in distributed I/O systems using the SYSMAC platform.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Remote I/O Modules |
| Part Number | G72C-OD16-1 |
| Subcategory | Transistor Output Modules |
| Series | G72C |
| Product Type | SYSMAC Transistor Remote Module |
| Rated Input Voltage | 24 VDC |
| Input Current | 9.7 mA/point |
| ON Delay Time | 1.5 ms max |
| OFF Delay Time | 1.5 ms max |
| Number of Circuits | 16 points (8 points/common) |
| ON Voltage | 15 VDC max |
| OFF Voltage | 5.6 VDC max |
| Insulation Method | Photocoupler |
| Input Indication | LEDs (green) |
| Rated Output Current | 0.3 A/point |
| Residual Voltage | 1.2 V max |
| Output Type | PNP |
| Output Form | Solid State |
| Weight | 0.49 lbs |
Information About G72C-OD16-1
The G72C-OD16-1 is part of the Omron G72C Series, engineered for efficient remote output control in automation environments. This model features a compact 16-point output configuration, with 8 points per common, offering optimized space usage and clear LED indication for each channel. It supports 24 VDC operation with a solid-state PNP output structure and uses photocoupler insulation for enhanced electrical isolation and durability. The module is compatible with SYSMAC transistor remote systems, making it suitable for decentralized control architectures in industrial automation.
Key Features:
-
16-point PNP output: Supports 16 transistor-based PNP outputs with 8 points per common for flexible device control.
-
Solid-state design: Uses transistor switching instead of mechanical relays, reducing wear and improving longevity.
-
Fast response time: Offers maximum ON/OFF delay of 1.5 ms for reliable high-speed signal handling.
-
LED status indicators: Each output is equipped with a green LED for quick visual confirmation of output status.
-
Photocoupler isolation: Ensures safe electrical separation between control and output sides to protect system components.
-
Low residual voltage: Maintains output voltage below 1.2 V when ON to ensure compatibility with sensitive loads.
-
Output current capacity: Handles up to 0.3 A per point, suitable for common industrial actuators and indicators.
-
Defined switching levels: Operates correctly with ON voltage up to 15 VDC and OFF voltage under 5.6 VDC.
The G72C-OD16-1 delivers the reliability and precision required for compact, fast-response output control in industrial remote I/O systems.
