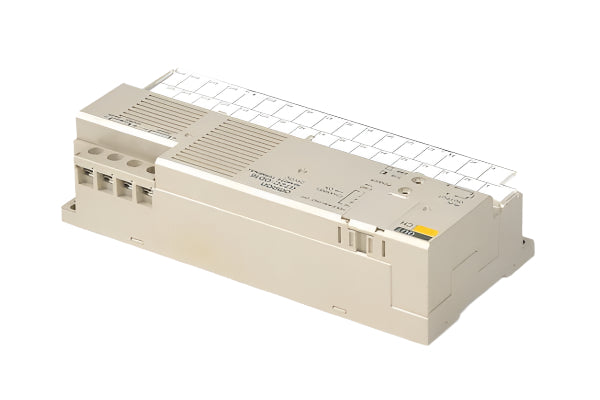

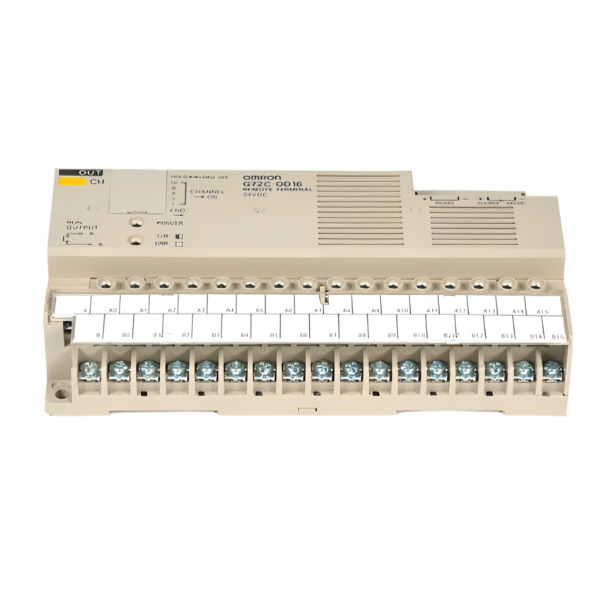

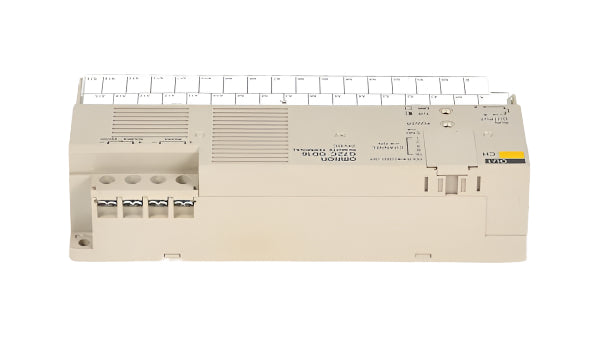

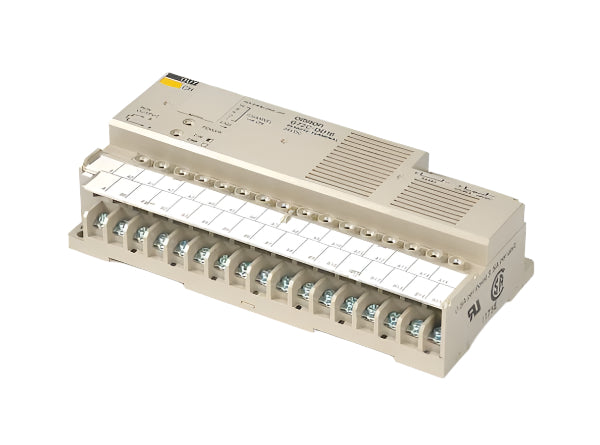

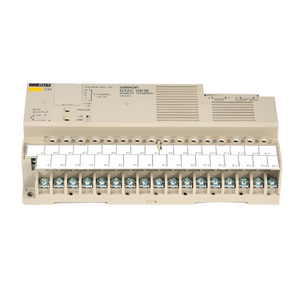

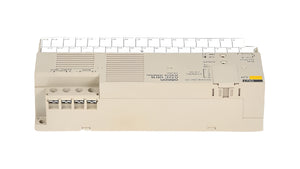

G72C-OD16 | Omron 16-Point NPN 24VDC Transistor Output Module
- Regular price
- $395.00
- Sale price
- $395.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: G72C-OD16
Description
The Omron G72C-OD16 is a 16-point NPN remote output module designed for 24 VDC transistor-based control in industrial systems. It provides solid-state switching and reliable output management for CVM1-series remote I/O terminals.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Remote I/O Modules |
| Part Number | G72C-OD16 |
| Subcategory | Transistor Output Modules |
| Series | CVM1 |
| Product Name | Transistor Remote Module |
| Rated Voltage | 24 VDC |
| Internal I/O Common | NPN (-- common) |
| I/O Points | 16 points per module |
| Number of Circuits | 16 points (8 points/common) |
| Classification | For output |
| Rated Output Current | 0.3 A/point |
| Residual Voltage | 1.2 V max |
| Leakage Current | 100 µA max |
| Insulation Method | Photocoupler |
| Input Indication | LEDs (green) |
| Output Type | NPN |
| Output Form | Solid State |
| Weight | 0.85 lbs |
Information About G72C-OD16
The G72C-OD16 is part of Omron’s CVM1 series and serves as a transistor remote output module for decentralized control architectures. Designed with NPN open-collector logic and 16 output points per module (8 points per common), it allows for effective control of output devices in compact automation systems. The module integrates green LED indicators for real-time status feedback and uses photocoupler isolation to enhance system safety. With 0.3 A rated output per point and minimal residual voltage, it supports accurate switching for solenoids, relays, and other output loads in factory environments.
Key Features:
-
16-point NPN output: Offers 16 transistor outputs grouped as 8 points per common for organized load distribution.
-
Transistor switching: Solid-state design provides long life and reliable performance without mechanical contact wear.
-
Fast switching speed: ON/OFF delays are minimized to support high-speed industrial automation processes.
-
LED output indicators: Green LEDs show the ON/OFF status of each output channel for quick diagnostics.
-
Photocoupler insulation: Provides safe and efficient electrical isolation between logic and output sides.
-
Low leakage and residual voltage: Maintains 1.2 V max residual voltage and ≤100 µA leakage for clean switching.
-
Standard output current: Delivers up to 0.3 A per point to operate standard automation devices.
The G72C-OD16 delivers the reliability and precision required for distributed transistor output applications in industrial control systems.
