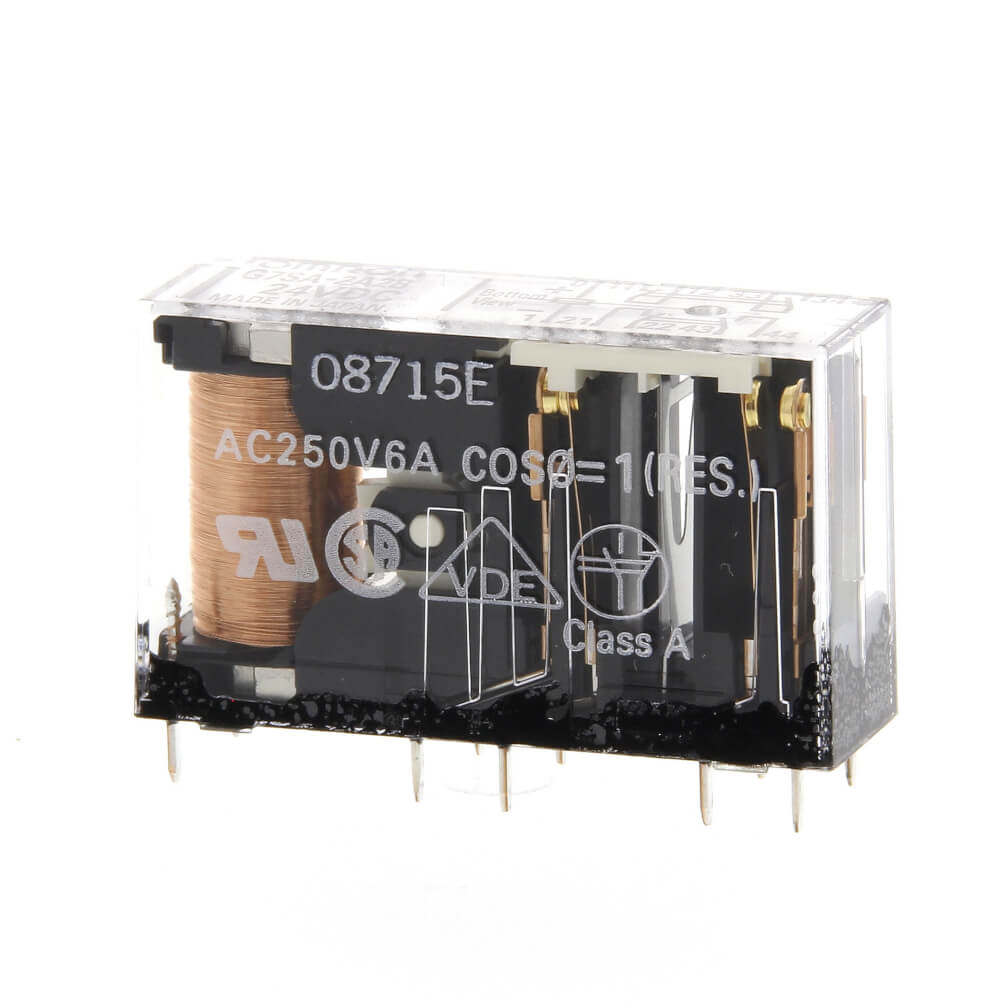

G7SA-4A2B | Omron Safety (Sti) DC24 Safety Relay
- Regular price
- $49.00
- Sale price
- $49.00
- Regular price
-
Do you need more quantity?
Product Description P/N: G7SA-4A2B
Description
Omron Relay with Forcibly Guided Contacts 6-poles (4PST-NO, 2SPST-NC contact configuration), 24 VDC coil voltage, flux-tight sealing.
Technical Specifications
Brand | OMRON |
Category | Safety Systems |
Part Number | G7SA-4A2B |
Subcategory | Safety Relay |
Coil Voltage | 24 VDC Coil |
Contact Configuration | 4PST-NO / DPST-NC |
Contact Material | Au Plating + Ag Alloy |
Degree of Protection | Flux Tight |
Product Family | G7SA |
Terminal Style | PCB Terminal |
Product Type | Safety Relay |
Relay Features | With Forcibly Guided Contacts |
Mounting Type | Socketable, Through Hole |
Contact Rating (Current) | 6 A |
Switching Voltage | 250VAC, 125VDC - Max |
Must Operate Voltage | 18 VDC |
Must Release Voltage | 2.4 VDC |
Operate Time | 20 ms |
Release Time | 10 ms |
Operating Temperature | -40°C ~ 85°C |
Coil Current | 20.8 mA |
Coil Power | 500mW |
Coil Resistance | 1.15 kOhms |
Information About G7SA-4A2B
The G7SA-4A2B by Omron is a highly reliable DC24 safety relay, engineered to ensure the integrity of safety circuits in industrial applications. Its coil voltage of 24 VDC ensures compatibility with common industrial power sources. Featuring a contact configuration of 4PST-NO (Four Pole Single Throw Normally Open) and DPST-NC (Double Pole Single Throw Normally Closed), it provides versatile control over safety circuits.
Constructed with high-quality materials, including gold plating with silver alloy, this relay offers excellent conductivity and durability. It boasts a degree of protection against flux, ensuring reliable performance even in demanding environments. Part of the G7SA product family, it aligns with Omron's commitment to safety and reliability.
The G7SA-4A2B is designed for ease of installation and integration, featuring PCB terminals for secure connections. Its socketable, through-hole mounting type facilitates convenient installation within control panels or enclosures.
With a contact rating of 6A and maximum switching voltage of 250VAC or 125VDC, this relay is suitable for a wide range of safety applications. It operates within a temperature range of -40°C to 85°C, ensuring reliable performance in extreme environments.
Notable features include forcibly guided contacts, ensuring fail-safe operation, and rapid response times of 20 ms for operate and 10 ms for release. With a coil current of 20.8 mA and a power consumption of 500 mW, it offers efficient operation while minimizing energy consumption. With its comprehensive specifications and robust construction, the G7SA-4A2B provides a dependable solution for safety-critical applications.
Manufacturer information
OMRON Corporation, founded in 1933, is a global leader in automation, sensing, and control technologies. Headquartered in Kyoto, Japan, OMRON delivers innovative solutions for industrial automation, healthcare, electronic components, and social systems, contributing to a safer, efficient, and sustainable world.
