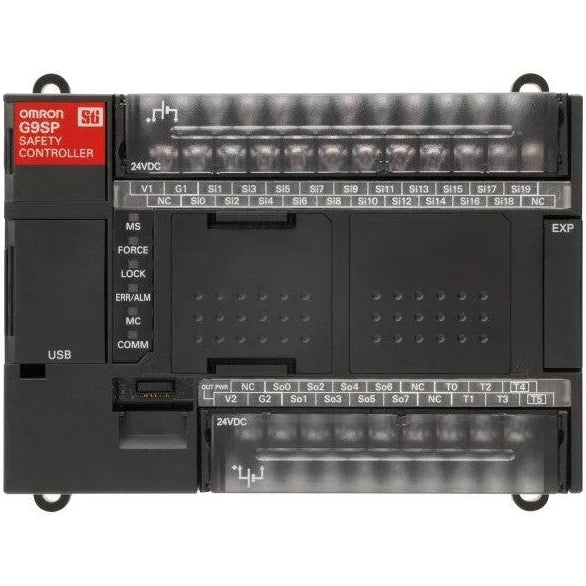

G9SP-N20S | OMRON Safety Controller, 20 Inputs, 8 Safety Outputs, 6 Test Outputs, G9SP Series
- Regular price
- $559.00
- Sale price
- $559.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: G9SP-N20S
Description
Safety controller - unit version 2.0 - OMRON / STi - M3 self-rising screw connection - with 20 x safety inputs (PNP sinking; 6mA; 11Vdc min. ON voltage; 5Vdc max. OFF voltage; between each input and G1; 1mA max. OFF current) + 8 x safety outputs (PNP sourcing; 3.2A max. / 1.2V max. ON residual voltage; between each output and V2 / 2V max. OFF residual voltage) + 6 x TEST outputs (T0/T1/T2 100mA max.; T3 300mA max.; T4/T5 30mA max.; T0-T2 and T4-T5 total 120mA max. / 1.8V max. ON residual voltage; between each output and V1) - 20.4-26.4Vac (24Vdc nom.) supply voltage - DIN rail mounting - IP20 - rated for 0...+55°C ambient - equivalent to G9SPN20S
Technical Specifications
| Brand | OMRON |
| Category | Safety Systems |
| Part Number | G9SP-N20S |
| Subcategory | Safety Controller |
| Controller Type | General Purpose |
| Number of Inputs and Type | 20 - Digital |
| Safety Outputs and Type | Solid State (8) |
| Voltage - Supply | 24VDC |
| Mounting Type | Chassis Mount, DIN Rail |
| Termination Style | Screw Terminal |
| Operating Temperature | 0°C ~ 55°C |
| Ingress Protection | IP20 |
| Features | Test Output |
| Approval Agency | CE, cUL, TUV |
Information About G9SP-N20S
The OMRON G9SP-N20S is a Safety Controller, part of the G9SP Series, designed for comprehensive safety automation. With 20 inputs, 8 safety outputs, and 6 test outputs, it ensures precise monitoring and control of safety-critical processes. This controller offers advanced safety functions, facilitating compliance with industry standards. The G9SP-N20S enhances machine and process safety by providing a reliable and programmable solution for monitoring various safety devices. Its modular design and versatile I/O options make it adaptable to a wide range of industrial applications, ensuring robust safety performance in diverse settings.
Features:
Stand-Alone Safety Controller for Small and Mid-Sized Machinery
Easy Programming for Complex Safety Control
Three Types of CPU with Different I/O Size to Suit the Application
Four Types of Expansion I/O Units for Hard-Wired Diagnosis or Standard Non-Safety Signals
Clear Diagnosis and Monitoring via Ethernet (Omron FINS Protocol), EtherNet/IP, or Serial (RS232) Connection
Supports Direct Connection with Non-Contact Switches and Safety Mats
Easy Design, Verification, Standardization and Reusage of Safety Control by Unique Programming Software
ISO 13849-1(PLe), IEC61508(SIL3) Certified
Manufacturer information
OMRON Corporation, founded in 1933, is a global leader in automation, sensing, and control technologies. Headquartered in Kyoto, Japan, OMRON delivers innovative solutions for industrial automation, healthcare, electronic components, and social systems, contributing to a safer, efficient, and sustainable world.
