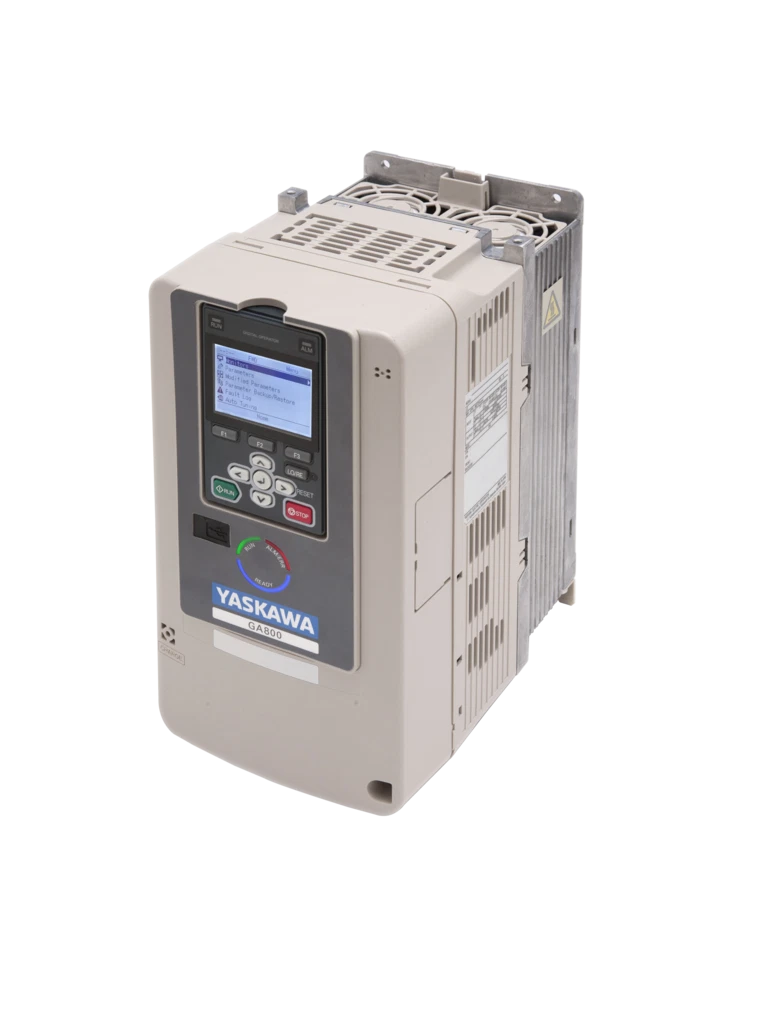

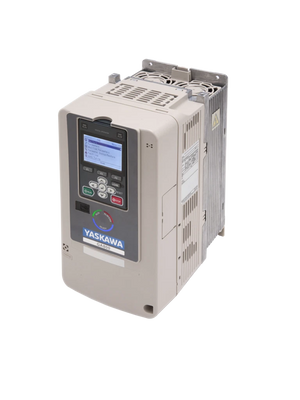

GA80U4140ABM | Yaskawa GA800 Series 100 HP Variable Speed AC Drive
- Regular price
- $12,999.00
- Sale price
- $12,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: GA80U4140ABM
Description
The Yaskawa GA80U4140ABM is a high-capacity AC drive from the GA800 series designed for precise variable-speed control of industrial motors. Rated for up to 100 HP, it operates on three-phase 400–480 VAC input and delivers robust performance for demanding motor control applications. This drive is engineered for sensorless vector control in industrial environments requiring efficiency and low harmonic distortion.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Yaskawa |
| Category | Motor Drives |
| Part Number | GA80U4140ABM |
| Subcategory | AC Drives |
| Series | GA800 |
| Drive Type | Variable Speed AC Drive |
| Control Method | Sensorless Vector (Open Loop) |
| Rated Horsepower | 100 HP |
| Rated Power (kW) | 75 kW (Normal Duty) |
| Input Voltage | 380–480 VAC |
| Input Phase | Three-Phase |
| Input Frequency | 50/60 Hz |
| Output Voltage | 380–480 VAC |
| Output Frequency | 0.01–400 Hz |
| Rated Output Current | 112 A |
| Enclosure Type | NEMA 1 / IP20 |
| Frame Size | 6 |
| Approvals | UL, CSA, CE, RCM |
| Operating Environment | Industrial (Non-Corrosive) |
| Dimensions (H × W × D) | Approx. 21.38 × 10.39 × 13.19 in |
| Weight | 84 lbs |
Information About GA80U4140ABM
The GA80U4140ABM is part of Yaskawa’s GA800 series of variable speed AC drives developed for advanced industrial motor control. It features sensorless (open-loop) vector control technology to ensure accurate speed and torque regulation without external feedback devices. The drive is housed in a NEMA 1 / IP20 enclosure suitable for panel-mounted installations in controlled environments. It is commonly used in pumps, fans, conveyors, compressors, and general industrial machinery where reliable high-power motor control is required.
Key Features:
- GA800 Series AC Drive: Designed for high-performance industrial motor control
- High Horsepower Rating: Supports motors up to 100 HP for heavy-duty applications
- Wide Input Voltage Range: Operates on 380–480 VAC three-phase power systems
- Sensorless Vector Control: Enables precise speed and torque control without encoders
- High Current Capacity: Rated for up to 112 A continuous operation
- Low Harmonics Solution: Engineered to reduce harmonic distortion in power systems
- Industrial Enclosure Design: IP20 / NEMA 1 enclosure for panel-mounted installations
The GA80U4140ABM delivers the reliability and precision required for high-power variable-speed motor control in industrial automation systems.
