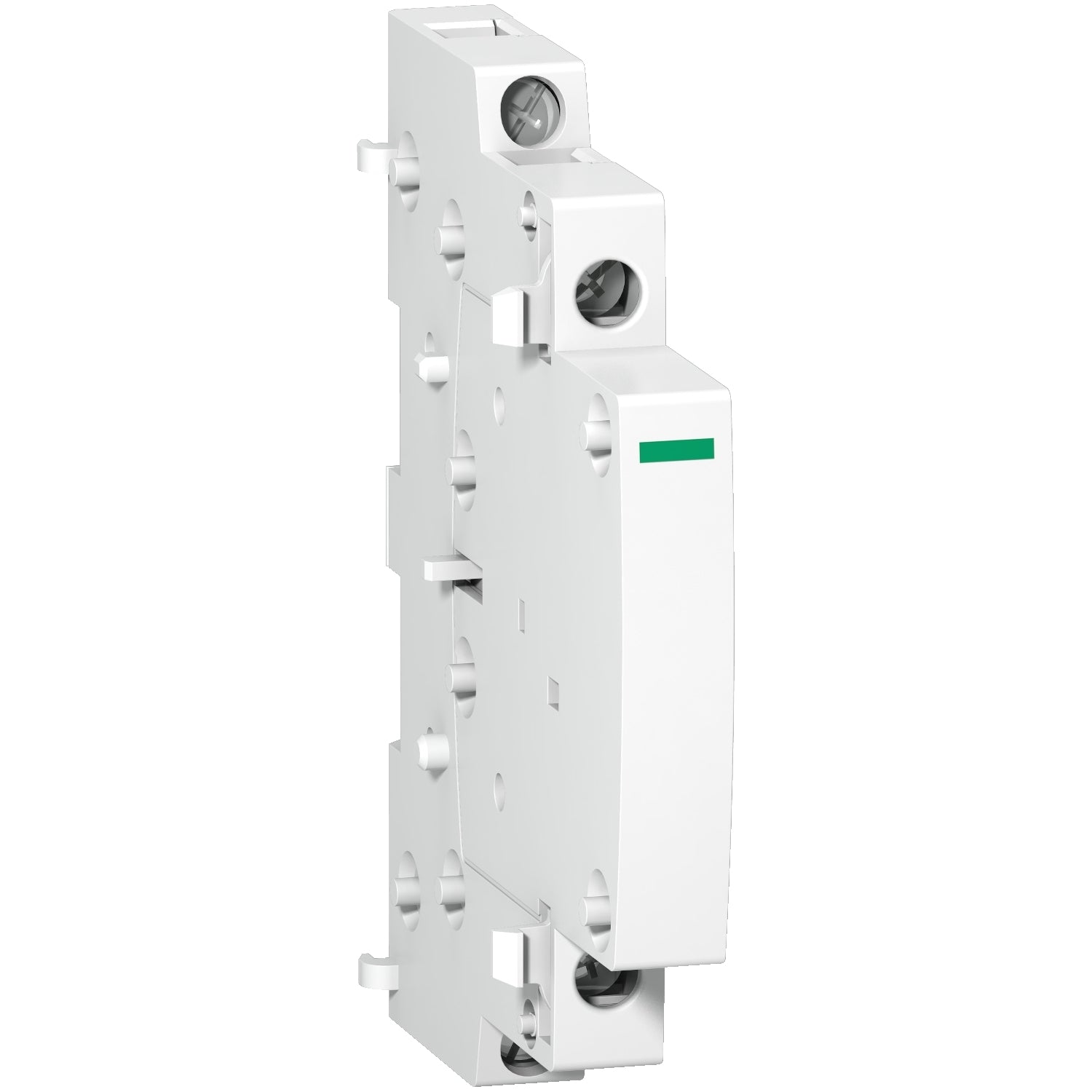

GAC0521 | Schneider Electric Auxiliary contacts block
- Regular price
- $57.00
- Sale price
- $57.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: GAC0521
Description
The GAC0521 by Schneider Electric is an auxiliary contacts block, enhancing control and monitoring capabilities in electrical systems with its reliable operation and compatibility.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | GAC0521 |
| Category | Contactors & Starters |
| Subcategory | Auxiliary Contact |
| Range | TeSys |
| Product Or Component Type | Auxiliary contact block |
| Product Compatibility | TeSys GC |
| Mounting Location | Right side |
| Pole Contact Composition | 1 NO + 1 NC |
| Rated Operational Voltage | 250 V |
| Conventional Free Air Thermal Current | 5 A (at 50 °C) |
| Rated Insulation Voltage | 500 V conforming to IEC 60947-5 500 V conforming to VDE 0110 |
| Mechanical Durability | 1 Mcycles |
| Connections - Terminals | Screw clamp terminals2.5 mm²solid Screw clamp terminals2.5 mm²flexible |
| Tightening Torque | 0.8 N.m - on screw clamp terminals |
| IP Degree Of Protection | IP20 |
| Ambient Air Temperature For Operation | -5…50 °C |
| Ambient Air Temperature For Storage | -40…70 °C |
| Operating Altitude | <= 3000 m without derating |
Information About GAC0521
The GAC0521 auxiliary contact block by Schneider Electric is specifically designed for use with TeSys GC contactors. It is mounted on the right side of the contactor for convenient accessibility. This auxiliary contact block consists of 1 normally open (NO) and 1 normally closed (NC) pole composition, providing versatile switching options.
With a rated operational voltage of 250 V and a conventional free air thermal current of 5 A at 50°C, it ensures reliable performance in various electrical applications. The rated insulation voltage conforms to IEC 60947-5 and VDE 0110 standards, ensuring safe operation up to 500 V.
Featuring screw clamp terminals, this auxiliary contact block accommodates both solid and flexible conductors up to 2.5 mm², providing secure connections. The tightening torque for screw clamp terminals is 0.8 N.m, ensuring proper fixation and preventing loosening during operation.
With an IP20 degree of protection, it offers protection against solid objects larger than 12 mm, making it suitable for indoor use. Operating within an ambient air temperature range of -5°C to 50°C and a storage temperature range of -40°C to 70°C, it ensures reliability in various environmental conditions. Additionally, it can operate at altitudes up to 3000 m without derating performance.
Overall, the GAC0521 auxiliary contact block provides a reliable and versatile solution for integrating auxiliary contacts with TeSys GC contactors, ensuring efficient and safe operation in diverse industrial applications.
