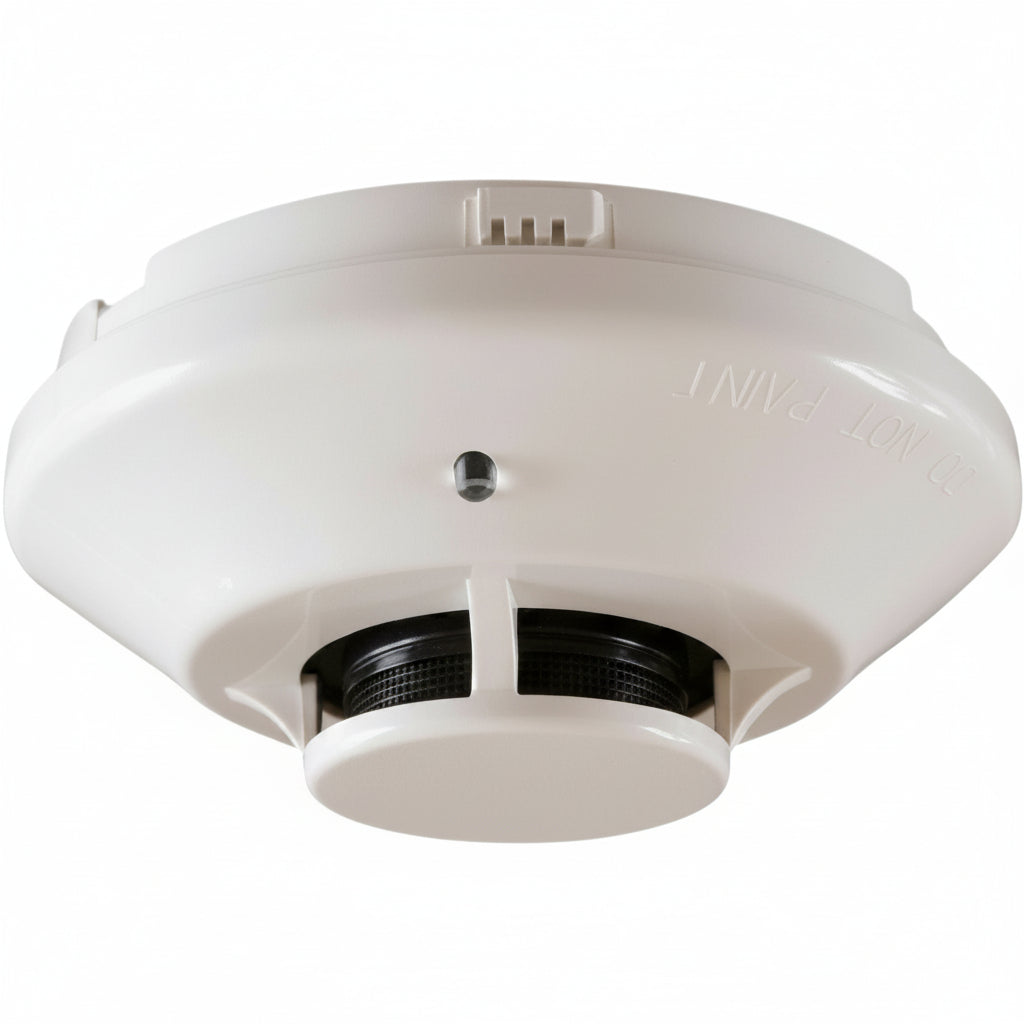

Gamewell-FCI ASD-PL2 Velociti Analog Addressable Photoelectric Smoke Detector
- Regular price
- $349.00
- Sale price
- $349.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ASD-PL2
Description
The Gamewell-FCI ASD-PL2 is an analog addressable photoelectric smoke sensor designed to detect smoke from a broad range of combustion sources. It provides continuously monitored sensitivity, individual point identification, and integral communication with compatible Gamewell-FCI fire alarm control panels.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Gamewell-FCI |
| Category | Fire Safety |
| Part Number | ASD-PL2 |
| Subcategory | Smoke Detector |
| Detection Type | Photoelectric |
| Communication Type | Analog Addressable |
| Address Range | 01–99 |
| Addressing Method | Rotary Decade Switches |
| Voltage Range | 15–32 VDC peak |
| LED Current | 6.5 mA maximum at 24 VDC |
| Operating Temperature | 32°F to 100°F (0°C to 38°C) |
| Relative Humidity | 10%–93% non-condensing |
| Sensing Chamber | Optical/photoelectric |
| Installation Type | Plug-in, separate detector base |
| Functional Test | External magnet activated |
| Weight | 0.32 lb |
Information About ASD-PL2
The ASD-PL2 is a plug-in analog addressable smoke sensor that uses a separate detector base for installation, servicing, and maintenance. Its photoelectric sensing chamber is designed to respond to smoke generated by various types of combustion. Sensitivity is programmable through the fire alarm control panel and monitored continuously for changes, including chamber contamination. The detector uses rotary address switches, dual LED indicators, and an external-magnet functional test switch for system operation and maintenance.
Key Features:
- Photoelectric Detection: Uses an optical sensing chamber to detect smoke from a wide range of combustion sources.
- Analog Addressable Communication: Provides two-way communication with compatible fire alarm control panels.
- Programmable Sensitivity: Allows detector sensitivity to be configured through control panel software.

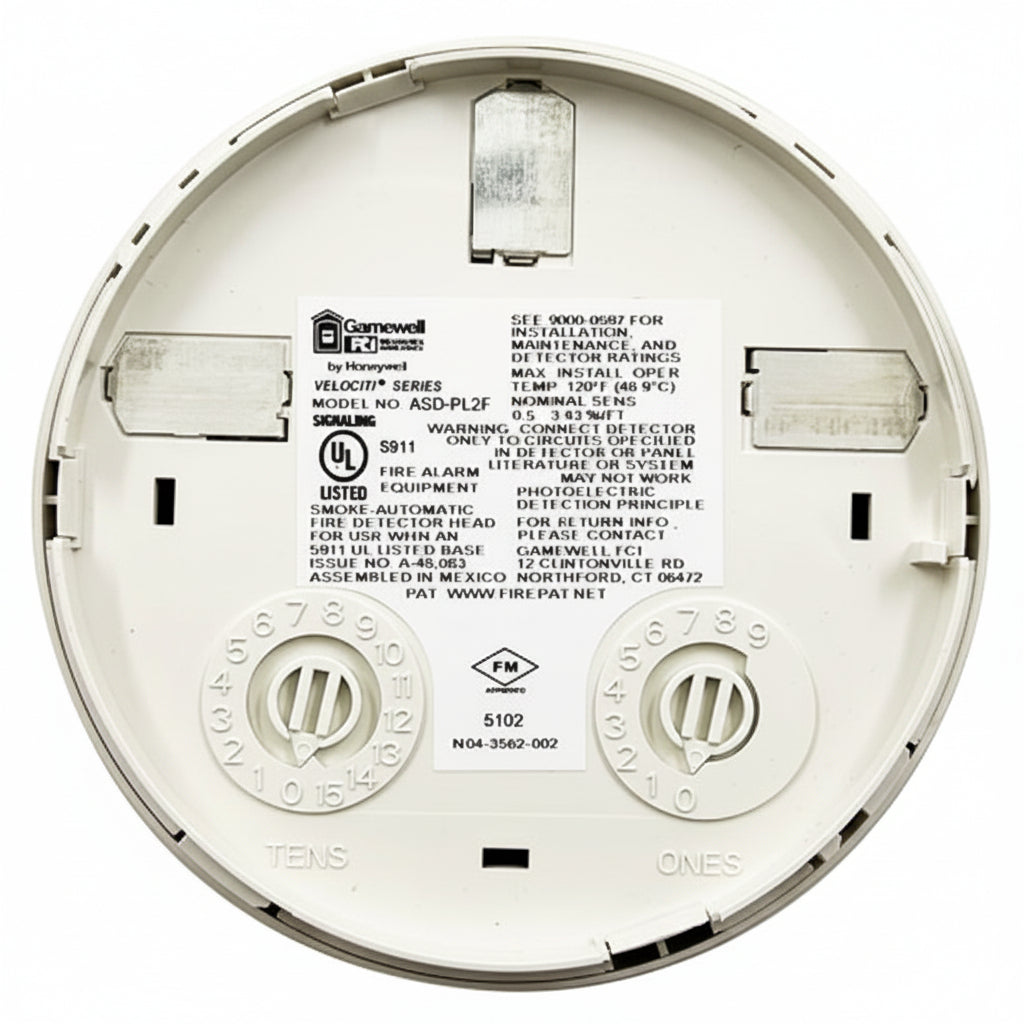

- Point Identification: Rotary switches provide individual addresses from 01 through 99.
- Chamber Monitoring: Continuously reports sensitivity and chamber contamination conditions to the control panel.
- Dual LED Indicators: Provides 360° visibility for polling and alarm status indication.
- Functional Test: Includes a test switch activated by an external magnet.
- Low-Profile Design: Provides compact detector construction with low standby current.
The ASD-PL2 delivers the reliability and precision required for analog addressable smoke detection systems.
