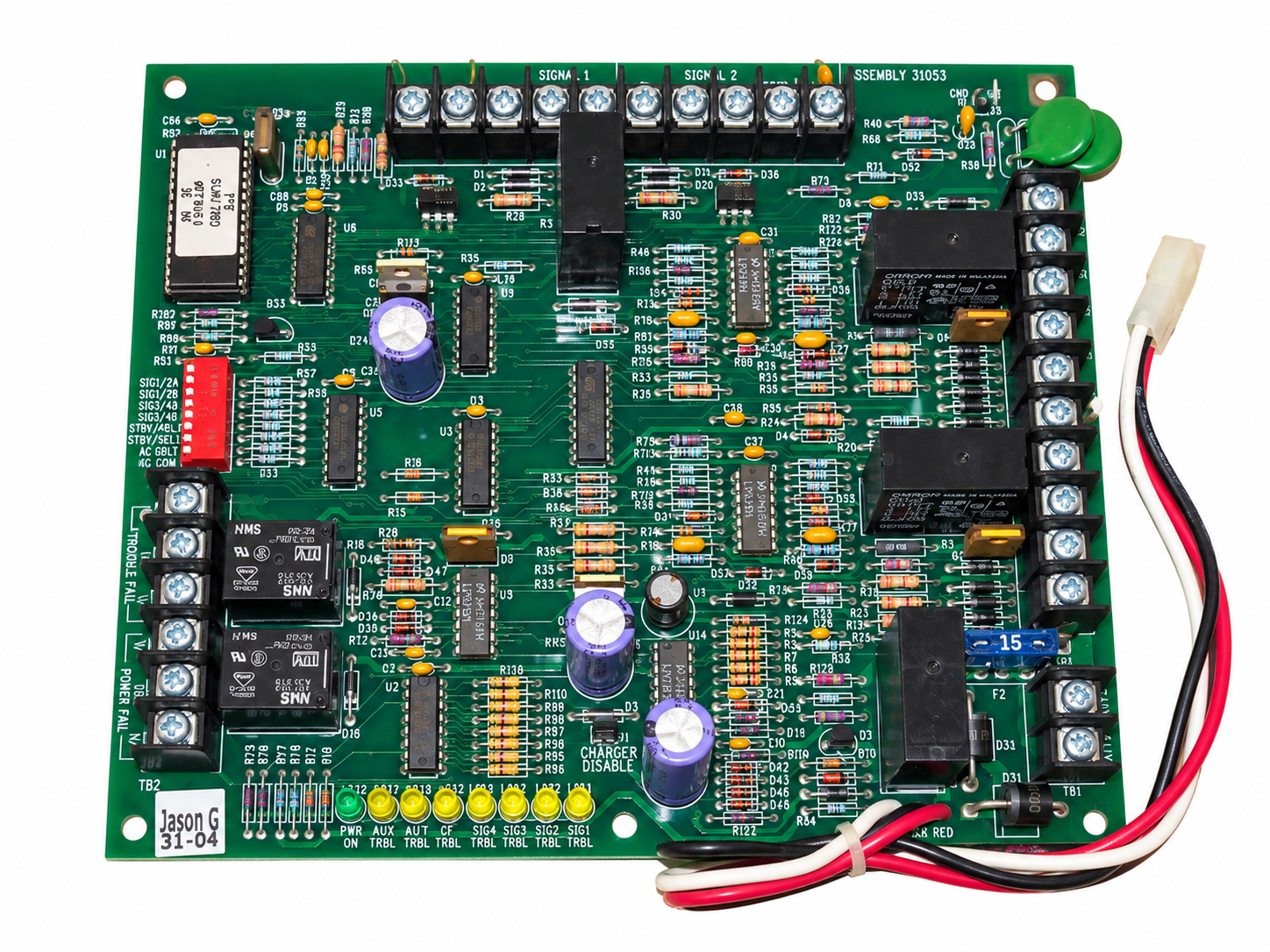

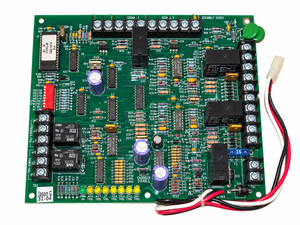

Gamewell-FCI FF8 FireForce 8 24 VDC 8 A NAC Expander Power Supply
- Regular price
- $887.00
- Sale price
- $887.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FF8
Description
Gamewell-FCI FF8 FireForce 8 is a notification appliance circuit (NAC) expander and power supply designed to extend the power capacity of existing fire alarm systems. It provides regulated 24 VDC power across four NAC outputs, with a total output capacity of 8.0 A and an integral battery charger.
Technical Specifications
| Condition | New / Never Used Surplus |
| Brand | Gamewell-FCI |
| Category | Fire Safety |
| Part Number | FF8 |
| Subcategory | Fire Alarm Power Supplies |
| Product Type | NAC Expander / Power Supply |
| Input Power | 120 VAC, 60 Hz, 3.0 A or 220 VAC, 1.5 A |
| Output Voltage | 24 VDC |
| Total Output Capacity | 8.0 A maximum |
| NAC Outputs | 4 |
| Maximum NAC Rating | 3.0 A per circuit |
| NAC Configuration | Four Class B, two Class A, or combined Class A/Class B |
| Auxiliary Power | 0.15 A standard; up to 1.5 A under specified operating conditions |
| Battery Charger | Integral charger |
| Battery Capacity | 7–24 Ah batteries; charging capacity up to 26 Ah |
| End-of-Line Resistor Range | 2K–25K ohms, 1/2 W |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Dimensions | 18.0 × 12.5 × 4.5 in (45.72 × 31.75 × 11.43 cm) |
| Weight | 1.36 kg |
Information About FF8
The FF8 is designed to connect to a compatible UL-listed fire alarm control panel and provide additional notification circuit capacity. Its four outputs can be configured as four Class B circuits, two Class A circuits, or a combination of Class A and Class B circuits, with an optional Class A adapter supporting four Class A outputs. The unit provides independent supervision of its output circuits and includes an internal battery charging circuit for standby operation. The FF8 also provides auxiliary power for ancillary fire alarm devices such as remote annunciators and door holders.
Key Features:
- NAC Expansion: Extends the notification appliance circuit capacity of an existing fire alarm control panel.
- 8 A Output Capacity: Provides up to 8.0 A total regulated 24 VDC output power.
- Four NAC Outputs: Provides four independently supervised notification appliance circuits.
- Flexible Class Configuration: Supports Class B, Class A, or combined Class A/Class B output configurations.
- Integral Battery Charger: Includes an internal charger for 24 VDC standby batteries.
- Auxiliary Power: Provides power for compatible ancillary fire alarm system devices.
- Regulated Power Supply: Uses switch-mode technology to deliver filtered and electronically regulated output power.
- Fault Supervision: Independently supervises NAC circuits and reports circuit faults to the connected system.
The FF8 delivers the additional regulated power, circuit expansion, and supervision required for reliable fire alarm notification system installations.
