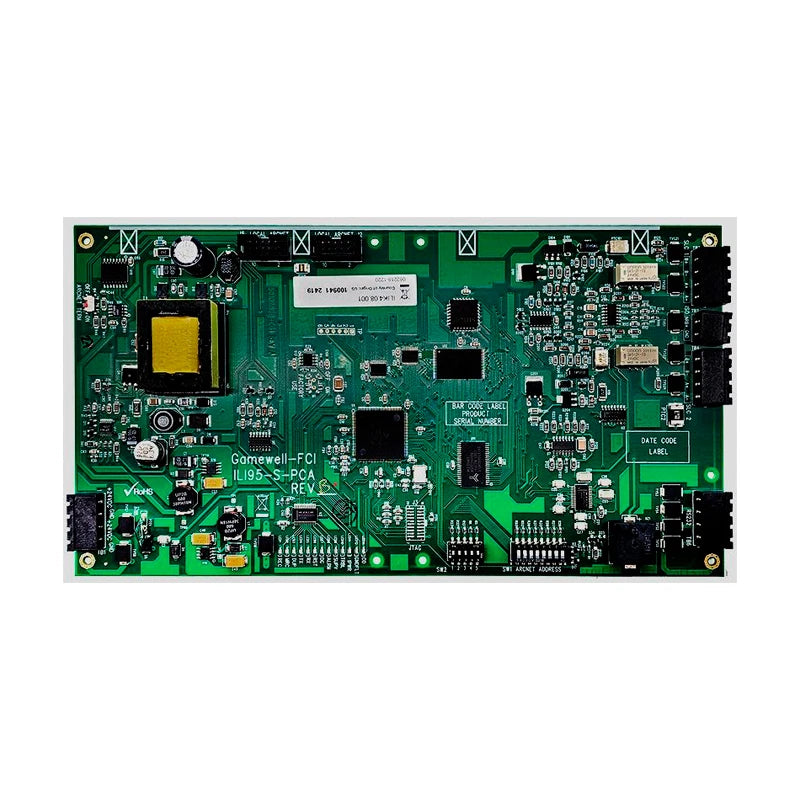

Gamewell-FCI ILI95-S-E3 Intelligent Loop Interface95 Expansion Board
- Regular price
- $1,029.00
- Sale price
- $1,029.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ILI95-S-E3
Description
The Gamewell-FCI ILI95-S-E3 is an Intelligent Loop Interface95 Expansion Board designed to add two signaling line circuits to compatible E3 Series fire alarm systems. It supports Apollo protocol addressable devices, accommodating up to 126 sensors or modules per loop while operating as a node on the E3 Broadband network.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Gamewell-FCI |
| Category | Fire Alarm Systems |
| Part Number | ILI95-S-E3 |
| Subcategory | Intelligent Loop Interface Modules |
| Product Series | E3 Series |
| Product Type | Intelligent Loop Interface95 Expansion Board |
| Protocol | Apollo |
| Signaling Line Circuits | 2 |
| SLC Configuration | Class A, Class X, or Class B |
| Addressable Capacity | Up to 126 Devices per Loop |
| Operating Voltage | 24 VDC FWR |
| Operating Current | 109 mA |
| Alarm Current | 110 mA |
| Maximum SLC Line Impedance | 40 Ohms |
| Maximum SLC Line Capacitance | 0.5 µF |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Relative Humidity | 0–93%, Non-Condensing at 90°F (32°C) |
| Circuit Supervision | Supervised, Class 2 Power-Limited |
| Weight | 0.5 lb |
Information About ILI95-S-E3
The ILI95-S-E3 is a Gamewell-FCI E3 Series expansion interface designed for systems using Apollo protocol signaling line circuit devices. Its two additional SLCs support Class A, Class X, or Class B configurations, with capacity for up to 126 analog/addressable Apollo devices per loop. The board operates from 24 VDC supplied by the compatible PM-9 or PM-9G power supply and occupies one node on the E3 Broadband network. It is intended for E3 Series Expandable Emergency Evacuation and Combined Fire and Mass Notification systems requiring additional addressable loop capacity.
Key Features:
- Dual SLC Expansion: Adds two signaling line circuits to compatible Gamewell-FCI E3 Series systems.
- Apollo Protocol Support: Interfaces with compatible Apollo Series addressable sensors and modules.
- 126 Devices per Loop: Supports up to 126 analog/addressable Apollo devices on each signaling line circuit.
- Multiple Circuit Classes: Supports Class A, Class X, or Class B SLC wiring configurations.
- Broadband Network Integration: Occupies one node on the E3 Series Broadband network.
- 24 VDC Operation: Receives operating power from the system PM-9 or PM-9G power supply.
- Supervised Circuit Design: Uses supervised, Class 2 power-limited circuitry for system integration.
- Integrated Sounder: Includes an audible sounder for alarm, trouble, and supervisory conditions.
The ILI95-S-E3 delivers the reliability and precision required for expanding addressable signaling line circuit capacity in E3 Series fire alarm and mass notification systems.
