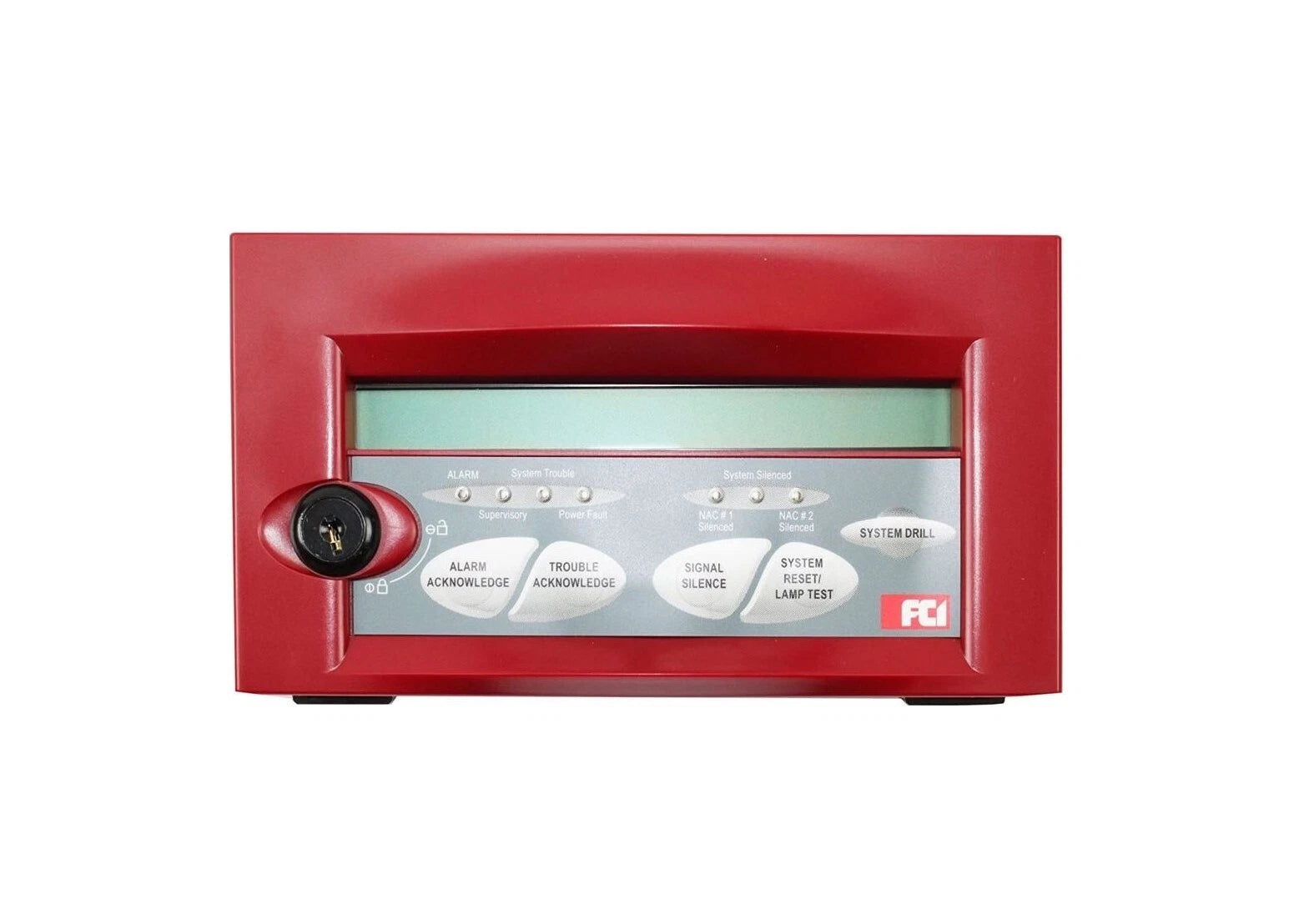

Gamewell-FCI RAN-7100 Remote Alphanumeric LCD Fire Alarm Annunciator
- Regular price
- $1,302.00
- Sale price
- $1,302.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: RAN-7100
Description
The Gamewell-FCI RAN-7100 is a remote alphanumeric LCD annunciator designed to provide system status indication and remote control for compatible Gamewell-FCI fire alarm control panels. Featuring an 80-character LCD display, programmable function keys, and status LEDs, it enables operators to monitor and manage fire alarm events from remote locations within a facility.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Gamewell-FCI |
| Category | Fire Alarm Systems |
| Part Number | RAN-7100 |
| Subcategory | Remote LCD Annunciator |
| Series | E3 Series / S3 Series / 7100 Series |
| Product Type | Remote Alphanumeric LCD Annunciator |
| Display | 80-character alphanumeric LCD |
| Operating Voltage | 24 VDC nominal |
| Supervisory Current | 12 mA |
| Alarm Current | 23 mA |
| Maximum Distance from Panel | 3,000 ft (914.4 m) |
| Maximum Annunciators per System | 5 |
| Function Keys | Alarm Acknowledge, Trouble Acknowledge, Signal Silence, System Reset/Lamp Test, Drill Test |
| Status Indicators | Alarm, Supervisory, System Trouble, System Silenced, NAC 1 Silenced, NAC 2 Silenced, Power Fault |
| Mounting | Surface or flush mount, standard four-gang box or RAN2-BB backbox |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Relative Humidity | 0–93% non-condensing |
| Dimensions | 10 × 5.25 × 2.44 in (254 × 133 × 69 mm) |
| Certification | UL 864, 9th Edition |
| Weight | Approximately 2.0 lb (0.91 kg) |
Information About RAN-7100
The RAN-7100 is part of the Gamewell-FCI remote annunciation platform, engineered for use with the E3 Series Expandable Emergency Evacuation System, S3 Series addressable fire alarm control panels, and 7100 Series systems. Its 80-character LCD display duplicates the primary control panel information, allowing operators to view alarms, supervisory conditions, and system troubles without returning to the main panel. The annunciator supports installation up to 3,000 feet (914.4 m) from the host control panel and allows up to five remote annunciators on a single system, making it suitable for large commercial facilities. Designed for both new installations and retrofit projects, the RAN-7100 fits standard electrical boxes or the dedicated RAN2-BB backbox and provides secure operation through a keyswitch-enabled control interface.
Key Features:
- 80-Character LCD Display: Replicates system status information from the main control panel.
- Remote System Monitoring: Allows operators to monitor fire alarm activity from remote locations.
- Common Control Functions: Includes Alarm Acknowledge, Trouble Acknowledge, Signal Silence, System Reset/Lamp Test, and Drill Test.
- Status LED Indicators: Displays Alarm, Supervisory, Trouble, Power Fault, and NAC silenced conditions.
- Long-Distance Installation: Installs up to 3,000 ft (914.4 m) from the host panel.
- Multi-Annunciator Support: Up to five RAN-7100 units can operate on one compatible system.
- Retrofit Compatible: Replaces legacy Gamewell RAN annunciators during system upgrades.
- Secure Keyswitch Operation: Prevents unauthorized use of common control functions.
- Flexible Mounting: Supports surface or flush mounting using a standard four-gang box or RAN2-BB backbox.
- UL 864 Listed: Certified for commercial fire alarm and emergency communication systems.
- Integrated Local Sounder: Includes an internal audible indicator for local event notification.
- Commercial-Grade Design: Engineered for continuous operation in demanding life safety applications.
The RAN-7100 delivers the reliability and precision required for remote fire alarm annunciation and system control in commercial life safety installations.
