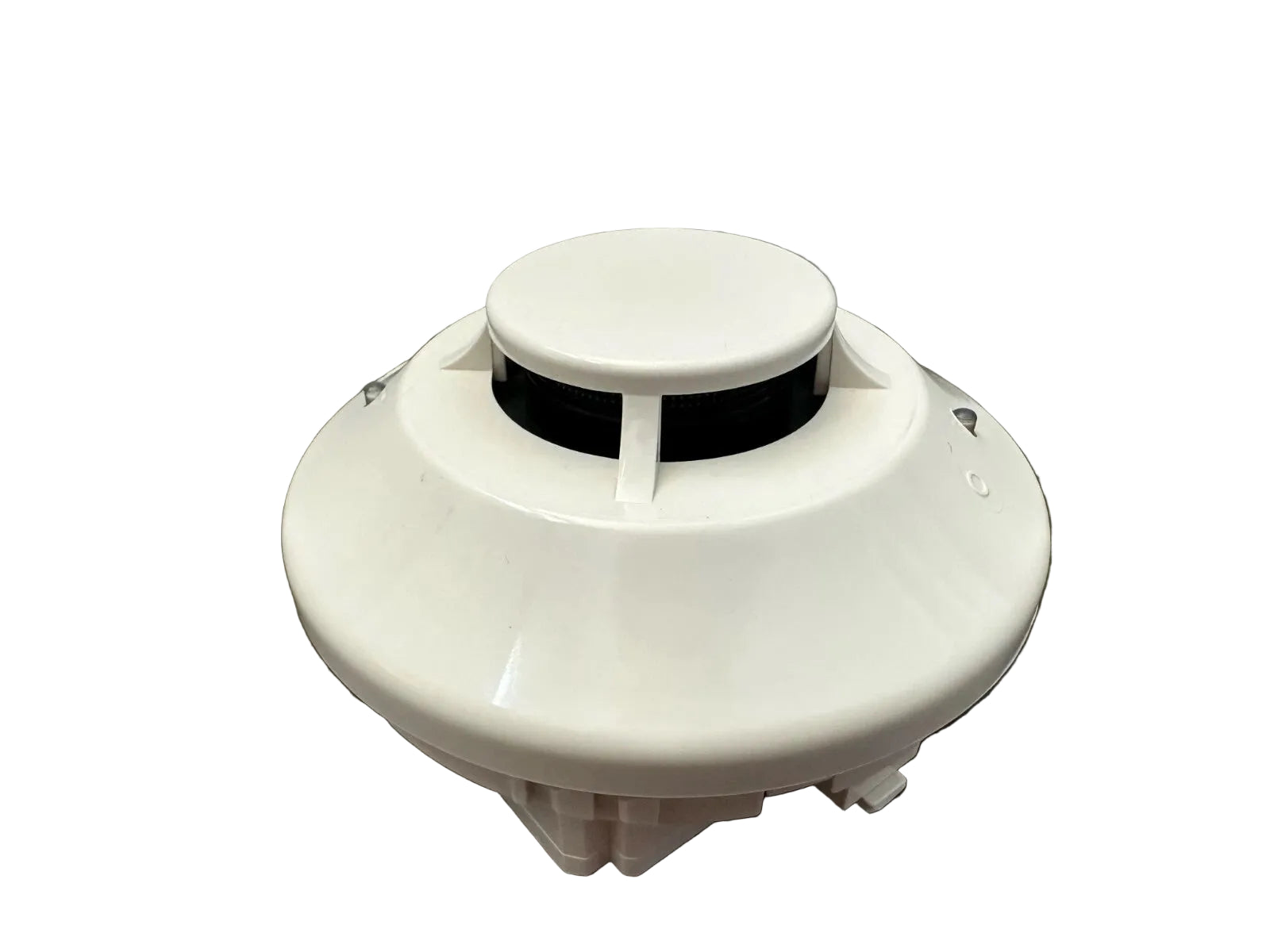

Gamewell-FCI WSD-P SWIFT Wireless Photoelectric Smoke Detector
- Regular price
- $295.00
- Sale price
- $295.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: WSD-P
Description
The Gamewell-FCI WSD-P is an intelligent wireless photoelectric smoke detector designed for the SWIFT Smart Wireless Integrated Fire Technology system. It transmits smoke-density data through a bidirectional Class A wireless mesh network to a compatible gateway and fire alarm control panel, eliminating the need for conventional SLC wiring at the detector location.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Gamewell-FCI |
| Category | Fire Alarm Systems |
| Part Number | WSD-P |
| Subcategory | Wireless Smoke Detectors |
| Product Series | SWIFT |
| Product Type | Intelligent Wireless Photoelectric Smoke Detector |
| Detection Technology | Photoelectric |
| Communication Type | Wireless Class A Mesh Network |
| Radio Frequency | 902–928 MHz |
| Required Base | B210W |
| Battery Type | 4 × CR123A / DL123A Lithium Batteries |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Operating Humidity | 10%–93% RH, Non-Condensing |
| Diameter | 6.0 in (152 mm), Installed in B210W Base |
| Height | 2.4 in (61 mm), Installed in B210W Base |
| Agency Listings | UL, CSFM, FM, FCC |
| Weight | 9.2 oz (261 g), Including 4 Batteries and B210W Base |
Information About WSD-P
The WSD-P is a Gamewell-FCI SWIFT Series addressable photoelectric detector designed for wireless fire detection applications. Its photoelectric sensing chamber monitors smoke conditions while the integrated 902–928 MHz radio communicates through the SWIFT mesh network to a compatible gateway and control panel. The detector requires a B210W wireless detector base and operates from four CR123A lithium batteries, which are included with the device and provide a specified battery life of approximately two years. It is compatible with SWIFT installations associated with Gamewell-FCI E3 Series, S3 Series, and 7075 Series fire alarm control panels.
Key Features:
- Wireless Photoelectric Detection: Uses photoelectric sensing technology to detect smoke without requiring conventional field wiring to the detector.
- SWIFT Mesh Networking: Communicates through a bidirectional Class A wireless mesh network for redundant communication paths.
- Addressable Operation: Functions as an individually identifiable intelligent device on compatible Gamewell-FCI systems.
- 902–928 MHz Radio: Operates within the specified SWIFT wireless frequency range for device-to-gateway communication.
- B210W Base Compatibility: Requires one B210W detector base for installation and proper installed-state recognition.
- Battery Powered: Operates from four Panasonic CR123A or Duracell DL123A lithium batteries.
- Two-Year Battery Life: Manufacturer documentation specifies an expected battery service life of approximately two years.
- Status LEDs: Provides panel-controlled LED indication with red, green, and amber operating patterns.
The WSD-P delivers the reliability and precision required for wireless addressable smoke detection in commercial fire alarm systems.
