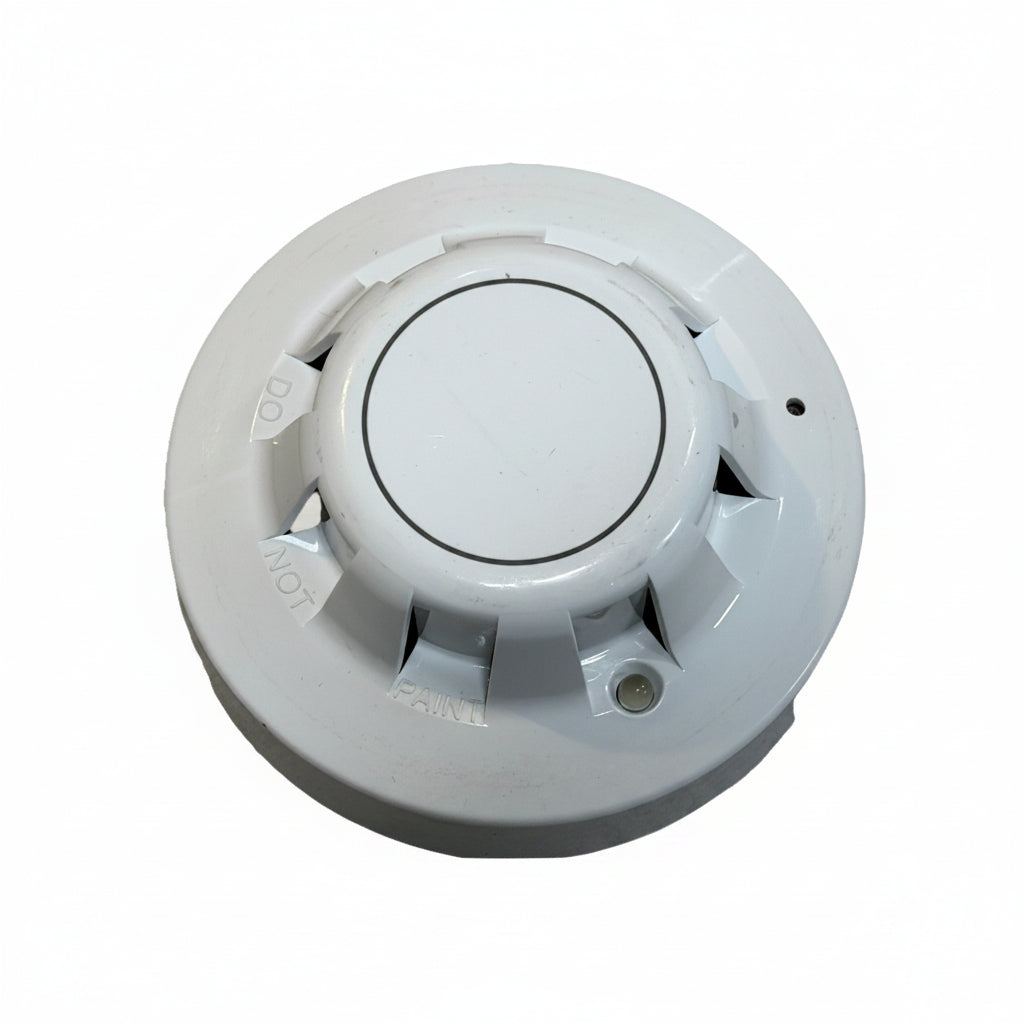

Gamewell-FCI XP95-P Addressable Photoelectric Smoke Detector
- Regular price
- $465.00
- Sale price
- $465.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: XP95-P
Description
The Gamewell-FCI XP95-P is an addressable photoelectric smoke detector designed for automatic fire detection in compatible Gamewell-FCI systems using Apollo XP95 technology. It uses optical smoke sensing with XPERT Card addressing and a plug-in construction for installation on a compatible detector base.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Gamewell-FCI |
| Category | Fire Alarm Systems |
| Part Number | XP95-P |
| Subcategory | Addressable Smoke Detectors |
| Manufacturer | Apollo Fire Detectors |
| Product Type | Addressable Smoke Detector |
| Detection Method | Photoelectric |
| Detectable Medium | Smoke |
| Series / Protocol | XP95 |
| Programming | XPERT Card |
| Mounting Style | Plug-In |
| Construction | Polycarbonate |
| Standby Current | 340 µA |
| Alarm LED Current | 4.34 mA |
| Remote Alarm Output | 4 mA at 5 VDC |
| Operating Temperature | 32°F to 140°F (0°C to 60°C) |
| Relative Humidity | 0% to 95%, Non-Condensing |
| Recommended Spacing | Up to 30 ft (9.1 m), subject to NFPA 72 and application requirements |
| Dimensions | 3.93 × 3.93 × 1.65 in |
| Weight | 0.23 lb (0.10 kg) |
Information About XP95-P
The XP95-P is a Gamewell-FCI addressable smoke detector manufactured using Apollo Fire Detectors XP95 technology. Its photoelectric sensing chamber detects smoke particles while the addressable electronics communicate detector status and alarm information to compatible fire alarm control equipment. Device addressing is configured through an XPERT Card in the detector base, allowing the detector head to be replaced without manually resetting the address. The polycarbonate plug-in housing supports indoor operation from 32°F to 140°F (0°C to 60°C) with relative humidity levels up to 95% non-condensing.
Key Features:
- Photoelectric Detection: Uses optical sensing technology to detect smoke particles associated with developing fires.
- XP95 Addressable Technology: Provides individual detector identification and communication within compatible addressable fire alarm systems.
- XPERT Card Programming: Detector addressing is established through the XPERT Card installed in the compatible mounting base.
- Low Standby Current: Draws approximately 340 µA during normal standby operation.
- Remote Alarm Output: Provides a 4 mA output at 5 VDC for compatible remote alarm indication.
- Wide Temperature Range: Rated for operation from 32°F to 140°F (0°C to 60°C).
- High Humidity Tolerance: Supports environments from 0% to 95% relative humidity, non-condensing.
- Plug-In Construction: Polycarbonate detector housing provides removable installation on a compatible detector base.
The XP95-P delivers the reliability and precision required for addressable photoelectric smoke detection in compatible commercial fire alarm systems.
