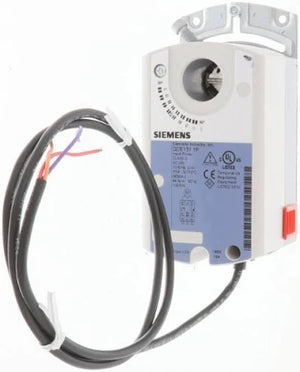

GDE131.1U | Siemens Electronic Damper Actuator Non-Spring Return
GDE131.1U | Siemens Electronic Damper Actuator Non-Spring Return
GDE131.1U | Siemens Electronic Damper Actuator Non-Spring Return
    GDE131.1U | Siemens Electronic Damper Actuator Non-Spring Return
GDE131.1U | Siemens Electronic Damper Actuator Non-Spring Return

GDE131.1U | Siemens Electronic Damper Actuator Non-Spring Return

Part #: GDE131.1U Manufactured by: Siemens
Regular price
$82.00
Sale price
$82.00
Regular price
7 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Siemens GDE131.1U is a non-spring return damper actuator from the OpenAir™ series, designed for HVAC applications. It ...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: GDE131.1U
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Siemens
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: GDE131.1U

Description / Specifications

Description

The Siemens GDE131.1U is a non-spring return rotary damper actuator from the OpenAir™ series, designed for HVAC applications requiring precise damper control.





Technical Specifications

Condition New/Never Used Surplus
Brand Siemens
Category
HVAC Controls
Part Number GDE131.1U
Subcategory
Damper Actuators – Non-Spring Return
Control or Fire/Smoke Type Control Damper
Torque
44 lb-in
Positioning Time 50 Hz:108 s, 60 Hz:90 s
Power Consumption
2.3 VA
Ambient Humidity, Operation 95 % r.h.
Angular Rotation 90°
Operating Voltage 24 VAC
Frequency 50/60 Hz
Cable Length 3 ft
Dimensions (W x H x D) 2.75 x 5.44 x 2.38 in
Material, Housing NEMA Type 2, IP54 according to EN 60 529
Degree of Protection IP54
Weight 1.6 lbs





Information About GDE131.1U

The Siemens GDE131.1U is a non-spring return rotary damper actuator from the OpenAir™ series, designed for precise control of HVAC dampers in constant or variable air volume systems.

Key Features:

  • Torque: 44 lb-in (5 Nm)

  • Control Signal: Floating (3-position)

  • Power Supply: 24 VAC ±20%

  • Power Consumption: 2.3 VA

  • Run Time: 90 seconds for 90° rotation at 60 Hz; 108 seconds at 50 Hz

  • Angular Rotation: 90° nominal; 95° maximum

  • Manual Override: Included

  • Enclosure: NEMA 2 (IP54)

  • Cable Length: 3 feet (0.9 meters)

  • Operating Temperature: -25°F to 130°F (-32°C to 55°C)

  • Humidity: Up to 95% RH, non-condensing

  • Certifications: UL, cUL, CE

  • Direct-coupled design for easy installation

  • Compact and lightweight

  • Manual override for emergency operation

  • Suitable for shaft sizes: 3/8" to 5/8" (round), 1/4" to 1/2" (square)

  • Designed for 100,000 full stroke cycles

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The Siemens GDE131.1U is a non-spring return rotary damper actuator from the OpenAir™ series, designed for HVAC applications requiring precise damper control.





Technical Specifications

Condition New/Never Used Surplus
Brand Siemens
Category
HVAC Controls
Part Number GDE131.1U
Subcategory
Damper Actuators – Non-Spring Return
Control or Fire/Smoke Type Control Damper
Torque
44 lb-in
Positioning Time 50 Hz:108 s, 60 Hz:90 s
Power Consumption
2.3 VA
Ambient Humidity, Operation 95 % r.h.
Angular Rotation 90°
Operating Voltage 24 VAC
Frequency 50/60 Hz
Cable Length 3 ft
Dimensions (W x H x D) 2.75 x 5.44 x 2.38 in
Material, Housing NEMA Type 2, IP54 according to EN 60 529
Degree of Protection IP54
Weight 1.6 lbs





Information About GDE131.1U

The Siemens GDE131.1U is a non-spring return rotary damper actuator from the OpenAir™ series, designed for precise control of HVAC dampers in constant or variable air volume systems.

Key Features:

  • Torque: 44 lb-in (5 Nm)

  • Control Signal: Floating (3-position)

  • Power Supply: 24 VAC ±20%

  • Power Consumption: 2.3 VA

  • Run Time: 90 seconds for 90° rotation at 60 Hz; 108 seconds at 50 Hz

  • Angular Rotation: 90° nominal; 95° maximum

  • Manual Override: Included

  • Enclosure: NEMA 2 (IP54)

  • Cable Length: 3 feet (0.9 meters)

  • Operating Temperature: -25°F to 130°F (-32°C to 55°C)

  • Humidity: Up to 95% RH, non-condensing

  • Certifications: UL, cUL, CE

  • Direct-coupled design for easy installation

  • Compact and lightweight

  • Manual override for emergency operation

  • Suitable for shaft sizes: 3/8" to 5/8" (round), 1/4" to 1/2" (square)

  • Designed for 100,000 full stroke cycles
