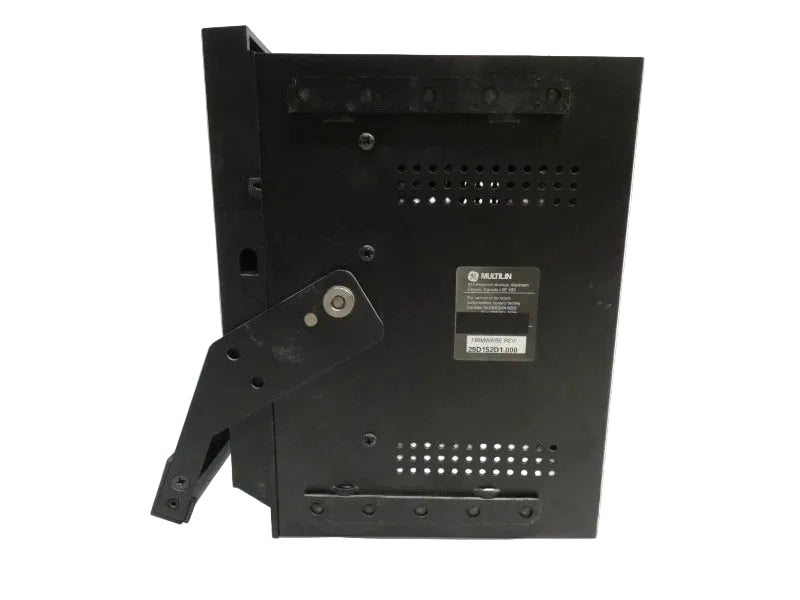

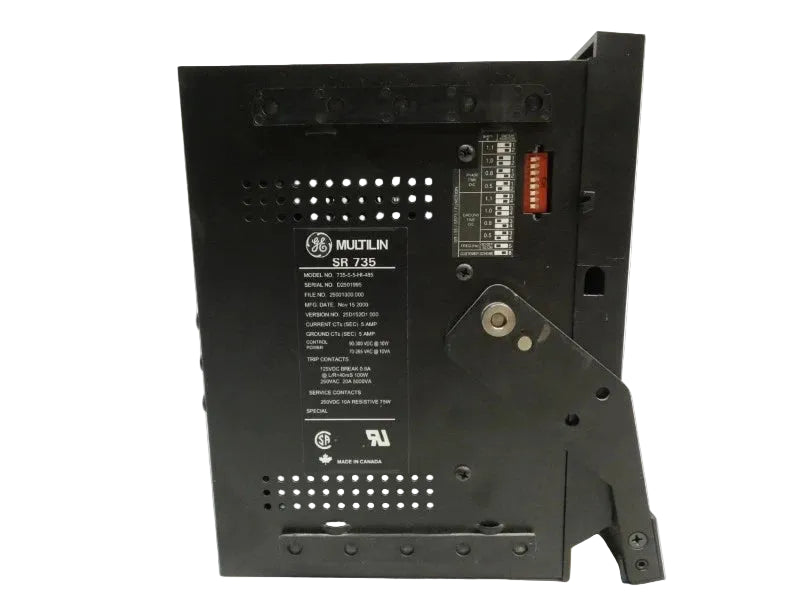

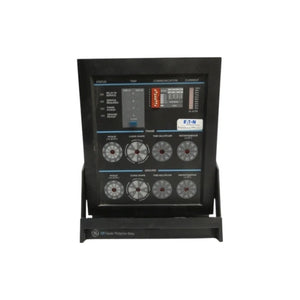

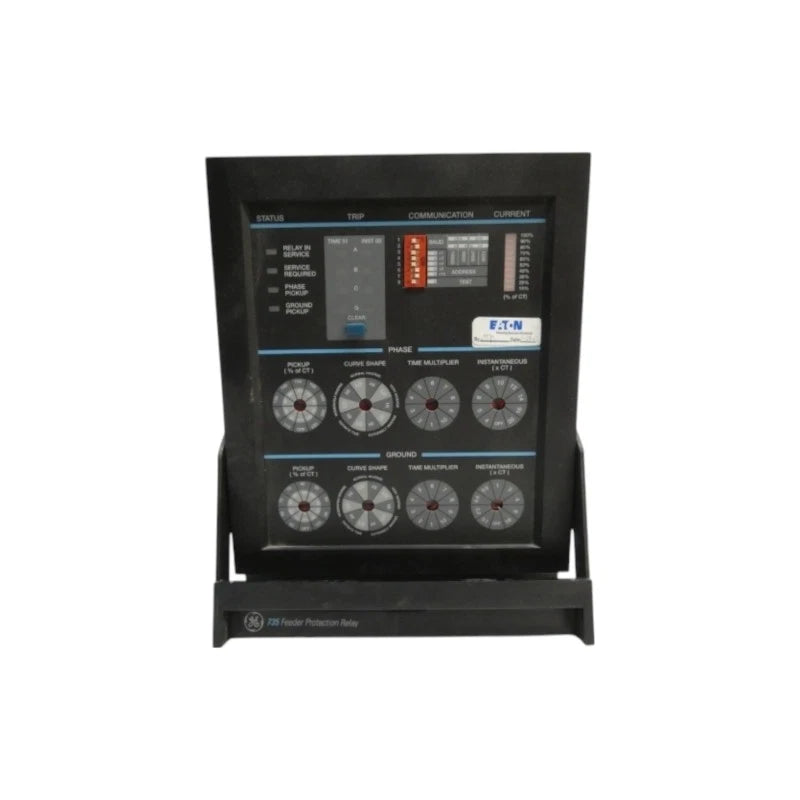

General Electric 735-5-5-HI-485 Feeder Protection Relay with RS485 and Overcurrent Protection
- Regular price
- $7,235.00
- Sale price
- $7,235.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 735-5-5-HI-485
Description
The General Electric 735-5-5-HI-485 feeder protection relay is designed to provide reliable overcurrent and ground fault protection for electrical distribution systems. It supports both phase and ground protection with integrated communication capabilities for monitoring and control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | General Electric |
| Category | Power System Protection |
| Part Number | 735-5-5-HI-485 |
| Subcategory | Feeder Protection Relays |
| Protection Functions | 50/51 Phase Overcurrent, 50G/51G Ground Overcurrent |
| Phase CT Secondary | 5 A |
| Ground CT Secondary | 5 A |
| Control Voltage (DC) | 90–300 V DC |
| Control Voltage (AC) | 70–265 V AC |
| Frequency | 50/60 Hz |
| Communication Protocol | RS485, 2-wire |
| Relay Type | Microprocessor-Based Protection Relay |
| Application | Feeder Protection |
| Mounting Type | Panel Mount |
| Weight | 3 lb |
Information About 735-5-5-HI-485
The 735-5-5-HI-485 is a microprocessor-based protection relay from General Electric’s 735 series, engineered for feeder protection in medium and low-voltage power systems. It is equipped with standard 50/51 phase overcurrent and 50G/51G ground overcurrent protection functions, ensuring dependable fault detection and isolation. The relay supports 5 A current transformer inputs for both phase and ground measurements, making it compatible with common CT configurations. Designed for flexible installation, it operates across a wide control power range and includes RS485 2-wire communication for integration into supervisory control and data acquisition (SCADA) systems.
Key Features:
- Phase Overcurrent Protection (50/51): Provides instantaneous and time-delayed protection for phase faults in feeder circuits
- Ground Fault Protection (50G/51G): Detects and responds to ground faults with both instantaneous and inverse-time characteristics
- 5 A CT Input Compatibility: Supports standard 5 A current transformer secondary inputs for both phase and ground circuits
- Wide Control Power Range: Operates on 90–300 VDC or 70–265 VAC, ensuring flexibility across different power systems
- RS485 Communication Interface: Enables remote monitoring and integration with SCADA systems via 2-wire communication
- Microprocessor-Based Design: Ensures precise measurement, configurable settings, and reliable protection performance
- Frequency Compatibility: Supports both 50 Hz and 60 Hz systems for global application use
- Standard 735 Series Platform: Designed for consistency and interoperability within GE protection relay systems
The 735-5-5-HI-485 delivers the reliability and precision required for feeder protection, fault detection, and power system monitoring in industrial and utility environments.
