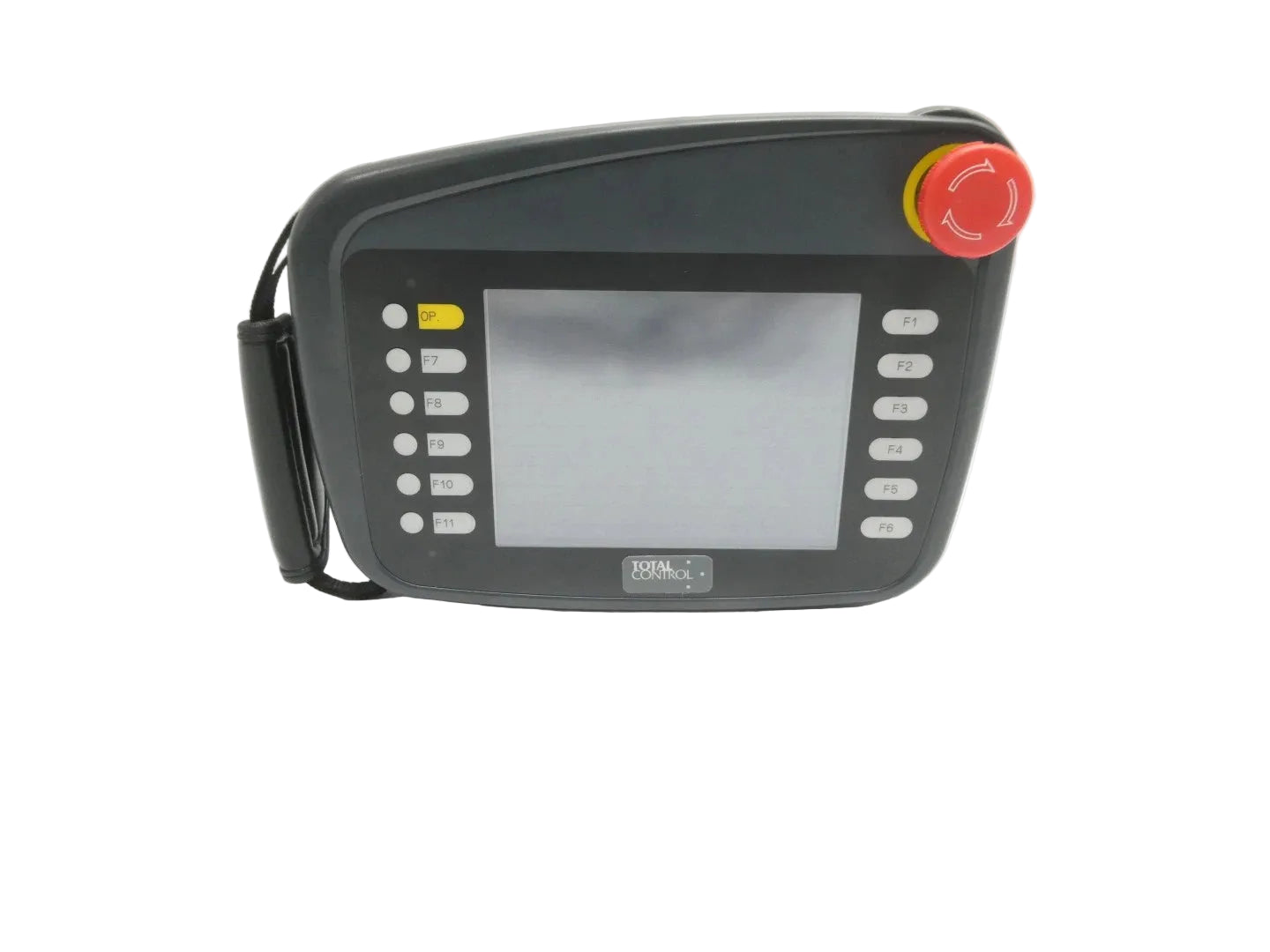

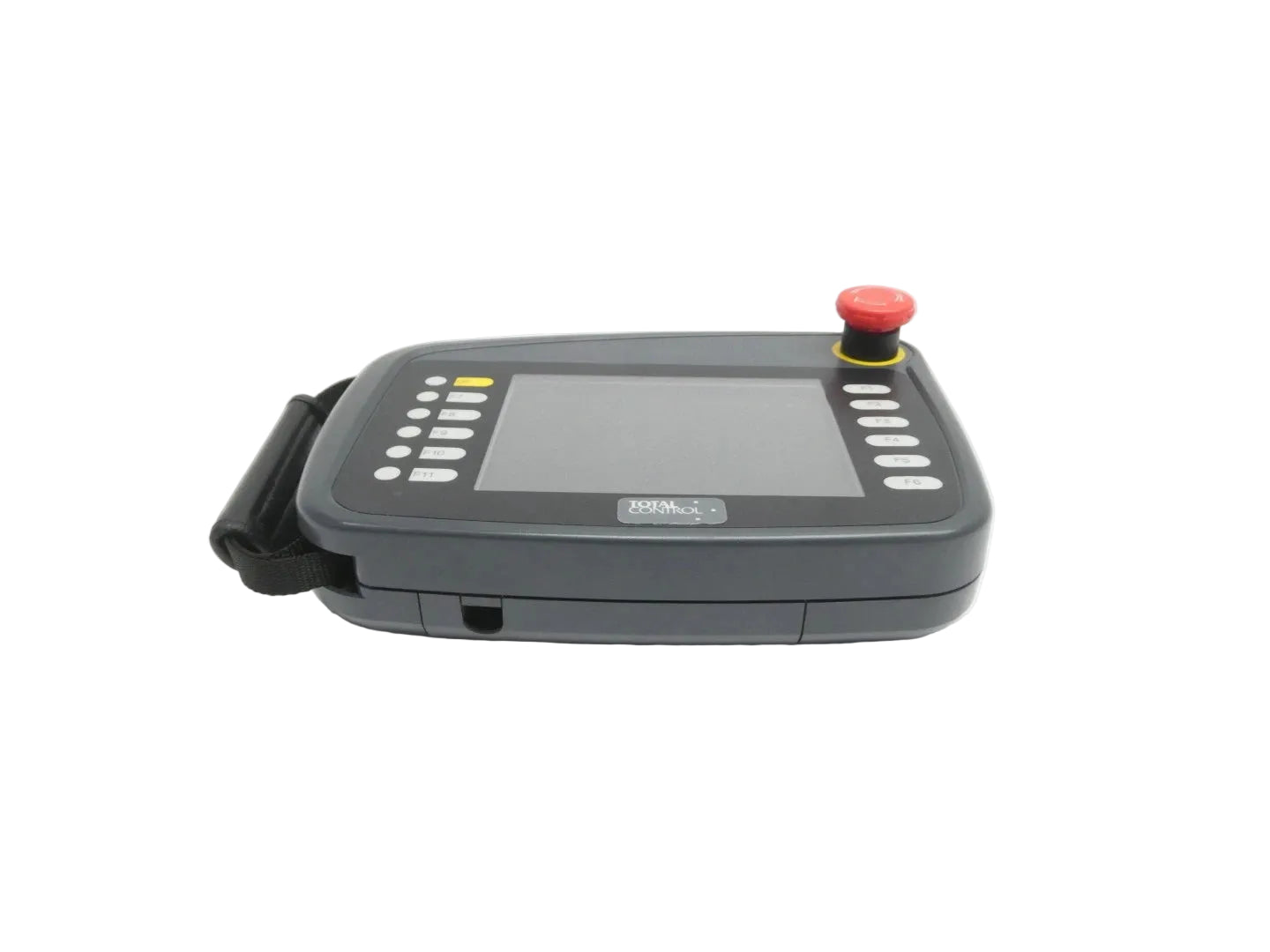

QPH-2D100-S2P | GE Fanuc 5.7" QuickPanel Handheld HMI 24VDC
- Regular price
- $2,592.00
- Sale price
- $2,592.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: QPH-2D100-S2P
Description
The GE Fanuc QPH-2D100-S2P is a handheld QuickPanel operator interface designed for industrial control and monitoring applications. It features a 5.7-inch STN color LCD display with 240 × 320 resolution and operates on 24 VDC power. Built for panel and handheld use, it provides touch-based control in environments rated NEMA 4X/12 and IP65.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | GE Fanuc Total Control |
| Category | HMI / MMI / OIT |
| Part Number | QPH-2D100-S2P |
| Subcategory | Operator Interface |
| Series | QuickPanel Hand Held |
| Screen Size | 5.7 Inch |
| Display Type | STN Color LCD |
| Resolution | 240 × 320 Pixels |
| Input Voltage | 24 VDC (20–27 VDC Range) |
| Power Consumption | 50 VA Maximum |
| NEMA Rating | Type 4X/12 |
| IP Rating | IP65 |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -20°C to 60°C |
| Software Version | QuickDesigner Version 3.7 |
| Weight | 1.95 lbs |
Information About QPH-2D100-S2P
The QPH-2D100-S2P belongs to the GE Fanuc QuickPanel Hand Held series and is categorized within the Junior line of operator interfaces. It is designed as a touch-based interface without physical pushbuttons, supporting machine visualization and control functions. The unit operates on 20–27 VDC input and consumes up to 50 VA during operation, with short-term power immunity up to 20 milliseconds. Engineered for industrial environments, it operates within 0°C to 45°C and supports storage conditions from -20°C to 60°C.
Key Features:
-
5.7-Inch STN Color Display: Provides 240 × 320 pixel resolution for machine interface.
-
Touchscreen Operation: Eliminates need for physical switches or buttons.
-
24 VDC Power Input: Operates within 20–27 VDC range.
-
NEMA 4X/12 and IP65 Rated: Suitable for protected industrial environments.
-
QuickDesigner v3.7 Compatible: Supports configuration through designated software.
-
50 VA Maximum Consumption: Defined power usage for control systems.
-
20 ms Power Immunity: Maintains stability during brief power interruptions.
-
Handheld Form Factor: Designed for portable operator interaction.
The QPH-2D100-S2P delivers the reliability and precision required for industrial operator interface and machine control applications.
