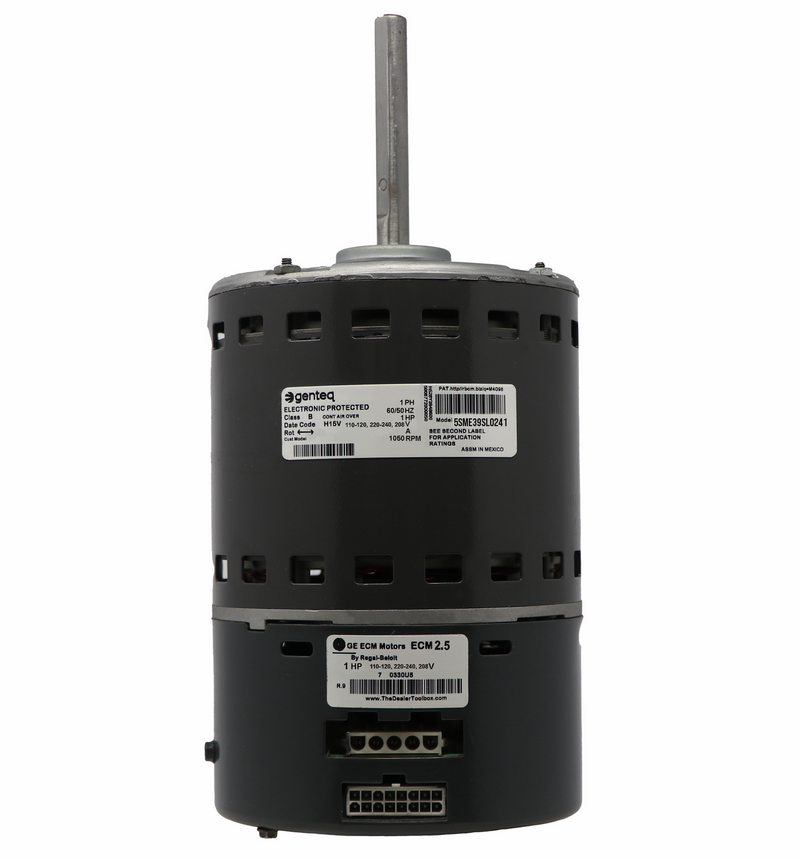

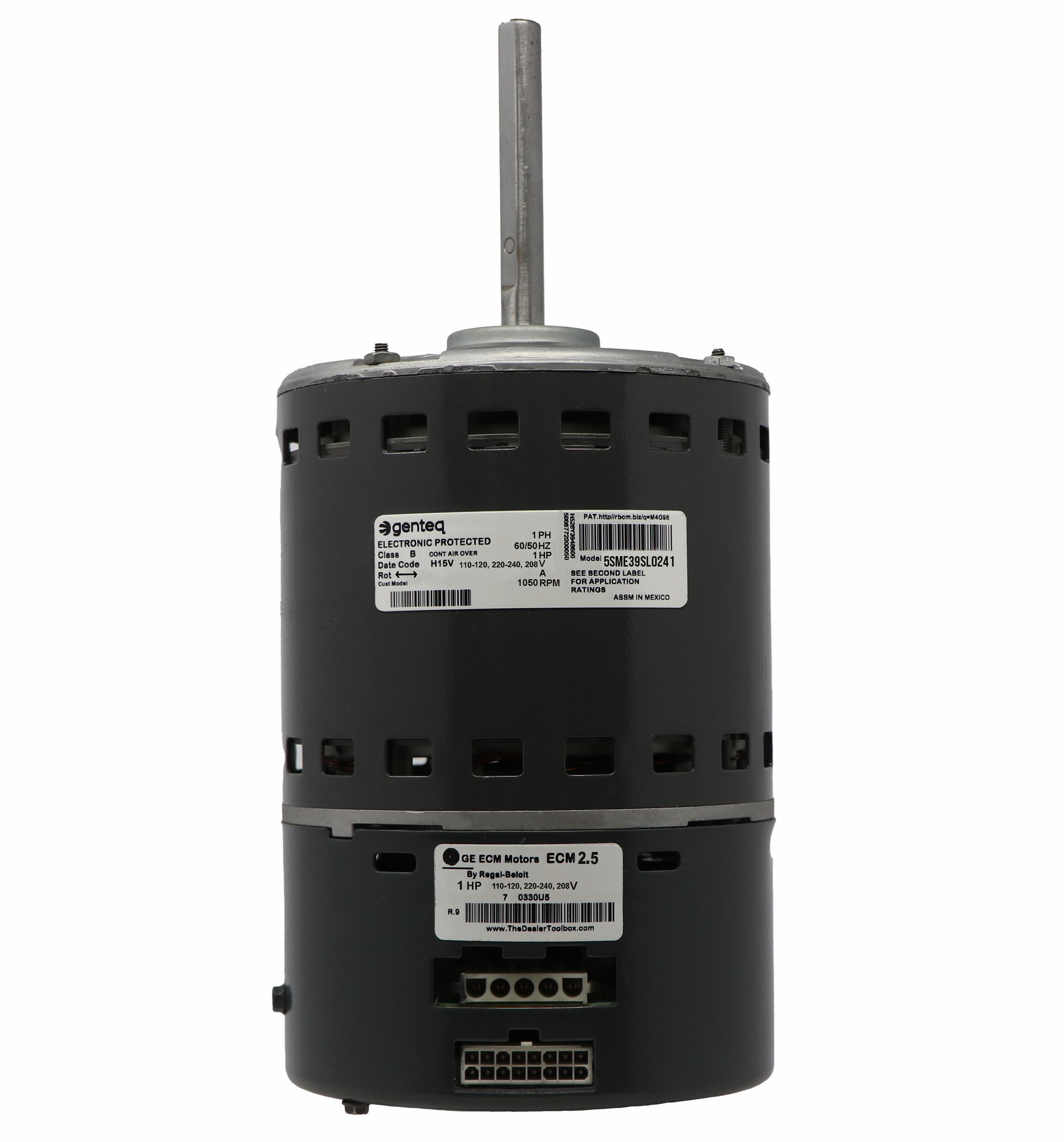

GE Genteq 5SME39SL0241 1 HP ECM Furnace Blower Motor 120/240VAC Variable Speed Motor
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 5SME39SL0241
Description
The GE Genteq 5SME39SL0241 is a 1 HP ECM furnace blower motor designed for high-efficiency HVAC systems requiring variable-speed airflow control and reliable performance. Operating on 120/240 VAC single-phase power, this electronically commutated motor delivers up to 1050 RPM while optimizing energy consumption and system efficiency. It is commonly used in residential and light commercial furnaces, air handlers, and ventilation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | GE Genteq |
| Category | HVAC Components |
| Part Number | 5SME39SL0241 |
| Subcategory | ECM Blower Motors |
| Motor Type | Electronically Commutated Motor (ECM) |
| Horsepower | 1 HP |
| Voltage Rating | 120/240 VAC |
| Frequency | 60 Hz |
| Phase | Single Phase |
| Full Load Current | 12.8 A @ 120V / 9.1 A @ 240V |
| Rated Speed | 1050 RPM |
| Drive Type | Direct Drive |
| Shaft Diameter | 1/2 in |
| Shaft Length | 4 in |
| Motor Frame | 39 Frame |
| Motor Configuration | Variable Speed |
| Control Module | Integrated ECM Control Module |
| Application | Furnace Blower and Air Handler Systems |
| Mounting Type | HVAC Blower Assembly Mount |
| Country of Manufacture | USA |
| Weight | Approximately 7.7 kg (17 lb) |
Information About 5SME39SL0241
The 5SME39SL0241 is part of the Genteq ECM motor family, engineered to provide advanced airflow management for modern heating and cooling equipment. Featuring electronically commutated motor technology, it offers improved efficiency, reduced operating costs, and quieter performance compared to conventional PSC motors. The motor incorporates an integrated control module that enables variable-speed operation and precise airflow regulation across a range of HVAC applications. Its rugged construction and direct-drive configuration make it suitable for continuous-duty service in demanding residential and commercial environments.
Key Features:
- ECM Technology: Electronically commutated design for improved energy efficiency.
- 1 HP Motor Rating: Suitable for a wide range of furnace and air handler systems.
- Variable-Speed Operation: Provides precise airflow control and system optimization.
- Integrated Control Module: Combines motor and electronic controls in a single assembly.
- Dual Voltage Capability: Operates on 120 VAC or 240 VAC power systems.
- Direct Drive Configuration: Eliminates belt maintenance and improves reliability.
- High Efficiency Design: Reduces electrical consumption compared to standard motors.
- 1050 RPM Speed Rating: Delivers consistent airflow performance.
- Continuous Duty Operation: Designed for long-term HVAC service.
- Quiet Performance: ECM technology minimizes operational noise.
- Standard Shaft Configuration: Features a 1/2-inch diameter shaft with 4-inch length.
- OEM Quality Construction: Manufactured for dependable furnace and air handler applications.
The 5SME39SL0241 delivers the reliability and precision required for HVAC blower systems, furnace airflow management, and energy-efficient climate control applications.
