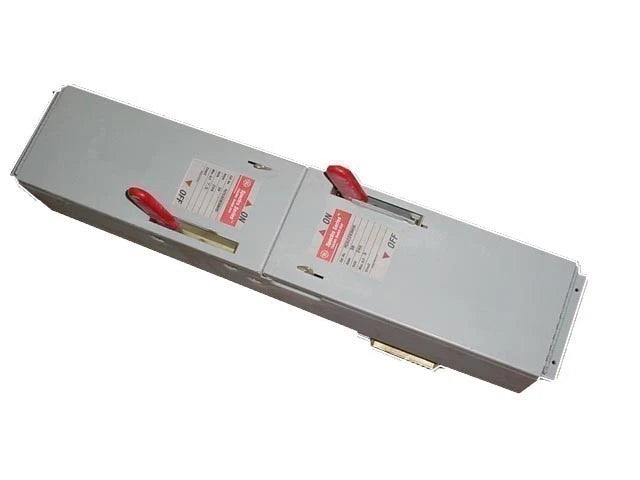

General Electric ADS36060HDFP 3 Pole Panel Board Switch 60A 600V Spectra Series
- Regular price
- $3,999.00
- Sale price
- $3,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ADS36060HDFP
Description
The General Electric ADS36060HDFP panel board switch is a 3-pole switching device designed for feeder and branch circuit protection in commercial and industrial electrical systems. It supports 3-phase applications with a 600 V rating, 60 A capacity, and a 200kA interrupt rating at 480V for high fault-current environments. Designed for use with Spectra Series switchboards, the switch features a panel-mounted dual/twin configuration for reliable power distribution control.
ย
ย
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | General Electric |
| Category | Electrical Distribution |
| Part Number | ADS36060HDFP |
| Subcategory | Panel Board Switches |
| Manufacturer | ABB |
| Series | Spectra |
| Frame Type | ADS |
| Type | ADS |
| Number of Poles | 3 |
| Phase | 3 |
| Voltage Rating | 600 V |
| Amperage Rating | 60 A |
| Interrupt Rating | 200kA@480V |
| Configuration | Dual/Twin |
| Mounting Type | Panel Mount |
| Suitable For | Spectra Series Switchboards |
| NEMA Rating | NEMA 1 |
| Approvals | UL, CSA |
| Application | Feeder and Branch Circuit Protection |
| Dimensions (H x W x D) | 5 x 10 x 8 in |
| Weight | 55 lb |
ย
Information About ADS36060HDFP
The ADS36060HDFP is a Spectra Series panel board switch manufactured by General Electric and designed for high-performance circuit switching and protection applications. This ADS frame switch features a 3-pole configuration with support for 3-phase electrical systems operating up to 600 V. Engineered for integration with Spectra Series switchboards, the unit is commonly used in commercial facilities, industrial plants, and service entrance installations where dependable feeder and branch circuit isolation is required. The switch includes a 200kA interrupt rating at 480V and is certified to UL and CSA standards for safe operation in panel-mounted electrical distribution assemblies.
Key Features:
- High Interrupt Capacity: Rated at 200kA at 480V for protection in high fault-current environments.
- 3-Pole Configuration: Supports balanced switching and isolation in 3-phase power systems.
- 600 V Rating: Designed for medium-voltage commercial and industrial distribution applications.
- Spectra Series Compatibility: Suitable for use with General Electric Spectra Series switchboards.
- Dual/Twin Configuration: Provides flexible installation and switching arrangement options.
- Panel Mount Design: Engineered for secure integration into panel board assemblies.
- UL and CSA Approved: Meets recognized North American electrical safety standards.
- Commercial and Industrial Application: Intended for feeder and branch circuit protection in service entrance systems.
The ADS36060HDFP delivers the reliability and precision required for commercial and industrial power distribution and circuit protection systems.
