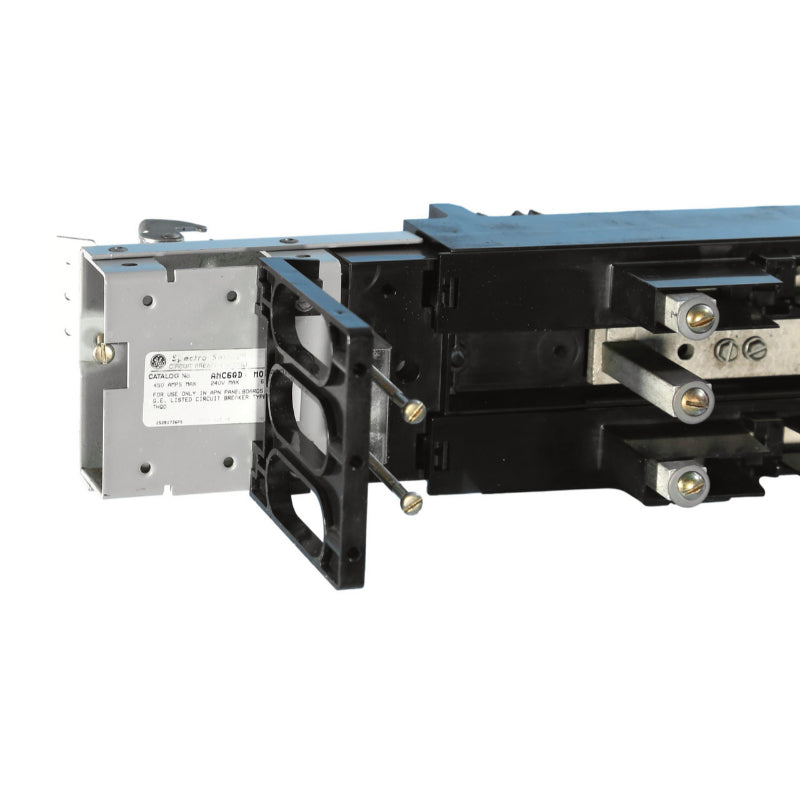

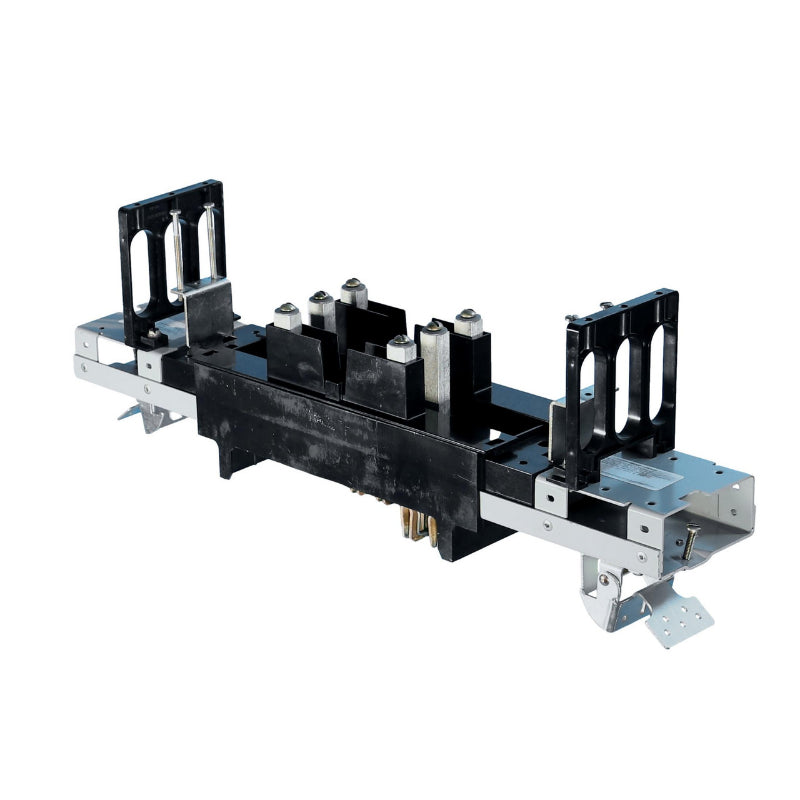

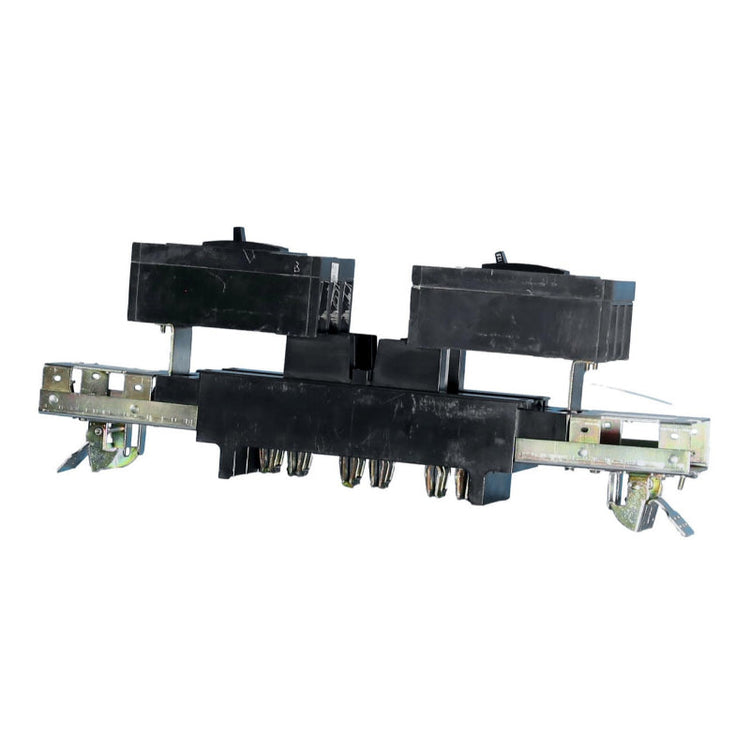

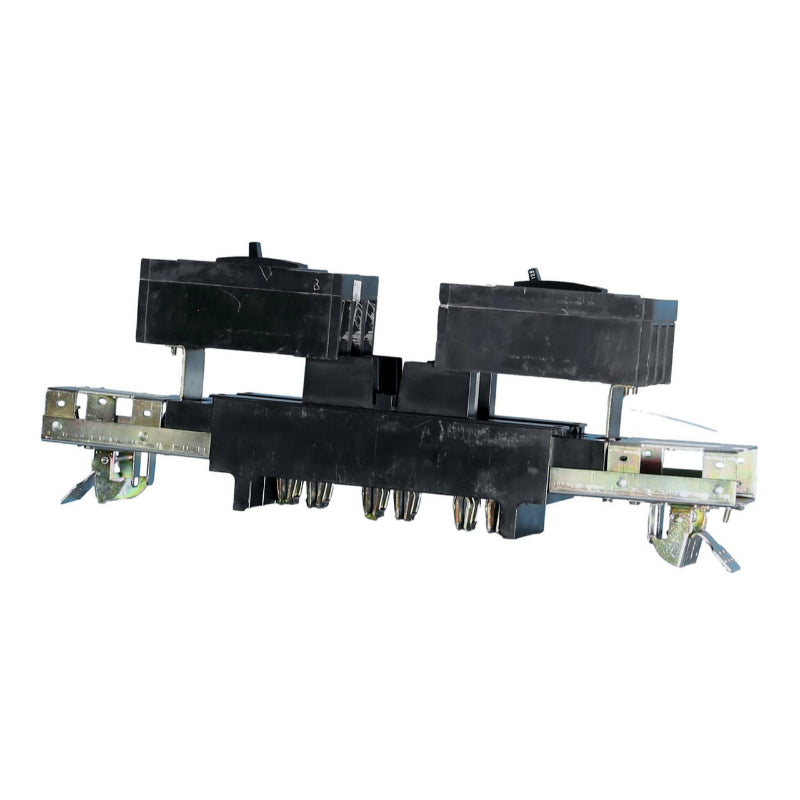

General Electric AMC6QD Spectra Series 225A Copper Mounting Module
- Regular price
- $725.00
- Sale price
- $725.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: AMC6QD
Description
The General Electric AMC6QD is a heavy-duty mounting hardware module engineered for Spectra Series APN plug-in style panelboards. Rated for power applications up to 225 Amps at 240V AC maximum, this module features high-conductivity copper bus connectors configured for dual/twin branch circuit breaker mounting. It provides a secure, low-resistance mechanical and electrical interface required to integrate distribution circuit breakers into GE commercial and industrial power panels.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | General Electric |
| Category | Circuit Breaker |
| Part Number | AMC6QD |
| Subcategory | Circuit Breaker Accessory / Mounting Hardware |
| Panelboard Compatibility | GE Spectra Series APN Plug-In Style |
| Maximum Current Rating | 225 Amps |
| Maximum Voltage Rating | 240V AC |
| Bus Material | High-Conductivity Copper |
| Mounting Configuration | Dual / Twin Branch Mounting |
| Weight | 10.01 lbs |
Information About AMC6QD
The AMC6QD kit is designed specifically to simplify circuit breaker installation and load center expansion within GE Spectra Series panelboard enclosures. Weighing 4.54 kgs, the kit includes heavy-gauge copper connector straps, robust bus mounting brackets, and industrial fasteners designed to maintain tight mechanical contact under severe thermal and vibration loads. Its dual branch design allows two circuit breakers to be mounted side-by-side on a single panel section,maximizing bus space efficiency and streamlining branch wiring.
Key Features:
-
Spectra Series APN Compatibility: Purpose-built for GE Spectra Series APN plug-in style distribution panelboards.
-
High-Conductivity Copper Bus: Built with heavy-duty copper bus bar straps to ensure minimal voltage drop and superior current flow.
-
225A 240V Rating: Safely handles continuous electrical loads up to 225 Amps at maximum 240 VAC.
-
Dual/Twin Branch Configuration: Accepts two branch circuit breakers side-by-side to optimize space inside the panel chassis.
-
Heavy-Duty 4.54 kgs Construction: Robust steel hardware and copper bus components ensure long-term mechanical stability.
-
Plug-In Style Installation: Streamlines mounting and maintenance without needing extensive bus bar alterations.
-
Thermal Efficiency: Solid copper contacts dissipate heat efficiently during peak continuous current operations.
-
Safe Power Distribution: Maintains uniform clamping pressure across breaker stabs to prevent electrical arcing and hot spots.
The AMC6QD mounting module delivers the structural integrity, current-carrying capacity, and spatial efficiency required for high-reliability panelboard expansion.
