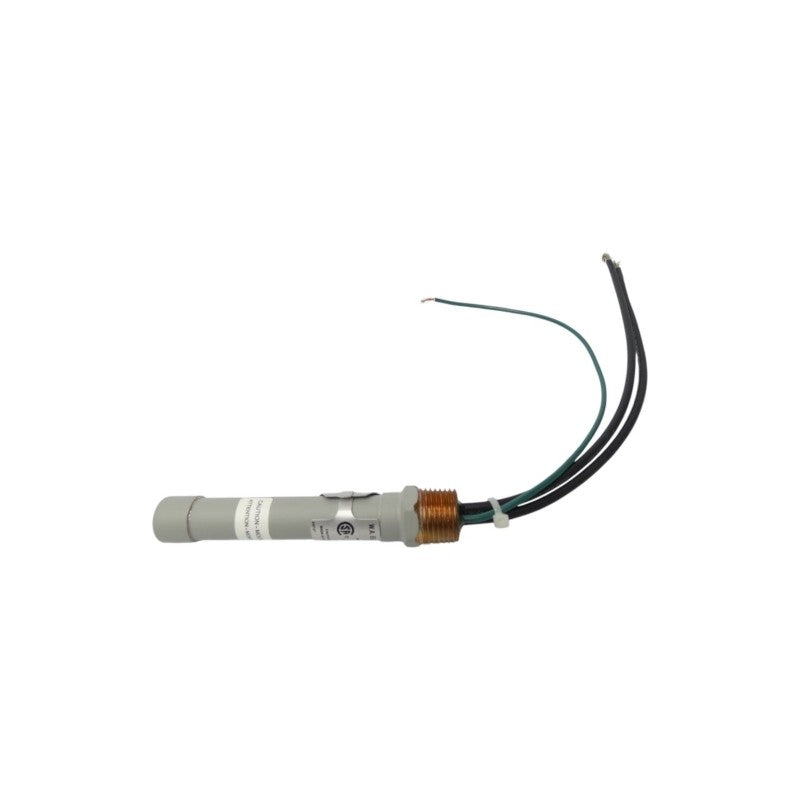

General Electric CR9440-QS2 Magnetector 125 VAC Magnetic Limit Switch
- Regular price
- $379.00
- Sale price
- $379.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CR9440-QS2
Description
The General Electric CR9440-QS2 is a Magnetector magnetic limit switch designed for position sensing without physical contact between moving components. It uses a normally open contact rated at 0.1 A, 125 VAC, with epoxy encapsulation and a rugged construction suited to industrial and hazardous-location applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | General Electric |
| Category | Sensors & Switches |
| Part Number | CR9440-QS2 |
| Subcategory | Limit Switches |
| Actuation | Magnetic |
| Contacts | 1 NO |
| Rating | 0.1 A / 125 VAC |
| VA | 12.5 VA |
| Frequency | Up to 400 Hz |
| Temperature | -65 to 90 °C |
| Diameter | 3/4 in. |
| Housing | Epoxy Encapsulated |
| Operation | Magnetic Field |
| Weight | 0.33 lbs |
Information About CR9440-QS2
The CR9440-QS2 is part of the CR9440 Magnetector series of magnetically operated limit switches. The switch closes when exposed to a suitable magnetic field and uses an encapsulated snap-action contact element. Its compact cylindrical housing measures approximately 4-9/16 inches in length and 3/4 inch in diameter. The published operating temperature range is -65 to 90 °C, and the switch has been used in applications including elevators, cranes, conveyors, machine tools, gates, and mine hoists.
Key Features:
- Switch Type: Magnetically operated Magnetector limit switch.
- Contact: One set of normally open contacts.
- Rating: 0.1 A at 125 VAC or 12.5 VA non-inductive.
- Operation: Contact closes when exposed to a suitable magnetic field.
- Response: Approximately 1 ms operating time up to 400 Hz.
- Housing: Epoxy-encapsulated construction for protection against moisture, dust, and corrosive agents.
- Temperature: Operating range from -65 to 90 °C.
- Applications: Suitable for industrial position sensing, conveyors, cranes, elevators, and machine tools.
- Hazardous Locations: Enclosure is rated for applicable CSA Class I and Class II hazardous-location applications.
The CR9440-QS2 delivers the reliability and precision required for industrial magnetic position sensing and limit switch applications.
