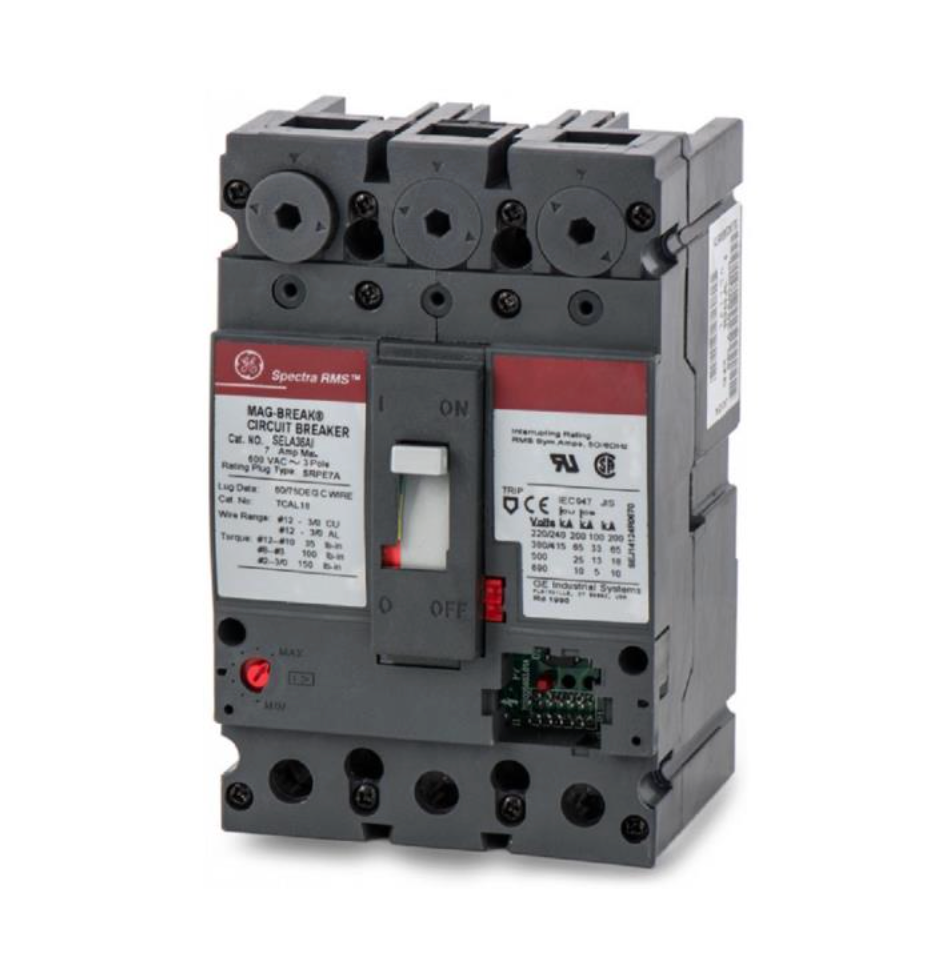

General Electric EZSFHA36AT0250 250A 3-Pole Circuit Breaker 600VAC Spectra RMS Solid-State
- Regular price
- $1,207.00
- Sale price
- $1,207.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EZSFHA36AT0250
Description
The General Electric EZSFHA36AT0250 is a solid-state molded case circuit breaker designed for advanced protection in industrial and commercial power distribution systems. Rated at 250 amps and 600 VAC, it provides precise overcurrent protection using RMS sensing technology. This breaker is engineered for reliable operation in three-phase applications requiring accurate fault detection and adjustable trip functionality.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | General Electric |
| Category | Electrical Products |
| Part Number | EZSFHA36AT0250 |
| Subcategory | Circuit Breakers |
| Series | Spectra RMS (SFHA Frame) |
| Type | Molded Case Circuit Breaker |
| Amperage | 250 A |
| Voltage Rating | 600 VAC |
| Poles | 3 |
| Phase | Three Phase |
| Interrupt Rating | 35kA @ 480V / 22kA @ 600V |
| Trip Unit | Solid-State RMS Electronic |
| Trip Functions | Long-Time, Short-Time, Instantaneous (LSI) |
| Mounting Type | Bolt-On |
| Connection Type | Bolt-On |
| Certifications | UL, CSA, CE, RoHS |
| Application | Industrial and commercial distribution |
| Weight | 57 lbs |
Information About EZSFHA36AT0250
The EZSFHA36AT0250 is part of General Electric’s Spectra RMS series, known for its digital solid-state trip systems and high-performance protection capabilities. It features a rugged molded case construction combined with electronic trip technology that accurately responds to both sinusoidal and non-sinusoidal currents. The breaker supports field-installable rating plugs, allowing flexible current adjustment without replacing the unit. Designed for bolt-on mounting, it integrates seamlessly into Spectra panelboards and switchgear for demanding electrical distribution environments.
Key Features:
- Solid-State Trip System: Uses RMS sensing technology for precise current monitoring and protection.
- 250 Amp Rating: Suitable for medium to high-load industrial and commercial circuits.
- 600 VAC Capacity: Designed for high-voltage three-phase distribution systems.
- 3-Pole Configuration: Provides full protection for three-phase electrical installations.
- Adjustable Protection Functions: Includes long-time, short-time, and instantaneous trip settings.
- High Interrupt Rating: Rated up to 35kA at 480V for safe fault interruption.
- Bolt-On Mounting: Ensures secure installation in panelboards and switchgear systems.
- Field-Replaceable Rating Plug: Allows flexible adjustment of current ratings without replacing the breaker.
The EZSFHA36AT0250 delivers the reliability and precision required for advanced circuit protection in industrial and commercial power distribution systems.
