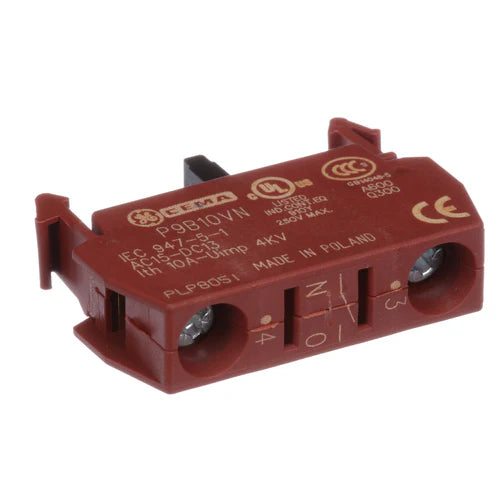

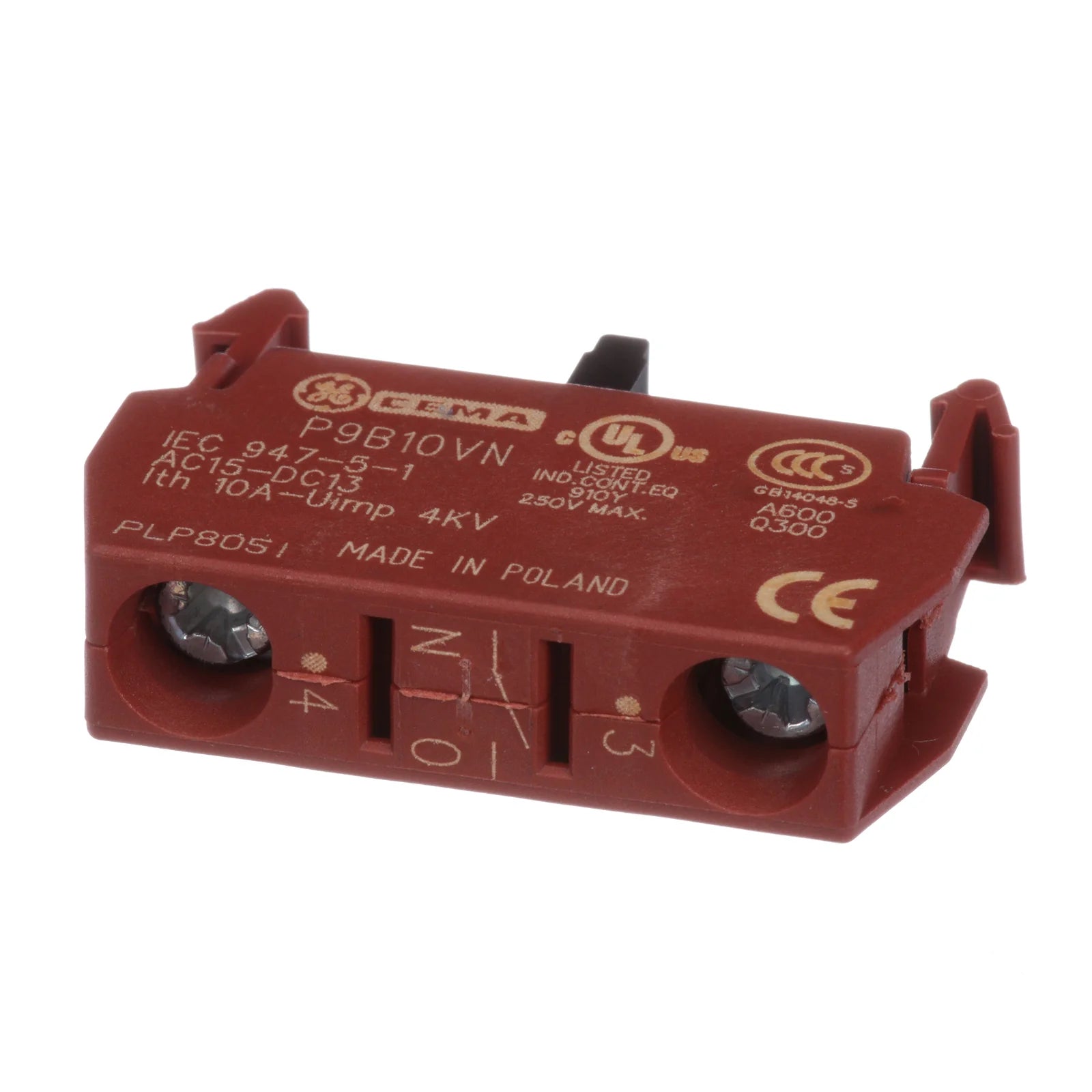

General Electric P9B10VN Front-Mount Auxiliary Contact Block
- Regular price
- $17.00
- Sale price
- $17.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: P9B10VN
Description
The General Electric P9B10VN is a front-mounted auxiliary contact block designed for General Electric P9 22 mm modular pilot devices and control stations. Featuring 1 normally open (NO) contact, it provides reliable auxiliary switching for industrial control, signaling, and motor control applications while allowing fast snap-on installation and secure screw terminal connections.
Technical Specifications
| Condition | New / Never Used Surplus |
| Brand | General Electric |
| Part Number | P9B10VN |
| Alternative Part Number | 1SFA187002R8001 |
| Category | Contactors & Starters |
| Subcategory | Auxiliary Contact Block |
| Series | P9 22 mm |
| Product Type | Front-Mounted Auxiliary Contact Block |
| Contact Configuration | 1 Normally Open (1 NO) |
| Mounting Method | Front Mount / Snap-On |
| Connection Type | Screw Connection |
| Terminal Type | Screw Terminals |
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Rated Operational Voltage | Up to 600 VAC |
| Rated Operational Current | 10 A |
| Rated Current (AC-15, 230 V) | 3 A |
| Protection Rating | IP20 |
| Housing Size | 22 mm |
| Contact Material | Silver-Plated Contacts |
| Operating Temperature | -30°C to +70°C |
| Storage Temperature | -40°C to +70°C |
| Dimensions (W × H × D) | 9.6 × 39.5 × 27.7 mm |
| Weight | 0.05 kg |
Information About P9B10VN
The P9B10VN is part of General Electric's P9 modular 22 mm pilot device series, engineered for heavy-duty industrial environments including manufacturing, mining, construction, and machine automation. The contact block is designed to expand the functionality of push buttons, selector switches, and other pilot devices by adding one normally open auxiliary contact. Its modular snap-on construction allows individual installation or replacement without disturbing adjacent components, reducing maintenance time. Built with silver-plated contacts and a self-cleaning contact mechanism, it ensures reliable low-energy switching and long service life in demanding industrial control systems.
Key Features:
- 1 Normally Open Contact: Provides one NO auxiliary switching contact.
- Front Snap-On Mounting: Enables quick installation on General Electric P9 22 mm pilot devices.
- Screw Terminal Connection: Ensures secure and dependable wiring.
- Silver-Plated Contacts: Improves conductivity and long-term reliability.
- Self-Cleaning Contact System: Maintains consistent switching performance.
- Compact 22 mm Design: Ideal for space-efficient control panel assemblies.
- IP20 Terminal Protection: Protects terminals during normal operation.
- Industrial Construction: Suitable for motor control, signaling, and automation systems.
The P9B10VN delivers the reliability and precision required for industrial control panels, operator stations, and motor control applications.
