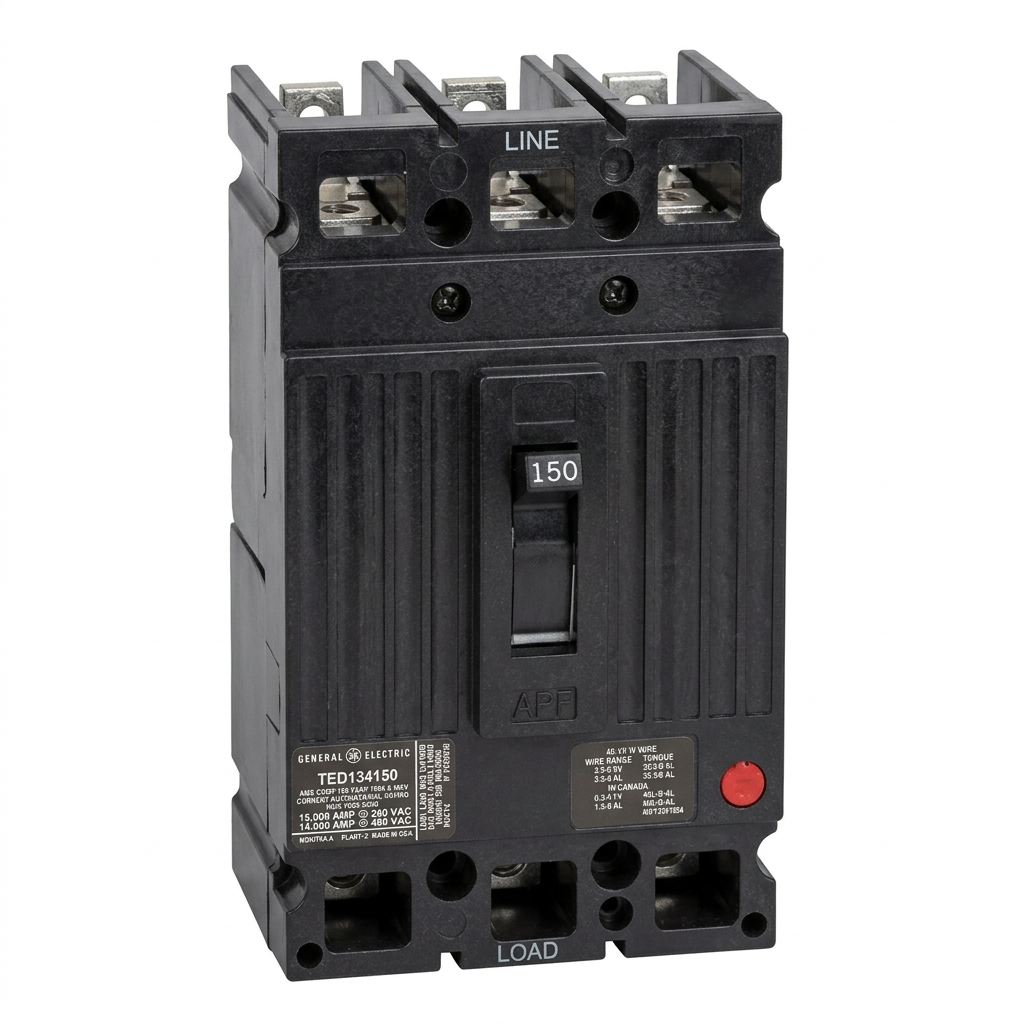

General Electric TED134150WL 150A 3P 480V Breaker W/Lugs
- Regular price
- $2,075.00
- Sale price
- $2,075.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: TED134150WL
Description
The General Electric TED134150WL is a heavy-duty thermal-magnetic molded case circuit breaker designed for reliable overcurrent and short-circuit protection in commercial and industrial electrical distribution systems. Rated for a continuous current of 150 Amps at up to 480V AC across 3 poles, this breaker ensures fast automatic tripping during electrical overload or fault conditions to safeguard downstream power circuits, panelboards, and connected equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | General Electric |
| Category | Circuit Breaker |
| Part Number | TED134150WL |
| Subcategory | Molded Case Circuit Breaker (MCCB) |
| Frame Type | E150 Frame / TED Series |
| Amperage Rating | 150 Amps |
| Voltage Rating | 480V AC |
| Poles | 3-Pole |
| Trip Unit Type | Non-Interchangeable Thermal-Magnetic |
| Terminals | Line and Load Lugs Included (W/LUGS) |
| Weight | 3.99 lbs |
Information About TED134150WL
The TED134150WL belongs to General Electric's trusted E150 frame series of thermal-magnetic circuit breakers.Weighing 1.81 kgs, it features a rugged, molded case construction housing precision bimetallic thermal elements for overload protection alongside instantaneous magnetic trip elements for severe short circuits. Factory-fitted with line and load side lugs (W/LUGS), it facilitates direct, secure aluminum or copper conductor connections during installation into switchboards, load centers, and control enclosures.
Key Features:
-
150 Amp Continuous Rating: Engineered to deliver stable full-load power distribution across 3-pole electrical networks.
-
480 VAC Voltage Capability: Rated for heavy commercial and industrial three-phase power applications up to 480V AC.
-
Thermal-Magnetic Protection: Integrates time-delay thermal tripping for overloads and instantaneous magnetic tripping for short circuits.
-
Factory-Installed Lugs: Comes equipped with terminal lugs (W/LUGS) for direct and robust wire termination.
-
Compact E150 Frame: Lightweight 1.81 kgs design allows straightforward mounting and efficient space utilization in distribution panels.
-
High Interrupting Capacity: Built to interrupt high fault currents safely, preventing catastrophic equipment damage.
-
Standardized Industrial Fit: Directly integrates into GE distribution panelboards and industrial switchgear assemblies.
-
Dependable Molded Housing: Durable frame material provides thermal endurance and high dielectric insulation strength.
The TED134150WL circuit breaker provides the mechanical durability, current capacity, and precise trip coordination required for continuous branch circuit protection.
